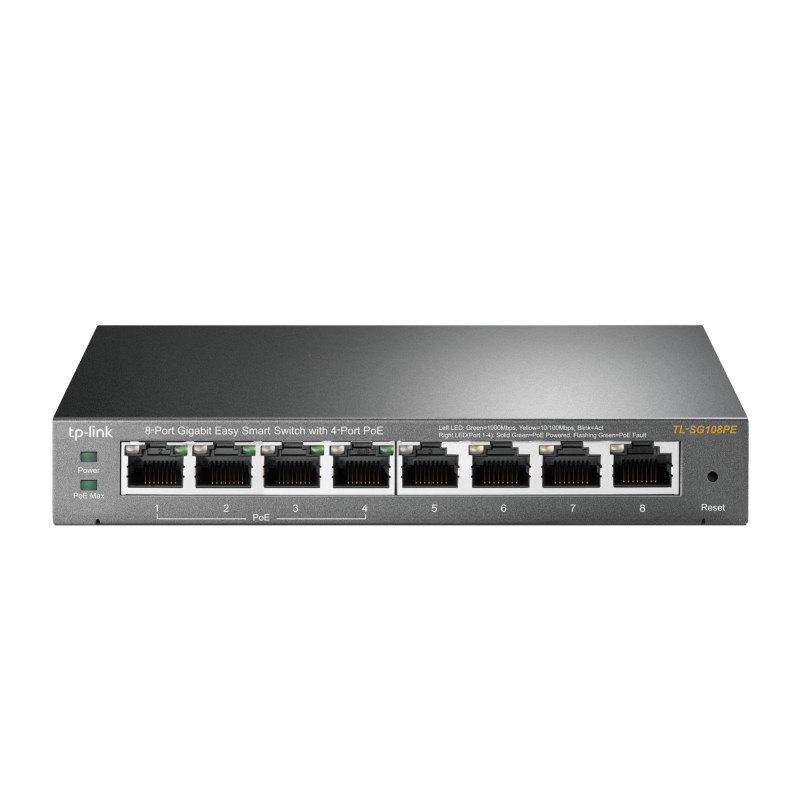

Switch TP-LINK PoE ports 4 TL-SG108PE

Data sheet

Vendor Homepage

https://www.tp-link.com/uk/business-networking/easy-smart-switch/tl-sg108pe/

Garantija

60

Model

TL-SG108PE

Category Code

SWI

Unit Box Height

0.13

Unit Box Length

0.195

Unit Box Width

0.125

Units per Shipping Box

1

Unit Calculated Volume

0.003169 cubm

Unit Calculated Weight

0.897 kg

Summary

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries,

Weight & dimensions (Width)

158 mm

Weight & dimensions (Depth)

101 mm

Weight & dimensions (Height)

25 mm

Packaging data (Package width)

131 mm

Packaging data (Package depth)

196 mm

Packaging data (Package height)

121 mm

Packaging data (Package weight)

890 g

Packaging content (Cables included)

AC

Power (Power source)

DC

Packaging data (Package type)

Box

Logistics data (Harmonized System (HS) code)

85176990

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (Power consumption (max))

65.2 W

Certificates (Certification)

FCC, CE, RoHS

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Power (Input current)

1.25 A

Packaging content (User guide)

Yes

Design (LED indicators)

Activity/Link/PoE/Power/Speed/Status

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Power (Input voltage)

48 V

Management features (Switch layer)

L2

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

8

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

11.9 Mpps

Data transmission (Switching capacity)

16 Gbit/s

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Broadcast storm control)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (VLAN support)

Yes

Network (Cable types supported)

Cat3/Cat4/Cat5/Cat5e/Cat6

Data transmission (MAC address table)

4000 entries

Data transmission (Packet buffer memory)

1.5 MB

Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity)

4

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

15000

Data transmission (Jumbo frames support)

Yes

Network (Auto-negotiation)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

256.19 BTU/h

Management features (Quality of Service (QoS) support)

Yes

Ports & interfaces (Gigabit Ethernet (copper) ports quantity)

8

Network (Number of VLANs)

32

Network (Virtual LAN features)

Port-based VLAN

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

64 W

Security (Loop protection)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

15.4 W

Security (IGMP snooping)

Yes

Specific References

EAN13

6935364094744

MPN

1189535
