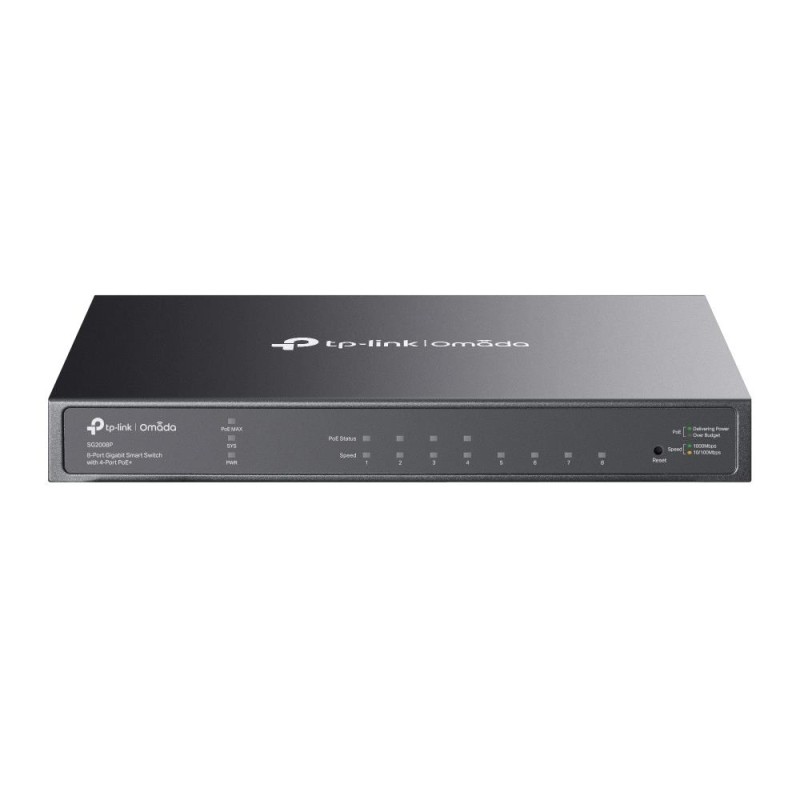

Switch TP-LINK Omada TL-SG2008P Type L2+ Desktop/pedestal 8x10Base-T / 100Base-TX / 1000Base-T PoE+ ports 4 62 Watts TL-SG2008P

Data sheet

Vendor Homepage

https://www.tp-link.com/en/business-networking/omada-switch-poe/sg2008p/

Model name

TL-SG2008P

Garantija

60

Series

Omada

Category Code

SWI

Unit Box Height

0.07

Unit Box Length

0.315

Unit Box Width

0.24

Units per Shipping Box

1

Unit Calculated Volume

0.005292 cubm

Unit Calculated Weight

1.28 kg

Summary

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 en

Weight & dimensions (Width)

209 mm

Weight & dimensions (Depth)

126 mm

Weight & dimensions (Height)

26 mm

Packaging data (Package type)

Box

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (Power consumption (max))

77.3 W

Certificates (Certification)

CE, FCC, RoHS

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (LED indicators)

Yes

Security (Security algorithms)

802.1x RADIUS

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Management features (Switch layer)

L2/L2+

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

8

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

11.9 Mpps

Data transmission (Switching capacity)

16 Gbit/s

Design (Rack mounting)

Yes

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (Spanning tree protocol)

Yes

Network (VLAN support)

Yes

Security (Authentication type)

RADIUS

Security (DHCP features)

DHCP client/DHCP relay/DHCP snooping/DHCPv6 server/DHCPv6 snooping

Data transmission (MAC address table)

8000 entries

Data transmission (Packet buffer memory)

4.1 MB

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

9000

Data transmission (Jumbo frames support)

Yes

Network (Auto-negotiation)

Yes

Operational conditions (Heat dissipation)

263.6 BTU/h

Security (MAC address filtering)

Yes

Performance (Fanless)

Yes

Management features (Quality of Service (QoS) support)

Yes

Network (Number of VLANs)

4094

Network (Rate limiting)

Yes

Security (IGMP snooping)

Yes

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

4

Management features (ARP inspection)

Yes

Management features (MIB support)

MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)

Management features (System event log)

Yes

Data transmission (Number of queues)

8

Security (Authentication)

MAC-based authentication,Web-based authentication

Multicast features (Multicast support)

Yes

Protocols (IPv4 & IPv6 features)

IPv6 ping/IPv6 Telnet/IPv6 tracert

Protocols (Management protocols)

SNMPv1/v2c/v3

Specific References

EAN13

6935364072957

MPN

1318014
