1xNumber of displays supported, Maximum weight capacity 36.4 kg, Minimum screen size 32 ", Maximum screen size 60 ", Minimum VESA mount 100 x 100 mm, Maximum VESA mount 400 x 400 mm, Mounting type Wall, Tilt adjustment Yes, Tilt angle range -2 - 10 °, Swivelling Yes, Distance to the wall (min) 42 mm, Colour Black, Housing material Steel,...
6031516, 8000 GB, 5400 RPM, 3.5 ", Read speed 85 MB/s, Write speed 75 MB/s, Buffer 32 MB, File format system FAT32, USB connector USB, USB version 3.2 Gen 1 (3.1 Gen 1), Colour Black, Housing material Plastic, Weight 650 g

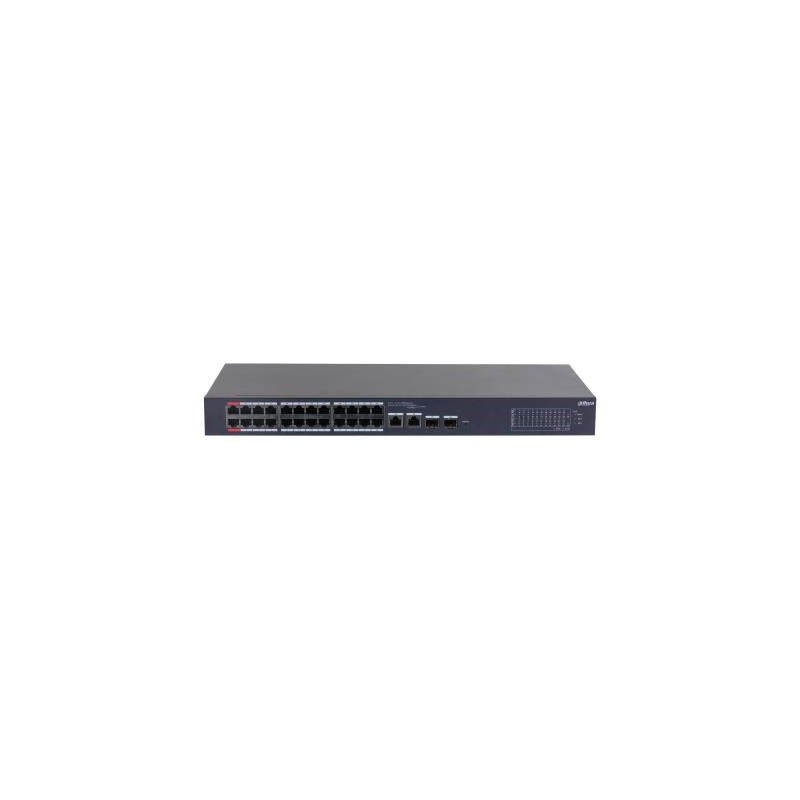

CS4226-24ET-240, Type Managed, Switch layer L2, Web-based management Yes, 26xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xSFP module slots quantity, Switching capacity 8.8 Gbit/s, Forwarding rate 6.55 Mpps, Rack mounting Yes, Product colour Black, Power source AC, Power supply included Yes, Power over Ethernet (PoE) Yes, Power over Ethernet (PoE) power per port 30 W, Total Power over Ethernet (PoE) budget 240 W, Width 220 mm, Depth 440 mm, Height 44 mm, Weight 2470 g
Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
Cloud Management Devices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sends notifications.
Network Topology Management Supports the LLDP protocol and is able to generate and display the network topology, so that you can quickly identify issues, and perform operation and maintenance remotely on devices that are in the topology.
BT 90W (Red Port) The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and HiPoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.
Long Distance PoE The transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).
PoE Watchdog Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.
Loop Protection When a loop is detected, the loop alarm will be triggered and the elimination mechanism will activate to prevent broadcast storms from occurring.
Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards
Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
4xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000), Yes, Product colour White, DIN rail mounting Yes, Power source DC/PoE, Power over Ethernet (PoE) Yes, Width 176 mm, Depth 128 mm, Height 35 mm
Type Unmanaged, Quality of Service (QoS) support Yes, 8xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Full duplex Yes, Switching capacity 16 Gbit/s, Forwarding rate 11.9 Mpps, Product colour Black, Power source DC, Power supply included Yes, Width 158 mm, Depth 101 mm,...
LS105LP, Type Unmanaged, Quality of Service (QoS) support Yes, 5xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100), Switching capacity 1 Gbit/s, Forwarding rate 0.744 Mpps, Product colour Black, Power source DC/PoE, Power supply included Yes, Power over Ethernet (PoE) Yes, 4xPower...
Type Unmanaged, Quality of Service (QoS) support Yes, 5xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Full duplex Yes, Switching capacity 10 Gbit/s, Forwarding rate 7.4 Mpps, Product colour Black, Power source DC, Power supply included Yes, Width 100 mm, Depth 98 mm,...
CS4226-24ET-240, Type Managed, Switch layer L2, Web-based management Yes, 26xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xSFP module slots quantity, Switching capacity 8.8 Gbit/s, Forwarding rate 6.55 Mpps, Rack mounting Yes, Product colour Black, Power source AC, Power supply included Yes, Power over Ethernet (PoE) Yes, Power over Ethernet (PoE) power per port 30 W, Total Power over Ethernet (PoE) budget 240 W, Width 220 mm, Depth 440 mm, Height 44 mm, Weight 2470 g
