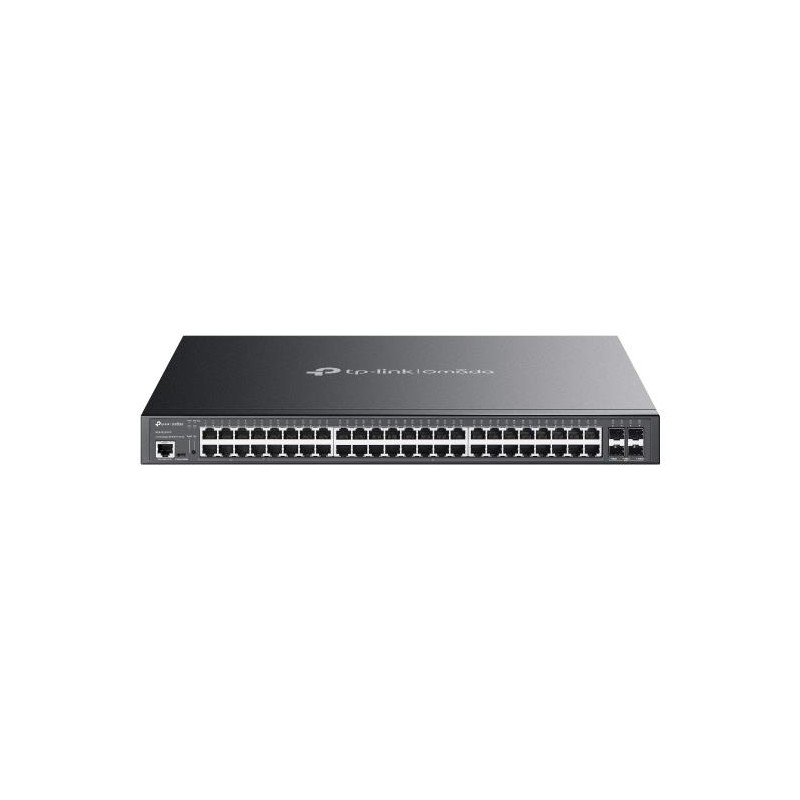

Switch TP-LINK Type L2+ Rack 4xSFP+

Data sheet

Vendor Homepage

https://www.tp-link.com/my/business-networking/omada-switch-l3-l2-managed/sg3452xmpp/ specifications

Model name

SG3452XMPP

Garantija

60

Category Code

SWI

Unit Box Height

0.48

Unit Box Length

0.53

Unit Box Width

0.1

Units per Shipping Box

1

Unit Calculated Volume

0.02544 cubm

Unit Calculated Weight

7 kg

Summary

TP-Link Omada SG3452XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entrie

Weight & dimensions (Width)

440 mm

Weight & dimensions (Depth)

330 mm

Weight & dimensions (Height)

44 mm

Packaging content (Quick start guide)

Yes

Packaging content (Cables included)

AC

Power (Power source)

AC

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

635.7 W

Design (Number of fans)

3 fan(s)

Certificates (Certification)

CE, FCC, RoHS

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (Form factor)

1U

Design (LED indicators)

Yes

Design (Reset button)

Yes

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z

Management features (Cloud-managed)

Yes

Management features (Switch layer)

L2+

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

48

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

Yes

Data transmission (Forwarding rate)

130.9 Mpps

Data transmission (Switching capacity)

176 Gbit/s

Design (Rack mounting)

Yes

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Ports & interfaces (SFP+ module slots quantity)

4

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (Spanning tree protocol)

Yes

Network (VLAN support)

Yes

Ports & interfaces (Power connector)

AC-in jack

Security (DHCP features)

DHCP client/DHCP relay/DHCP server

Data transmission (MAC address table)

16000 entries

Data transmission (Packet buffer memory)

12 MB

Ports & interfaces (Console port)

RJ-45/Micro-USB

Data transmission (Jumbo frames)

9000

Data transmission (Jumbo frames support)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

2169.2 BTU/h

Security (MAC address filtering)

Yes

Management features (Quality of Service (QoS) support)

Yes

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

750 W

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

30 W

Network (Rate limiting)

Yes

Security (IGMP snooping)

Yes

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

40

Management features (ARP inspection)

Yes

Management features (Configuring Location Settings (CLI))

Yes

Management features (System event log)

Yes

Network (Head-of-line (HOL) blocking)

Yes

Security (Access Control List (ACL))

Yes

Security (Authentication)

Auto VLAN,Guest VLAN

Security (BPDU filtering/protection)

Yes

Security (IP-MAC-Port binding)

Yes

Security (SSH/SSL support)

Yes

Security (Static port security)

Yes

Multicast features (Multicast support)

Yes

Power over Ethernet (PoE) (Power over Ethernet 4PPoE (PoE++) ports quantity)

8

Specific References

EAN13

8885020620870

MPN

1420718
