740617296068MEMORY DIMM 8GB PC25600 DDR4/KVR32N22S8/8 KINGSTON
  • 740617296068MEMORY DIMM 8GB PC25600 DDR4/KVR32N22S8/8 KINGSTON

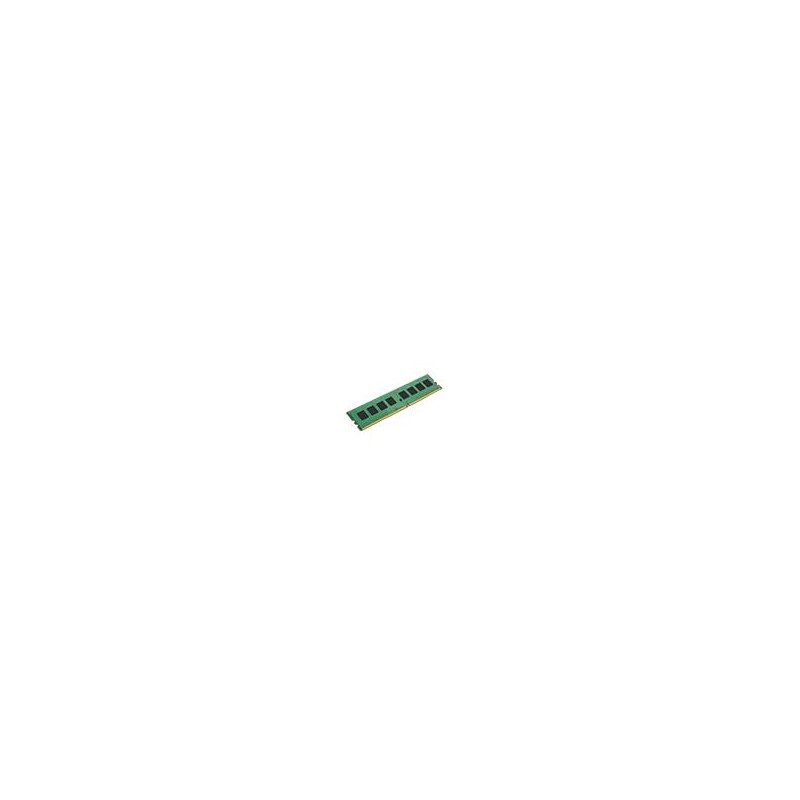

MEMORY DIMM 8GB PC25600 DDR4/KVR32N22S8/8 KINGSTON

KVR32N22S8/8
KINGSTON
DDR4 | 8 GB | Unregistered (unbuffered) | CL 22 | 1.2 V | 288-pin DIMM
€102.92
VAT included
Quantity
Last items in stock
1 Item

Description

ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • RoHS Compliant and Halogen-Free
Product Details
KINGSTON
KVR32N22S8/8
1 Item

Data sheet

Vendor Homepage
https://www.kingston.com/en
Garantija
X
Category Code
MEM
Unit Box Height
0.008
Unit Box Length
0.16
Unit Box Width
0.045
Units per Shipping Box
1
Unit Calculated Volume
5.76E-05 cubm
Unit Calculated Weight
0.03 kg
Summary
Kingston Technology ValueRAM . Component for: PC/Server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22
Weight & dimensions (Width)
133.35 mm
Weight & dimensions (Height)
31.25 mm
Logistics data (Harmonized System (HS) code)
84733020
Operational conditions (Operating temperature (T-T))
0 - 85 C
Operational conditions (Storage temperature (T-T))
-55 - 100 C
Technical details (Compliance certificates)
RoHS
Sustainability (Doesn't contain)
Halogen
Features (Country of origin)
Taiwan
Features (Buffered memory type)
Unregistered (unbuffered)
Features (CAS latency)
22
Features (Component for)
PC/Server
Features (ECC)
No
Features (Internal memory)
8 GB
Features (Internal memory type)
DDR4
Features (Memory form factor)
288-pin DIMM
Features (Memory layout (modules x size))
1 x 8 GB
Features (Memory voltage)
1.2 V
Features (JEDEC standard)
Yes
Features (Memory ranking)
1
Features (Memory data transfer rate)
3200 MT/s
Features (Lead plating)
Gold
Features (Module configuration)
1024M x 64
Features (Programming power voltage (VPP))
2.5 V
Features (Refresh row cycle time)
350 ns
Features (Row active time)
32 ns
Features (Row cycle time)
45.75 ns

Specific References

EAN13
740617296068
MPN
1277260
