4710713230552Power Supply|CHIEFTEC|400 Watts|PFC Active|APB-400B8
  • 4710713230552Power Supply|CHIEFTEC|400 Watts|PFC Active|APB-400B8

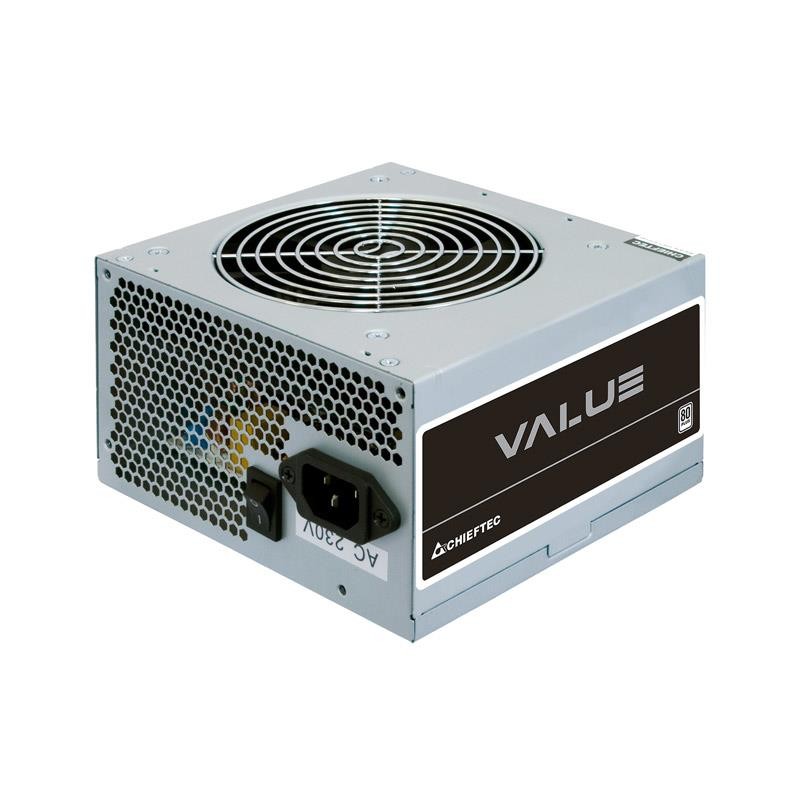

Power Supply|CHIEFTEC|400 Watts|PFC Active|APB-400B8

APB-400B8
CHIEFTEC
400 W | 200 - 240 V | 80 PLUS certification 80 PLUS | PC/Server | PS/2 | Fan diameter 120 mm
€30.55
VAT included
Monthly payment from 5.19€
Quantity
Laos
100 Items

Description

The APB-400B8 of the VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

  • 80PLUS 230V EU
Product Details
CHIEFTEC
APB-400B8
100 Items

Data sheet

Vendor Homepage
https://www.chieftec.eu/products-detail/181/VALUE_SERIES/249/APB-400B8
Garantija
24
Category Code
PSU
Unit Box Height
0.16
Unit Box Length
0.18
Unit Box Width
0.09
Units per Shipping Box
10
Unit Calculated Volume
0.004825 cubm
Unit Calculated Weight
1.28 kg
Summary
Chieftec Value APB-400B8. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power s
Weight & dimensions (Width)
140 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
87 mm
Logistics data (Harmonized System (HS) code)
84733020
Design (Product colour)
Silver
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
200 - 240 V
Design (Number of fans)
1 fan(s)
Certificates (Certification)
80PLUS 230V EU
Power (Input current)
3 A
Design (Fan diameter)
120 mm
Power (Combined power (+12V))
360 W
Power (Combined power (+3.3V))
100 W
Power (Combined power (+5V))
100 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
30 A
Power (Max output current (+3.3V))
17 A
Power (Max output current (+5V))
16 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over voltage/Overload/Short circuit/Under voltage
Power (Total power)
400 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
350 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
3
Ports & interfaces (Peripheral (Molex) power cable length)
150/350 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Ports & interfaces (SATA power cable length)
150/350 mm
Performance (80 PLUS certification)
80 PLUS
Performance (Power supply unit (PSU) form factor)
PS/2
Performance (Purpose)
PC/Server
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
1
Ports & interfaces (CPU power cable length)
350 mm
Ports & interfaces (PCI Express power cable length)
350 mm
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (EPS power connector (4+4 pin))
Yes
Ports & interfaces (Floppy disk drive connector)
Yes

Specific References

EAN13
4710713230552
MPN
1234708
