4260052189368Power Supply|BE QUIET|1300 Watts|Peak Power 1400 Watts|Efficiency 80 PLUS TITANIUM|PFC Active|MTBF 100000 hours|BN331
  • 4260052189368Power Supply|BE QUIET|1300 Watts|Peak Power 1400 Watts|Efficiency 80 PLUS TITANIUM|PFC Active|MTBF 100000 hours|BN331

Power Supply|BE QUIET|1300 Watts|Peak Power 1400 Watts|Efficiency 80 PLUS TITANIUM|PFC Active|MTBF 100000 hours|BN331

BN331
BE QUIET

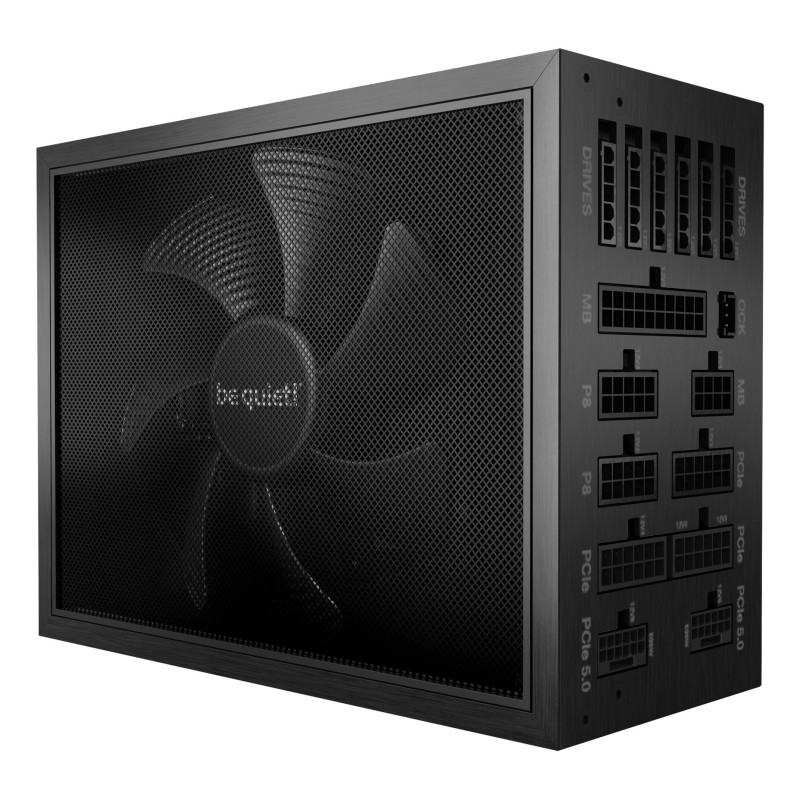

1300 W | 115 - 240 V | Efficiency 94.5 % | 80 PLUS certification 80 PLUS Titanium | PC | ATX | Noise level 23.2 dB | Fan diameter 135 mm | Weight 2.41 kg | Dark Power Pro 13 1300W
€448.32
VAT included
Quantity
Laos
8 Items

Description

CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.

  • 80 PLUS Titanium efficiency (up to 94.4%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions
  • Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
  • Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
  • Full mesh PSU front with funnel-shaped air inlet
  • Overclocking key switches between six 12V rails and one massive 12V rail
  • Japanese 105°C capacitors ensure highest stability and reliability
  • 2 PCIe 5.0 12VHPWR 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs
  • Aluminum case and modular individually sleeved cables for magnificent appearance
Product Details
BE QUIET
BN331
8 Items

Data sheet

Vendor Homepage
https://www.bequiet.com/en/powersupply/4394
Model name
Dark Power Pro 13 1300W
Garantija
24
Category Code
PSU
Unit Box Height
0.255
Unit Box Length
0.42
Unit Box Width
0.155
Units per Shipping Box
1
Unit Calculated Volume
0.0166 cubm
Unit Calculated Weight
6.6 kg
Summary
be quiet! Dark Power Pro 13 | 1300W. Total power: 1300 W, AC input voltage: 115 - 240 V, Peak power: 1400 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,600,750,800,900,950,1050 mm. Purpos
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
200 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
2410 g
Packaging data (Package width)
253 mm
Packaging data (Package depth)
417 mm
Packaging data (Package height)
152 mm
Packaging data (Package weight)
6800 g
Packaging content (Cables included)
CPU,PCIe,Peripheral (Molex),SATA
Certificates (Compliance certificates)
CCC/CE/Federal Communications Commission (FCC)/UKCA
Logistics data (Shipping (inner) case height)
283 mm
Logistics data (Shipping (inner) case length)
440 mm
Logistics data (Shipping (inner) case width)
325 mm
Design (Product colour)
Black
Power (AC input frequency)
50 - 60 Hz
Power (AC input voltage)
115 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Performance (Noise level)
23.2 dB
Power (Input current)
15 - 9 A
Design (Fan diameter)
135 mm
Logistics data (Products per shipping (inner) case)
2 pc(s)
Power (Combined power (+12V))
1300 W
Power (Combined power (+3.3V))
150 W
Power (Combined power (+5V))
150 W
Power (Combined power (+5Vsb))
17.5 W
Power (Combined power (-12V))
6 W
Power (Max output current (+3.3V))
25 A
Power (Max output current (+5V))
25 A
Power (Max output current (+5Vsb))
3.5 A
Power (Max output current (-12V))
0.5 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
1300 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
600 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
16
Ports & interfaces (Peripheral (Molex) power cable length)
1050/600/750/900 mm
Ports & interfaces (SATA power cable length)
1050/500/600/750/800/900/950 mm
Performance (80 PLUS certification)
80 PLUS Titanium
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Technical details (Sustainability compliance)
Yes
Logistics data (Warranty period)
10 year(s)
Power (Peak power)
1400 W
Performance (ATX version)
3.0
Power (Efficiency)
94.5 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
6
Performance (Bearing technology)
FDB
Performance (EPS version)
2.92
Ports & interfaces (CPU power cable length)
700 mm
Ports & interfaces (EPS power connector (8-pin))
Yes
Ports & interfaces (PCI Express power cable length)
600 mm
Power (Hold time)
18 ms
Power (Power factor)
0.99
Ports & interfaces (PCI Express connector)
Yes
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (EPS power connector (4+4 pin))
Yes
Power (Max output current (+12V1))
35 A
Power (Max output current (+12V2))
35 A
Ports & interfaces (Number of PATA power connectors)
5
Packaging content (Cable tie(s) included)
Yes
Power (Max output current (+12V3))
40 A
Power (Max output current (+12V4))
40 A
Logistics data (Shipping (inner) case net weight)
14400 g

Specific References

EAN13
4260052189368
MPN
1395830
