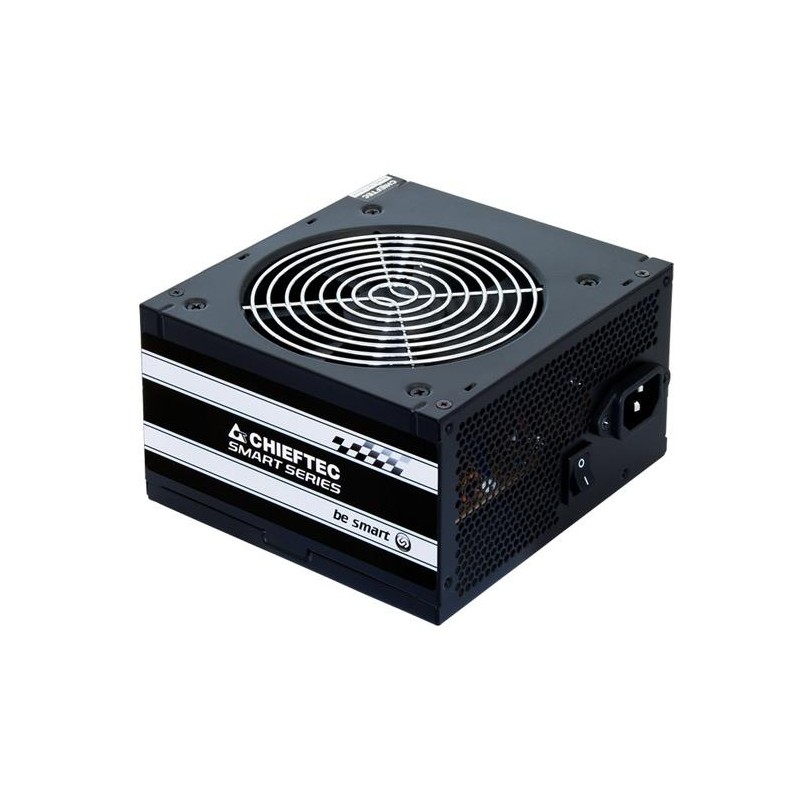

CASE PSU ATX 650W/GPS-650A8 CHIEFTEC

GPS-650A8
CHIEFTEC
650 W | 220 - 240 V | Efficiency 85 % | 80 PLUS certification 80 PLUS Bronze | Supported motherboard form factors ATX | PC | PS/2 | Fan diameter 120 mm | Package type Box
€47.23
VAT included
Monthly payment from 8.03€
Quantity
Laos
50 Items

Description

This new smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 85%, the GPS-650A8 fulfills the requirement of green power at an attractive price.

Product Details
CHIEFTEC
GPS-650A8
50 Items

Data sheet

Vendor Homepage
https://www.chieftec.eu/products-detail/178/SMART_SERIES/242/GPS-650A8
Garantija
24
Category Code
PSU
Unit Box Height
0.095
Unit Box Length
0.235
Unit Box Width
0.17
Units per Shipping Box
10
Unit Calculated Volume
0.005105 cubm
Unit Calculated Weight
1.81 kg
Summary
Chieftec GPS-650A8. Total power: 650 W, AC input voltage: 220 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, SATA power cable length: 150,500 mm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (P
Weight & dimensions (Width)
140 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
87 mm
Packaging content (Cables included)
AC,PCIe,Peripheral (Molex),SATA
Packaging data (Package type)
Box
Design (Product colour)
Black
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
220 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Certificates (Certification)
CE, CB, EAC, ErP, RoHS, interseroh, T V
Power (Input current)
5 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
600 W
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over power/Over voltage/Short circuit/Under voltage
Power (Total power)
650 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Ports & interfaces (SATA power cable length)
150/500 mm
Performance (80 PLUS certification)
80 PLUS Bronze
Performance (Power supply unit (PSU) form factor)
PS/2
Performance (Purpose)
PC
Performance (Supported motherboard form factors)
ATX
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Power (Efficiency)
85 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Ports & interfaces (EPS power connector (8-pin))
Yes
Ports & interfaces (PCI Express power cable length)
500 mm
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (PCI Express connector)
Yes
Ports & interfaces (Floppy disk drive connector)
Yes
Power (Max output current (+12V1))
50 A

Specific References

EAN13
4710713239562
MPN
1207537
