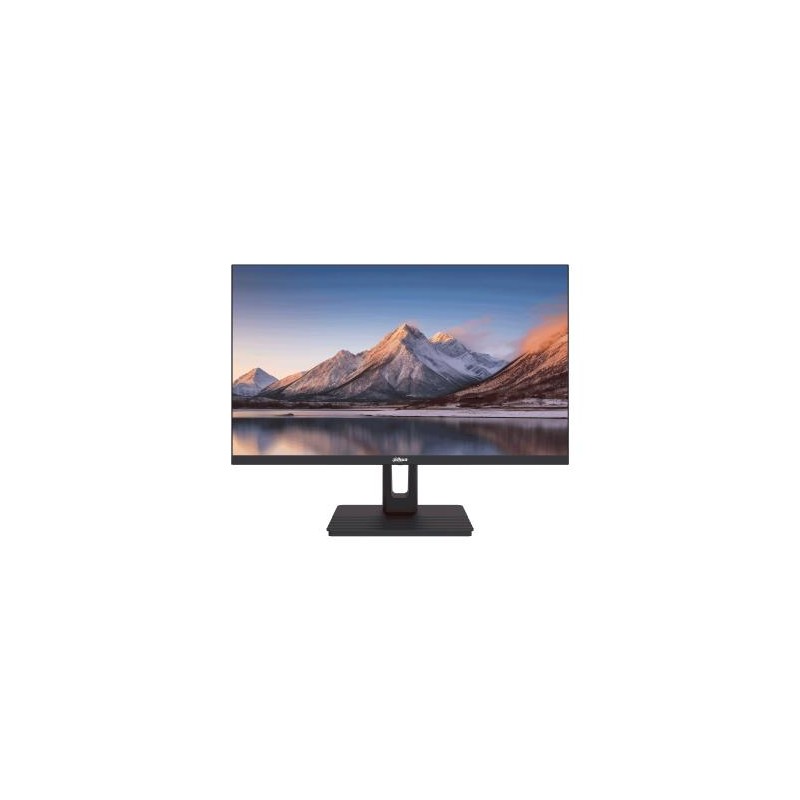

LCD Monitor|DAHUA|23.8 "|2560 x 1440 pixels|Quad HD|Native aspect ratio 16:9|LED|Flat|DHI-LM24-C301B

Data sheet

Vendor Homepage

https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM24-C301B V1

Garantija

36

Category Code

LC3

Unit Box Height

0.4

Unit Box Length

0.61

Unit Box Width

0.12

Unit Calculated Volume

0.02928 cubm

Product Net Weight

3.1 kg

Unit Calculated Weight

4.15 kg

CnCode

85285210

Energy Efficiency (Energy efficiency class)

F

Energy Efficiency (EPREL Registration Number)

2059227

Energy Efficiency (EPREL Version Number)

2

Energy Efficiency (Data Sheet (Link))

https://eprel.ec.europa.eu/api/product/2059227/fiches?language EN

Summary

Dahua Technology LM24-C301B. Display diagonal: 60.5 cm (23.8"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178 , Viewing angle, vertical: 17

Packaging data (Package width)

612 mm

Packaging data (Package depth)

111 mm

Packaging data (Package height)

405 mm

Packaging data (Package weight)

4000 g

Packaging content (Quick start guide)

Yes

Packaging content (Cables included)

HDMI

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-20 - 60 C

Ports & interfaces (Headphone out)

Yes

Display (Display diagonal)

23.8 "

Display (Display diagonal (metric))

61 cm

Display (Display resolution)

2560 x 1440 pixels

Display (Display technology)

LED

Display (HD type)

Quad HD

Display (Native aspect ratio)

16:9

Display (Screen shape)

Flat

Ports & interfaces (HDMI ports quantity)

1

Network (Bluetooth)

No

Network (Wi-Fi)

No

Design (Product colour)

Black

Power (Energy consumption (SDR) per 1000 hours)

21 kWh

Power (Energy efficiency class (HDR))

Not available

Power (Energy efficiency class (SDR))

F

Power (Energy efficiency scale)

A to G

Power (Power consumption (max))

24 W

Power (Power consumption (standby))

0.5 W

Power (Power consumption (typical))

24 W

Weight & dimensions (Depth (with stand))

190 mm

Weight & dimensions (Depth (without stand))

41.3 mm

Weight & dimensions (Height (with stand))

418.6 mm

Weight & dimensions (Height (without stand))

320.4 mm

Weight & dimensions (Weight (without stand))

3100 g

Weight & dimensions (Width (with stand))

539.2 mm

Weight & dimensions (Width (without stand))

539.2 mm

Display (LED backlight)

Yes

Design (Frameless design)

Yes

Display (Colour gamut standard)

NTSC

Display (Contrast ratio (typical))

1200:1

Display (Display brightness (typical))

300 cd/m

Display (Maximum refresh rate)

100 Hz

Display (Panel type)

IPS

Display (Response time)

5 ms

Display (Touchscreen)

No

Display (Viewing angle, horizontal)

178

Display (Viewing angle, vertical)

178

Performance (AMD FreeSync)

No

Performance (Low Blue Light technology)

Yes

Performance (NVIDIA G-SYNC)

No

Multimedia (Built-in camera)

No

Multimedia (Built-in speaker(s))

No

Design (Feet colour)

Black

Design (Market positioning)

Office

Ports & interfaces (Built-in USB hub)

No

Ports & interfaces (DisplayPort version)

1.2

Ports & interfaces (DisplayPorts quantity)

1

Ports & interfaces (HDMI)

Yes

Ports & interfaces (HDMI version)

1.4

Ergonomics (Panel mounting interface)

75 x 75 mm

Ergonomics (Tilt adjustment)

Yes

Ergonomics (Tilt angle range)

-5 - 15

Ergonomics (VESA mounting)

Yes

Ergonomics (Wall mountable)

Yes

Power (Power consumption (off))

0.3 W

Design (Detachable stand)

Yes

Ports & interfaces (Headphone connectivity)

3.5 mm

Power (Power supply type)

External

Packaging content (Power adapter included)

Yes

Packaging content (Stand included)

Yes

Display (Supported graphics resolutions)

2560 x 1440

Display (Supported video modes)

1440p

Packaging content (Manual)

Yes

Display (Backlight type)

Edge LED

Display (Colour depth)

8 bit

Display (Haze rate)

25 %

Display (NTSC coverage (typical))

85 %

Design (Front bezel colour)

Black

Ergonomics (Plug and Play)

Yes

Power (AC adapter output voltage)

12 V

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Weight & dimensions (Bezel width (bottom))

15.9 mm

Weight & dimensions (Bezel width (side))

3.1 mm

Weight & dimensions (Bezel width (top))

3.1 mm

Other features (Compliance certificates)

Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)

Design (Illuminated stand)

No

Other features (Automatic brightness control)

No

Specific References

EAN13

6939554921513

MPN

1451900
