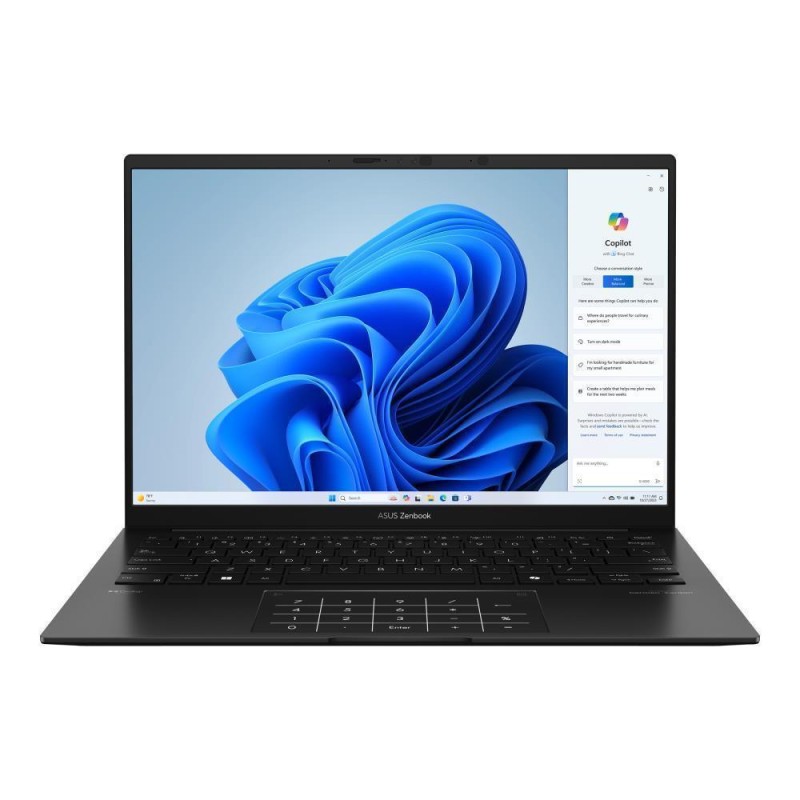

Notebook ASUS ZenBook Series 14 OLED UM3406KA-QD066W CPU AMD Ryzen AI 5 340 2000 MHz 14" 1920x1200 RAM 16GB LPDDR5x SSD 1TB AMD

Data sheet

Vendor Homepage

https://www.asus.com/laptops/for-home/zenbook/asus-zenbook-14-oled-um3406/

Model name

14 OLED

NB Family name

ZenBook Series

Garantija

24/12L

Category Code

NB

Unit Box Height

0.075

Unit Box Length

0.41

Unit Box Width

0.28

Units per Shipping Box

1

Unit Calculated Volume

0.00861 cubm

Unit Calculated Weight

2.4 kg

Summary

ASUS Zenbook 14 OLED UM3406KA-QD066W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 5, Processor model: 340, Processor frequency: 2 GHz. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels

Battery (Battery technology)

Lithium-Ion (Li-Ion)

Weight & dimensions (Width)

312.4 mm

Weight & dimensions (Depth)

220.1 mm

Weight & dimensions (Height)

14.9 mm

Weight & dimensions (Weight)

1200 g

Packaging content (AC adapter included)

Yes

Power (USB Type-C required charging power (max))

65 W

Power (USB Type-C required charging power (min))

45 W

Power (USB Type-C charging port)

Yes

Battery (Battery capacity)

75 Wh

Certificates (Compliance certificates)

REACH

Sustainability (Sustainability certificates)

ENERGY STAR/EPEAT Gold

Display (Display diagonal)

14 "

Display (Display resolution)

1920 x 1200 pixels

Display (HD type)

WUXGA

Display (Native aspect ratio)

16:10

Ports & interfaces (HDMI ports quantity)

1

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

No

Network (Wi-Fi standards)

Wi-Fi 6E (802.11ax)

Design (Product colour)

Black

Design (Housing material)

Aluminium

Display (Contrast ratio (typical))

1000000:1

Display (Display number of colours)

1.07 billion colours

Display (Maximum refresh rate)

60 Hz

Display (Panel type)

OLED

Display (Touchscreen)

No

Design (Market positioning)

Home

Ports & interfaces (HDMI version)

2.1

Display (High Dynamic Range (HDR) supported)

Yes

Display (High Dynamic Range (HDR) technology)

DisplayHDR True Black 600

Display (Colour gamut)

100 %

Display (Display surface)

Gloss

Ports & interfaces (USB Type-C DisplayPort Alternate Mode)

Yes

Processor (Processor frequency)

2 GHz

Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

1

Design (Colour name)

Jade Black

Power (AC adapter output voltage)

20 V

Design (Form factor)

Clamshell

Power (AC adapter frequency)

50 - 60 Hz

Power (AC adapter input voltage)

100 - 240 V

Power (AC adapter output current)

3.25 A

Power (AC adapter power)

65 W

Memory (Internal memory)

16 GB

Audio (Audio system)

Smart Amp

Display (Display brightness)

400 cd/m

Power (USB Power Delivery (USB PD))

Yes

Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Ports & interfaces (Combo headphone/mic port)

Yes

Storage (SSD form factor)

M.2

Processor (Processor family)

AMD Ryzen AI 5

Processor (Processor manufacturer)

AMD

Camera (Front camera)

Yes

Software (Operating system installed)

Windows 11 Home

Audio (Built-in microphone)

Yes

Processor (Processor model)

340

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Processor (Processor cores)

6

Memory (Internal memory type)

LPDDR5x-SDRAM

Storage (Storage media)

SSD

Network (Mobile network connection)

No

Processor (Processor boost frequency)

4.8 GHz

Security (Face recognition)

Yes

Processor (Processor cache type)

L2 & L3

Processor (Processor generation)

AMD Ryzen AI 300 Series

Processor (Processor threads)

12

Memory (Maximum internal memory)

16 GB

Storage (Number of SSDs installed)

1

Storage (NVMe)

Yes

Storage (Optical drive type)

No

Storage (SSD capacity)

1000 GB

Storage (SSD interface)

PCI Express 4.0

Storage (Total SSDs capacity)

1000 GB

Storage (Total storage capacity)

1000 GB

Graphics (Discrete graphics card)

No

Graphics (Discrete graphics card model)

Not available

Graphics (On-board GPU manufacturer)

AMD

Graphics (On-board graphics card)

Yes

Graphics (On-board graphics card family)

AMD Radeon

Graphics (On-board graphics card model)

AMD Radeon 840M

Network (Antenna type)

2x2

Software (Operating system architecture)

64-bit

Neural processor unit (NPU) (Neural processor unit (NPU))

AMD Ryzen AI

Neural processor unit (NPU) (NPU performance up to)

50 TOPs

Neural processor unit (NPU) (Total processor performance up to)

59 TOPs

Software (Trial software)

1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days

Security (Password protection)

Yes

Display (Maximum display brightness (HDR))

600 cd/m

Camera (Front camera resolution)

1920 x 1080 pixels

Keyboard (Numeric keypad)

No

Keyboard (Pointing device)

NumberPad

Battery (Number of battery cells)

4

Design (Product type)

Laptop

Audio (Speakers manufacturer)

Harman Kardon

Camera (Front camera HD type)

Full HD

Camera (Privacy camera)

Yes

Camera (Privacy type)

Privacy shutter

Keyboard (Copilot key)

Yes

Keyboard (Keyboard backlit)

Yes

Security (Trusted Platform Module (TPM))

Yes

Display (RGB colour space)

DCI-P3

Memory (Memory form factor)

On-board

Camera (Infrared (IR) camera)

Yes

Ports & interfaces (USB4 Gen 3x2 ports quantity)

1

Security (Windows Hello)

Yes

Processor (L2 cache)

6 MB

Processor (L3 cache)

16 MB

Security (Password protection type)

BIOS/User

Display (Display response rise/fall)

0.2 ms

Design (Certified refurbished)

No

Neural processor unit (NPU) (Copilot+ PC)

No

Performance (Repairability index)

9.4

Software (Microsoft Copilot)

Yes

Packaging content (Bag included)

Yes

Specific References

EAN13

4711636281348

MPN

1448250
