TV SET ACC WALL MOUNT/WL40S-910BL16 NEOMOUNTS

Data sheet

Vendor Homepage

https://www.neomounts.com/default.asp?pageid 44&artdetail WL40S-910BL16

Garantija

60

Category Code

TMS

Unit Box Height

0.39

Unit Box Length

0.755

Unit Box Width

0.1

Units per Shipping Box

1

Unit Calculated Volume

0.02944 cubm

Unit Calculated Weight

11.3 kg

Summary

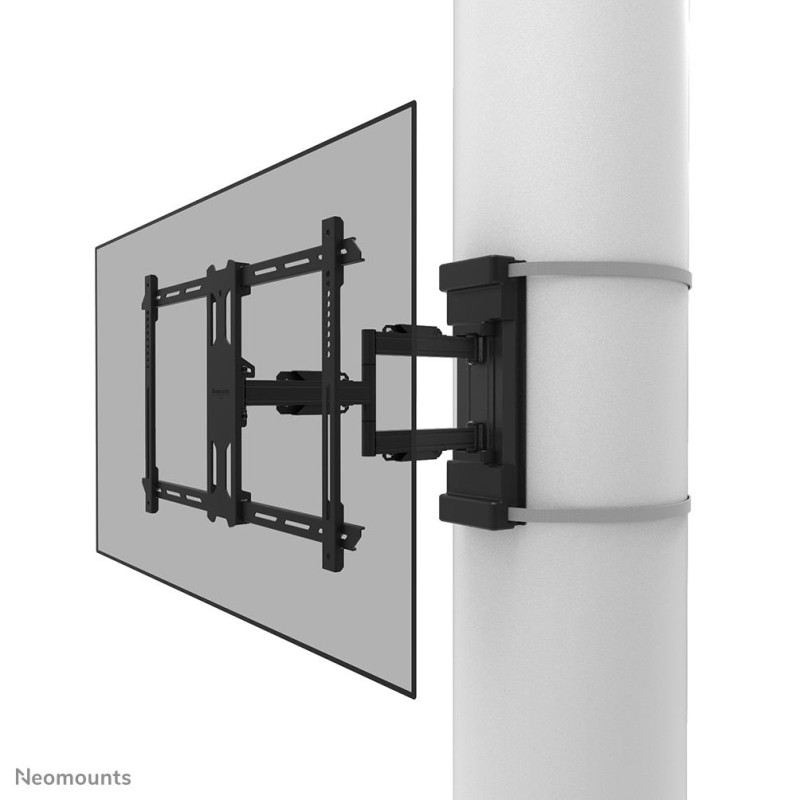

Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm. Maximum weight capacity: 45 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. T

Weight & dimensions (Width)

710 mm

Weight & dimensions (Depth)

590 mm

Weight & dimensions (Height)

520 mm

Weight & dimensions (Weight)

9500 g

Packaging data (Package width)

386 mm

Packaging data (Package depth)

95 mm

Packaging data (Package height)

744 mm

Packaging data (Package weight)

11100 g

Logistics data (Harmonized System (HS) code)

7326909890

Logistics data (Master (outer) case gross weight)

22800 g

Logistics data (Master (outer) case height)

764 mm

Logistics data (Master (outer) case length)

406 mm

Logistics data (Master (outer) case width)

205 mm

Logistics data (Products per master (outer) case)

2 pc(s)

Technical details (Warranty period)

5 year(s)

Design (Product colour)

Black

Design (Housing material)

Steel

Ergonomics (Tilt adjustment)

Yes

Ergonomics (Tilt angle range)

-2 - 12

Ergonomics (Pivot angle)

-3 - 3

Ergonomics (Swivel angle range)

-45 - 45

Ergonomics (Swivelling)

Yes

Packaging content (Mounting kit)

Yes

Ergonomics (Cable management)

Yes

Logistics data (Products per pallet (EU))

34 pc(s)

Logistics data (Master (outer) case net weight)

19000 g

Mounting (Maximum screen size)

70 "

Mounting (Maximum VESA mount)

600 x 400 mm

Mounting (Maximum weight capacity)

45 kg

Mounting (Maximum weight capacity (per display))

45 kg

Mounting (Minimum screen size)

40 "

Mounting (Minimum VESA mount)

200 x 100 mm

Mounting (Mounting type)

Pole

Mounting (Number of displays supported)

1

Mounting (Panel mounting interface)

200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/600 x 200/600 x 300/600 x 400 mm

Ergonomics (Angle of rotation)

6

Ergonomics (Rotating)

Yes

Ergonomics (Adjustable depth)

Yes

Ergonomics (Distance to the wall (max))

590 mm

Ergonomics (Type)

Full motion

Technical details (Country of origin)

China

Technical details (Package net weight)

11100 g

Weight & dimensions (Depth (max))

590 mm

Weight & dimensions (Depth (min))

82 mm

Technical details (Lockable)

Not lockable

Other features (Depth adjustment range)

82 - 590 mm

Ergonomics (Distance to the wall (min))

82 mm

Technical details (Compatible pole diameter (max))

1000 mm

Technical details (Compatible pole diameter (min))

250 mm

Specific References

EAN13

8717371449544

MPN

1389324
