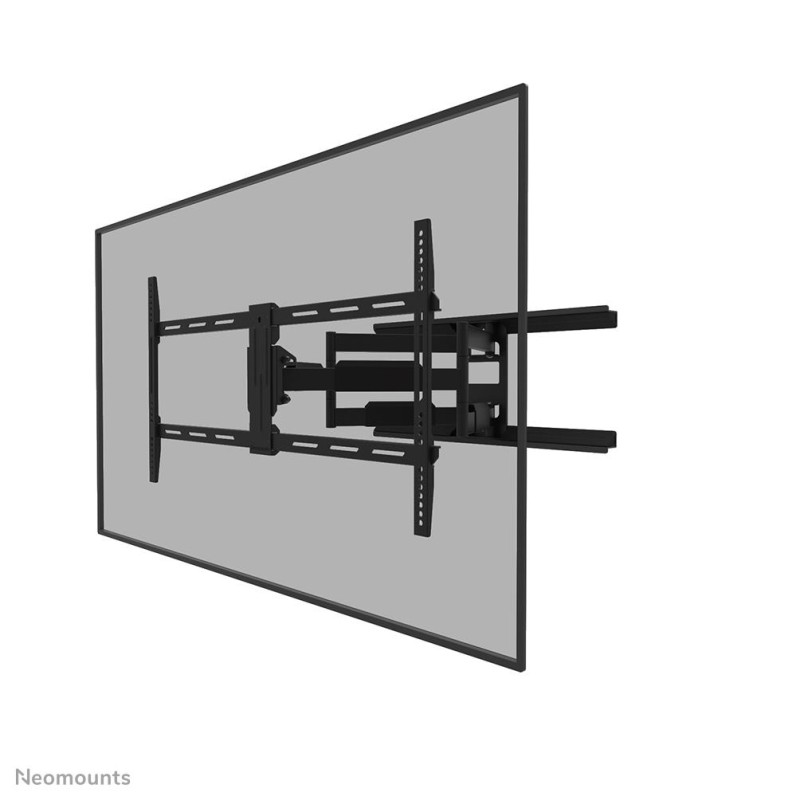

TV SET ACC WALL MOUNT/WL40-550BL18 NEOMOUNTS

Data sheet

Vendor Homepage

https://www.neomounts.com/default.asp?pageid 44&artdetail WL40-550BL18

Garantija

60

Category Code

TMS

Unit Box Height

0.34

Unit Box Length

0.895

Unit Box Width

0.065

Units per Shipping Box

2

Unit Calculated Volume

0.02354 cubm

Unit Calculated Weight

12.4 kg

Summary

Neomounts WL40-550BL18 TV mount wall 43-75" - full motion - easy install. Maximum weight capacity: 45 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 800 x 400 mm. Tilt an

Weight & dimensions (Width)

850 mm

Weight & dimensions (Depth)

55 mm

Weight & dimensions (Height)

436 mm

Weight & dimensions (Weight)

9900 g

Packaging data (Package width)

882 mm

Packaging data (Package depth)

340 mm

Packaging data (Package height)

65 mm

Packaging data (Package weight)

11700 g

Logistics data (Harmonized System (HS) code)

7326909890

Logistics data (Master (outer) case gross weight)

24000 g

Logistics data (Master (outer) case height)

360 mm

Logistics data (Master (outer) case length)

145 mm

Logistics data (Master (outer) case width)

902 mm

Logistics data (Products per master (outer) case)

2 pc(s)

Design (Product colour)

Black

Design (Housing material)

Steel

Ergonomics (Height adjustment)

No

Ergonomics (Tilt adjustment)

Yes

Ergonomics (Tilt angle range)

-3 - 15

Ergonomics (Pivot angle)

-3 - 3

Ergonomics (Swivel angle range)

0 - 54

Ergonomics (Swivelling)

Yes

Packaging content (Mounting kit)

Yes

Ergonomics (Cable management)

Yes

Logistics data (Products per pallet (EU))

40 pc(s)

Logistics data (Master (outer) case net weight)

22100 g

Mounting (Maximum screen size)

75 "

Mounting (Maximum VESA mount)

800 x 400 mm

Mounting (Maximum weight capacity)

45 kg

Mounting (Maximum weight capacity (per display))

45 kg

Mounting (Minimum screen size)

43 "

Mounting (Minimum VESA mount)

200 x 100 mm

Mounting (Mounting type)

Wall

Mounting (Number of displays supported)

1

Mounting (Panel mounting interface)

200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400/680 x 300/800 x 200/800 x 400 mm

Ergonomics (Angle of rotation)

6

Ergonomics (Rotating)

Yes

Ergonomics (Swivel angle)

54

Ergonomics (Distance to the wall (max))

710 mm

Technical details (Quantity per pack)

1 pc(s)

Ergonomics (Type)

Full motion

Technical details (Country of origin)

China

Technical details (Package net weight)

11700 g

Weight & dimensions (Depth (max))

55 mm

Technical details (Lockable)

Not lockable

Ergonomics (Distance to the wall (min))

55 mm

Specific References

EAN13

8717371448769

MPN

1363390
