Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
4 Signals over 1 Coaxial Cable HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras.
Long Distance Transmission HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.* *Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of con-figuring a network.
Smart IR The camera is designed with array LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
Multi-formats The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs.
Multi-language OSD OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.
Protection The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments.The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in).With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments.Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

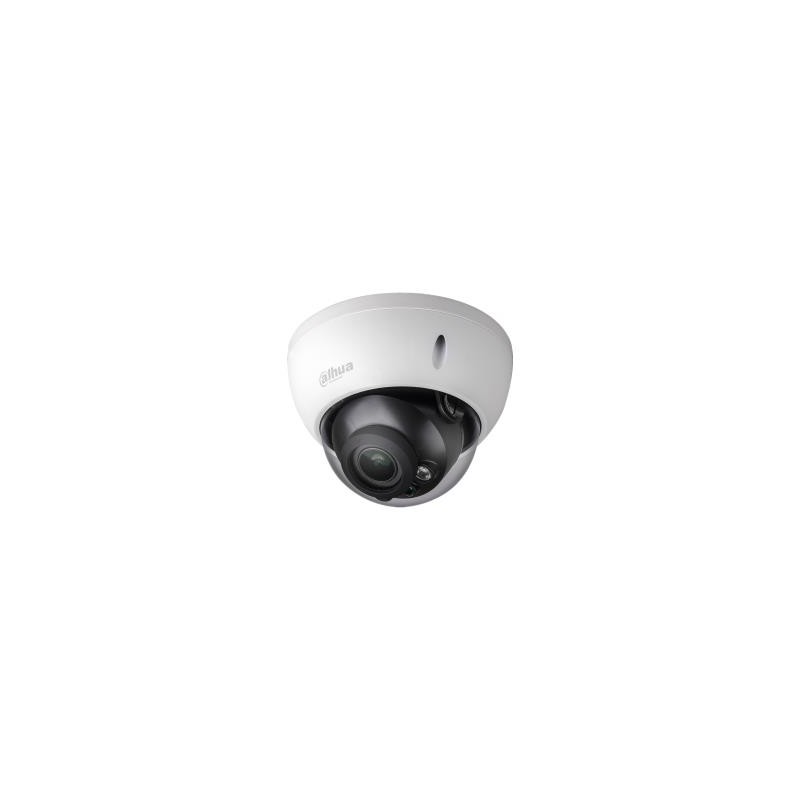

Dome | Ceiling | White | IP security camera | Wired | Placement Indoor & outdoor | Sensor type CMOS | Night vision Yes | Total megapixels 8 MP | Ethernet LAN Yes | Cloud-managed Yes | Power source type DC,PoE | Weight 2.17 kg | 1xNumber of cameras
Dome, Ceiling, Black, IP security camera, Wired, Placement Indoor & outdoor, Sensor type CMOS, Night vision Yes, Total megapixels 5 MP, Ethernet LAN Yes, Cloud-managed Yes, Power source type DC,PoE, Weight 712.9 g, 1xNumber of cameras
Bullet, Ceiling/wall, White, IP code IP67, IP security camera, Wired, Placement Indoor & outdoor, Wide Dynamic Range (WDR) Yes, Day/night mode Yes, Alarm input/output Yes, Pan range 0 - 360 °, White balance Auto/Manual/Natural/Outdoor, Camera shutter type Electronic, Optical sensor size 1/1.8 ", Sensor type CMOS, Night vision Yes,...
Bullet, Wall, White, IP code IP67, IP security camera, Wired, Placement Indoor & outdoor, People counting function Yes, Wide Dynamic Range (WDR) Yes, Day/night mode Yes, Alarm input/output Yes, Pan range 0 - 360 °, White balance Auto/Manual/Natural/Outdoor/Regional custom/Street lamp, Camera shutter type Electronic, Optical sensor size...
