Description

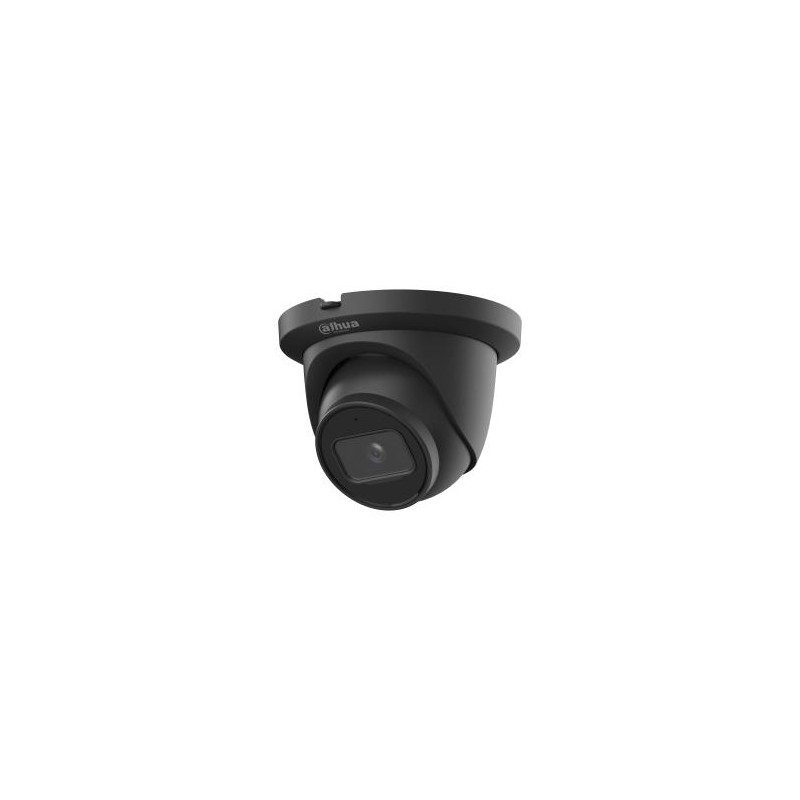

5MP IR Fixed-focal Eyeball WizMind Network Camera
5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image Outputs max. 5 MP (2960 × 1668) @25/30fps Built-in IR LED, and the max. illumination distance is 50 m ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC 12 VDC/PoE power supply; ePoE IP67 protection SMD 3.0
Product Details
Reference
HDW5541TM-ASE-0280B-S3B
In stock
8 Items
Data sheet
Vendor Homepage
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/5MP/IPC-HDW5541TM-ASE S3
Garantija
36
Model
IPC-HDW5541TM-ASE-0280B-S3-B
Category Code
FNC
Unit Box Height
0.135
Unit Box Length
0.15
Unit Box Width
0.14
Units per Shipping Box
1
Unit Calculated Volume
0.002835 cubm
Unit Calculated Weight
0.718 kg
Summary
Dahua Technology IPC-HDW5541TM-ASE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 360 ,
Weight & dimensions (Height)
93.6 mm
Weight & dimensions (Weight)
550 g
Packaging data (Package weight)
710 g
Performance (Certification)
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Operational conditions (Operating temperature (T-T))
-30 - 60 C
Operational conditions (Storage temperature (T-T))
-30 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
106 mm
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
Black
Power (Power consumption (typical))
7.2 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 s-1/100000 s s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Infrared (IR) cut-off filter)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, horizontal)
102
Camera (Lens viewing angle, vertical)
71
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
50 m
Video (Frame rate)
60 fps
Video (Maximum resolution)
2592 x 1944 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
5 MP
Security (Intelligent Video Surveillance (IVS) system features)
Crossing line/Heat map/Intrusion/People counting/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Number of effective pixels (H x V))
2592 x 1944 pixels
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
2.8 mm
Camera (Minimum illumination)
0.005 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1.6
Video (Flip & mirror)
Yes
Video (Gain control type)
Auto/Manual
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 78
Camera (White balance)
Auto/Lamp/Manual/Natural/Outdoor
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2592 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Video (Video streaming)
Yes
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast/Unicast
Network (Supported network protocols)
IPv4 IPv6 HTTP HTTPS TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE 802.1x SNMP
Storage (Internal memory)
512 MB
Storage (ROM capacity)
128 MB
Management features (Web browser)
Yes
Night vision (Number of illumination LEDs)
2
Network (Number of users)
20 user(s)
Video (Bit rate)
32 Kbps-8192 Kbps
Audio (Voice codecs)
AAC/G.711a/G.711Mu/G.723/G.726
Network (Networking standards)
IEEE 802.3af
Specific References
EAN13
6923172578686
MPN
1396872
