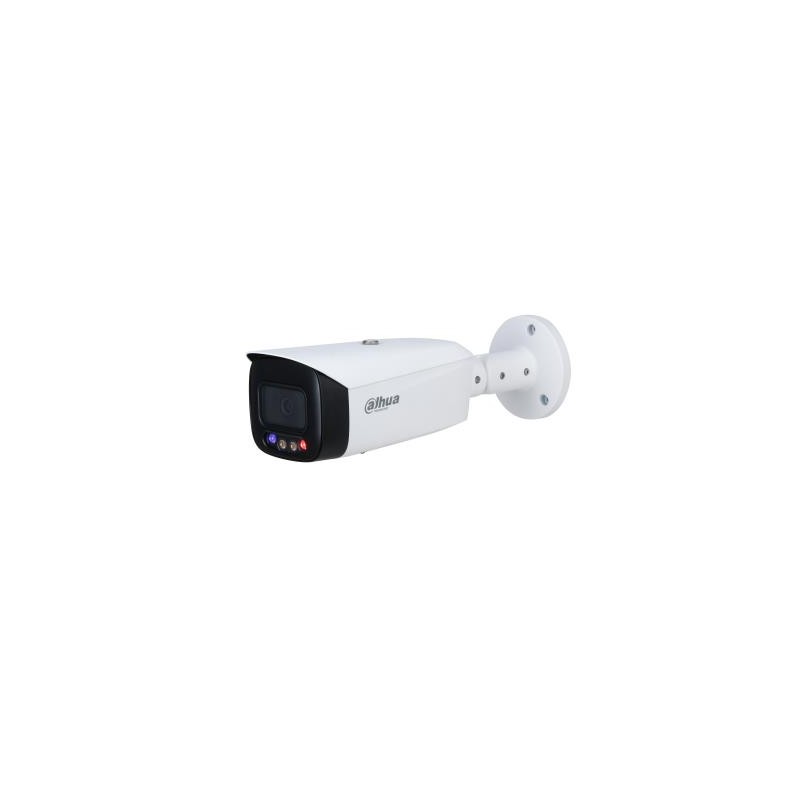

Type HDTV/Megapixel/Outdoor | Resolution 5 Mega Pixel | IR Illumination | Sensor size 1/2.7 | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0003 Lux | Effective pixels 2960 (H) × 1688 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour White | Dimensions 288.4 × 94.4 × 84.7 mm
> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 ×1668) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
Tapo C545D | Sensor size 1/2.8“ Progressive Scan CMOS Sensor | Resolution 3 Mega Pixel | Microphone Built-in | Supports card capacities up to 512GB | Power options 12V | Power supply requirements 12 V DC Power Adapter | Colour White | Dimensions 114.57 × 159.55 × 152.1 mm | box quantity 1
Type HDTV/Megapixel/PTZ | Resolution 2 Mega Pixel | Focal Length 2.7 mm–11 mm | Optical Zoom 4 x | Sensor size 1/2.8" CMOS | Min. Illumination 0.0005 Lux | Effective pixels 1920 (H) × 1080 (V) | Electronic Shutter Speed 1/3 s–1/30,000 s | Power supply requirements 12VDC,1.5 A ± 10% | Operating temperature range –30 °C to +60 °C | Colour White | Dimensions...
Type HDTV/Megapixel/Outdoor | Resolution 2 Mega Pixel | Focal Length 3-9 мм | IR Illumination | Sensor size 1/2.8” progressive scan RGB CMOS | Min. Illumination 0.01 Lux | Electronic Shutter Speed 1/66500 s to 2 s | Power options PoE/12V | Power supply requirements Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 Typical: 7.7 W, max 12.95 W |...
Type Fixed/Outdoor | Resolution 8 Mega Pixel | IR Illumination | Sensor size 1/1.8" CMOS | Microphone Built-in | Lens Mount M16 | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 122.0 mm × 116.1 mm
Resolution 8 Mega Pixel | IR Illumination | Sensor size 1/2.8" | Supports card capacities up to 256GB | Power supply requirements 12V±25% | Environment Outdoor | Operating temperature range -30°C to 60°C | Colour White | Dimensions 245 x 86 x 72 mm
Type HDTV/Megapixel/Outdoor | Resolution 5 Mega Pixel | IR Illumination | Sensor size 1/2.7 | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0003 Lux | Effective pixels 2960 (H) × 1688 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour White | Dimensions 288.4 × 94.4 × 84.7 mm
