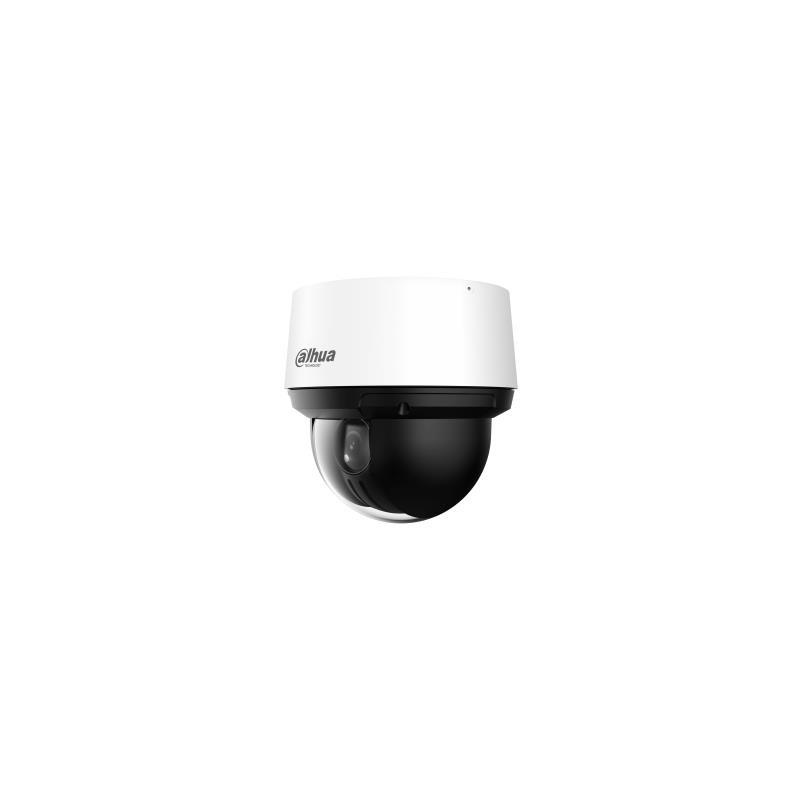

NET CAMERA 4MP IR PTZ DOME/SD4A425DB-HNY DAHUA

Data sheet

Vendor Homepage

https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD4/SD4A425DB-HNY

Garantija

36

Category Code

FNC

Unit Box Height

0.29

Unit Box Length

0.225

Unit Box Width

0.21

Units per Shipping Box

1

Unit Calculated Volume

0.0137 cubm

Unit Calculated Weight

3.21 kg

Summary

Dahua Technology SD4A425DB-HNY. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Spherical. Minimum illumination: 0.0005 lx, Lens viewing angle, ho

Weight & dimensions (Height)

170.4 mm

Weight & dimensions (Weight)

2500 g

Packaging data (Package weight)

3200 g

Operational conditions (Operating temperature (T-T))

-40 - 65 C

Weight & dimensions (Diameter)

171.1 mm

Audio (Audio output channels)

1.0 channels

Network (Ethernet LAN)

Yes

Design (Product colour)

White

Power (Power consumption (typical))

9.5 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Spherical

Camera (Camera shutter speed)

1 - 1/30000 s

Power (Power source type)

DC,PoE

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Storage (RAM capacity)

512 MB

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP66

Design (Mounting type)

Ceiling

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

63.1

Camera (Lens viewing angle, horizontal)

51.9

Camera (Lens viewing angle, vertical)

39.7

Image sensor (Optical sensor size)

1/2.8 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

100 m

Video (Frame rate)

25 fps

Video (Maximum resolution)

3860 x 2160 pixels

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

5 - 125 mm

Security (Alarm input channels)

2

Security (Alarm output channels)

1

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.0005 lx

Image sensor (Progressive scan)

Yes

Camera (Camera shutter type)

Electronic

Performance (Built-in light)

Yes

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

-5 - 90

Camera (White balance)

Auto/Manual/Natural/Outdoor/Regional custom/Sodium lamp/Street lamp

Video (Video formats supported)

H.264+/H.265+

Network (Streaming method)

Multicast/Unicast

Network (Supported network protocols)

ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NFS, NTP, PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SAMBA, SMTP, SNMP, SSL, TCP/ IP, UDP, UPnP, 802.1X

Storage (ROM capacity)

128 MB

Night vision (Number of illumination LEDs)

6

Network (Number of users)

20 user(s)

Management features (Web-based management)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

21.5 W

Lens system (Detect distance)

2500 m

Lens system (Identify distance)

250 m

Lens system (Observe distance)

987.5 m

Lens system (Recognize distance)

500 m

Audio (Voice codecs)

G.711a/G.711Mu/G.723/G.726/PCM

Network (Live view)

Yes

Camera (Pan manual speed)

0.1 - 240 /sec

Camera (Pan preset speed)

240 /sec

Camera (Tilt manual speed)

0.1 - 160 /sec

Camera (Tilt preset speed)

160 /sec

Security (Siren noise level)

55 dB

Camera (Number of Privacy masking areas)

24

Management features (Cloud-managed)

Yes

Lens system (Auto focus)

Yes

Lens system (Focus)

Motorized

Performance (Auto-tracking)

Yes

Specific References

EAN13

6923169706207

MPN

1408109
