Mainboard|MSI|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x

Reference PROZ890-PWIFI

Brand MSI

€216.04

VAT included

Quantity

Laos

In stock: 10 Items

Description
Product Details

Description

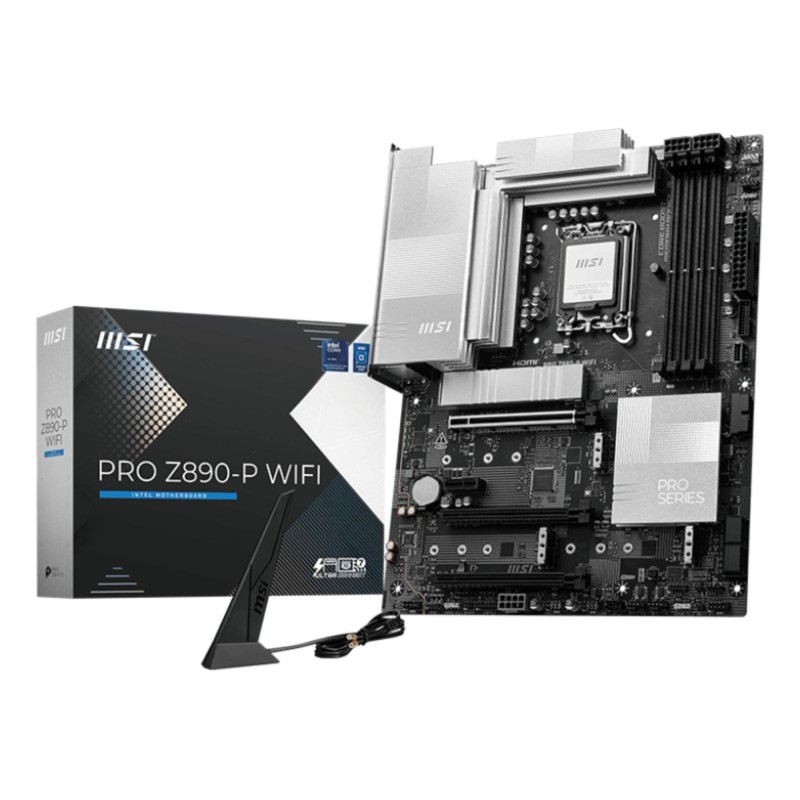

PRO Z890-P WIFI
PRO Z890-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI Motherboard ai logo
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

14+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, PRO Z890-P WIFI is ready for the challenge of high-end processors.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Product Details

Brand MSI

Reference PROZ890-PWIFI

In stock 10 Items

Data sheet

Vendor Homepage: https://www.msi.com/index.php
Garantija: 36
Model: PRO Z890-P WIFI
Category Code: MBI
Unit Box Height: 0.073
Unit Box Length: 0.342
Unit Box Width: 0.27
Units per Shipping Box: 5
Unit Calculated Volume: 0.008048 cubm
Unit Calculated Weight: 2.06 kg
CnCode: 84733020
Summary: MSI PRO Z890-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported s
Weight & dimensions (Width): 243.84 mm
Weight & dimensions (Depth): 304.8 mm
Network (Bluetooth): Yes
Network (Bluetooth version): 5.4
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour): Black
Processor (Processor manufacturer): Intel
Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Features (Component for): PC
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Expansion slots (PCI Express x4 (Gen 4.x) slots): 2
Processor (Compatible processor series): Intel Core Ultra (Series 2)
Processor (Processor socket): LGA 1851 (Socket V1)
Processor (Supported processor sockets): LGA 1851
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 9200 MHz
Memory (Supported memory clock speeds): 6400/9200 MHz
Memory (Supported memory types): DDR5-SDRAM
Storage controllers (Number of HDDs supported): 8
Storage controllers (Number of storage drives supported): 4
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 4
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Network (Ethernet interface type): 5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): Intel Z890
Features (Motherboard chipset family): Intel
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 11
Expansion slots (Number of M.2 (M) slots): 4
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (DisplayPort version): 1.4
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (Thunderbolt ports quantity): 1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Features (Audio chip): Realtek ALC897
Processor (Maximum internal memory supported by processor): 256 GB
Internal I/O (Total number of SATA connectors): 4
Memory (ECC сompatibility): Non-ECC
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity): 1
Internal I/O (Number of EPS power connectors (8-pin)): 1
Expansion slots (PCI Express x1 (Gen 4.x) slots): 1

Specific References

EAN13: 4711377257701
MPN: 1424202
