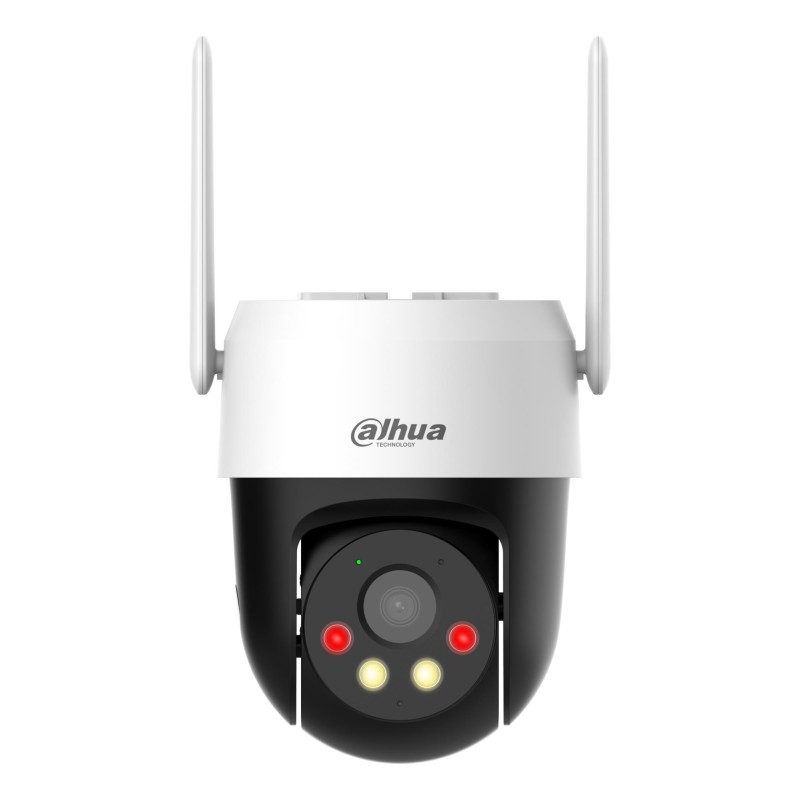

WRL CAMERA 5MP PT DOME 4G/P5AE-PV-4G DAHUA

Data sheet

Vendor Homepage

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/NEW-Channel/4G-Camera/Adapter-Powered-Cameras/P5AE-PV-4G

Garantija

36

Model

P5AE-PV-4G

Category Code

NCI

Unit Box Height

0.145

Unit Box Length

0.225

Unit Box Width

0.145

Units per Shipping Box

1

Unit Calculated Volume

0.004731 cubm

Unit Calculated Weight

0.76 kg

Summary

Dahua Technology 5MP Fixed-focal 4G Pan & Tilt Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Angle of rotation: 18

Weight & dimensions (Height)

140.5 mm

Weight & dimensions (Weight)

500 g

Packaging content (AC adapter included)

Yes

Packaging content (Quick start guide)

Yes

Performance (Plug and Play)

Yes

Operational conditions (Operating temperature (T-T))

-30 - 55 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

111 mm

Network (Bluetooth)

No

Network (Ethernet LAN)

No

Network (Wi-Fi)

No

Design (Product colour)

Black/White

Power (Power consumption (max))

9 W

Power (Power consumption (typical))

3 W

Design (Housing material)

Plastic

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Turret

Camera (Camera shutter speed)

1/25 - 1/100000 s

Audio (Audio system)

2-way

Packaging content (Screws included)

Yes

Design (LED indicators)

Yes

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

DC

Sustainability (Compliance certificates)

CE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in speaker(s))

Yes

Network (4G standard)

LTE-FDD

Network (Mobile network generation)

4G

Audio (Built-in microphone)

Yes

Design (Protection features)

Dustproof/Rain proof/Waterproof/Wind resistant

Network (Mobile network connection)

Yes

Design (International Protection (IP) code)

IP66

Design (Mounting type)

Ceiling/wall

Design (Weatherproof)

Yes

Performance (Connectivity technology)

Wireless

Performance (Day/night mode)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

94.41

Camera (Lens viewing angle, horizontal)

81.27

Camera (Lens viewing angle, vertical)

47.73

Image sensor (Optical sensor size)

1/2.8 "

Night vision (LED type)

IR/White

Night vision (Night vision)

Yes

Night vision (Night vision distance)

30 m

Video (Maximum resolution)

2880 x 1620 pixels

Video (Total megapixels)

5 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Human detection/Intrusion/Tripwire/Vehicle detection

Management features (Reset button)

Yes

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Fixed focal length)

4 mm

Lens system (Fixed focus)

Yes

Lens system (Maximum aperture number)

1.6

Camera (Camera shutter type)

Electronic

Security (Video motion detection)

Yes

Performance (Built-in light)

Yes

Video (Video compression formats)

H.264+/H.264B/H.264H/H.264M/H.265/H.265+/M-JPEG

Camera (Angle of rotation)

180

Camera (Pan range)

0 - 345

Camera (Tilt angle range)

0 - 90

Video (Video streaming)

Yes

Management features (Management software)

DMSS

Night vision (Number of illumination LEDs)

4

Security (Privacy protection)

Yes

Video (Bit rate)

H264: 64 - 8192 kbps H265: 25 - 6400 kbps

Audio (Voice codecs)

G.711a/G.711Mu/G.726/PCM

Network (Live view)

Yes

Panoramic camera (Digital Wide Dynamic Range (DWDR) (panoramic camera))

Yes

Performance (PTZ control)

Yes

Power (DC output current)

1 A

Security (Alert notification type)

Push notification

Technical details (Iris)

Yes

Performance (Auto-tracking)

Yes

Packaging content (Mounting brackets included)

Yes

Network (SIM card slot)

Yes

Management features (Remotely operated)

Yes

Power (Surge protection voltage)

2 kV

Specific References

EAN13

6939554928277

MPN

1439471
