Description
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
No OS Intel Core i5-14400F (20MB Cache) NVIDIA GeForce RTX 5060 (8GB GDDR7) 16GB (5600MHz) DDR5-SDRAM (2 x 8) & 1000GB SSD
Product Details
Reference
MAG INF E1 14NVL5-231XEU
In stock
21 Items
Data sheet
Vendor Homepage
https://www.msi.com/Desktop/MAG-Infinite-E1/Overview
Garantija
24
Model
MAG Infinite E1
Category Code
DT
Unit Box Height
0.49
Unit Box Length
0.46
Unit Box Width
0.235
Units per Shipping Box
1
Unit Calculated Volume
0.05297 cubm
Unit Calculated Weight
8.62 kg

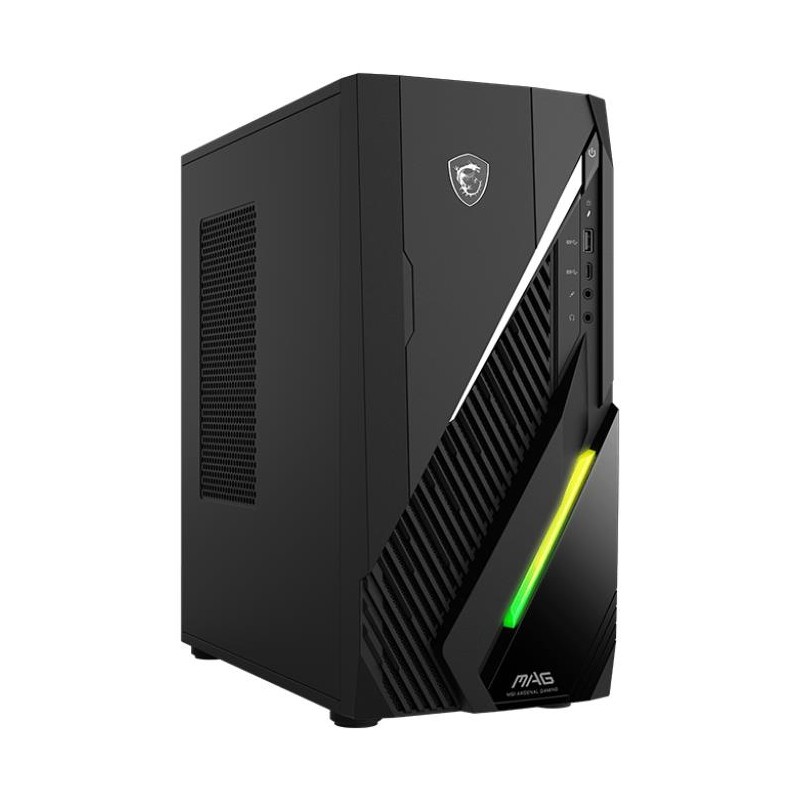

Summary
MSI MAG Infinite E1 14NVL5-231XEU. Processor family: Intel Core i5, Processor model: i5-14400F. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. Discrete graphics car
Performance (Product type)
PC
Weight & dimensions (Width)
168 mm
Weight & dimensions (Depth)
323 mm
Weight & dimensions (Height)
369 mm
Weight & dimensions (Weight)
7590 g
Ports & interfaces (Microphone in)
Yes
Operational conditions (Operating temperature (T-T))
0 - 35 C
Operational conditions (Storage relative humidity (H-H))
0 - 90 %
Operational conditions (Storage temperature (T-T))
-20 - 60 C
Ports & interfaces (HDMI ports quantity)
1
Ports & interfaces (USB 2.0 ports quantity)
4
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.3
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
Wi-Fi 6E (802.11ax)
Design (Product colour)
Black
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Ports & interfaces (DisplayPort version)
1.4a
Ports & interfaces (DisplayPorts quantity)
1
Ports & interfaces (HDMI version)
1.4
Ports & interfaces (Headphone outputs)
1
Memory (Memory clock speed)
5600 MHz
Ports & interfaces (VGA (D-Sub) ports quantity)
1
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Operational conditions (Operating relative humidity (H-H))
0 - 85 %
Ports & interfaces (DC-in jack)
Yes
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)
1
Memory (Internal memory)
16 GB
Performance (Audio chip)
Realtek ALC897
Ports & interfaces (Combo headphone/mic port)
Yes
Storage (SSD form factor)
M.2
Processor (Processor family)
Intel Core i5
Processor (Processor manufacturer)
Intel
Software (Operating system installed)
No
Processor (Processor model)
i5-14400F
Network (Top Wi-Fi standard)
Wi-Fi 6E (802.11ax)
Processor (Processor cores)
10
Memory (Internal memory type)
DDR5-SDRAM
Storage (Storage media)
SSD
Processor (Processor boost frequency)
4.7 GHz
Design (Chassis type)
Desktop
Processor (Maximum turbo power)
148 W
Processor (Performance cores)
6
Processor (Performance-core base frequency)
2.5 GHz
Processor (Performance-core Max Turbo Frequency)
4.7 GHz
Processor (Processor base power)
65 W
Processor (Processor cache)
20 MB
Processor (Processor cache type)
Smart Cache
Processor (Processor generation)
Intel Core i5 (14th gen)
Processor (Processor threads)
16
Memory (Maximum internal memory)
64 GB
Memory (Memory layout (slots x size))
2 x 8 GB
Storage (Number of SSDs installed)
1
Storage (NVMe)
Yes
Storage (Optical drive type)
No
Storage (SSD capacity)
1000 GB
Storage (SSD interface)
PCI Express 3.0
Storage (Total SSDs capacity)
1000 GB
Storage (Total storage capacity)
1000 GB
Graphics (Discrete graphics card)
Yes
Graphics (Discrete graphics card model)
NVIDIA GeForce RTX 5060
Graphics (On-board graphics card)
No
Graphics (On-board graphics card model)
Not available
Network (Antenna type)
2x2
Network (WLAN controller manufacturer)
Intel
Network (WLAN controller model)
Intel Wi-Fi 6E AX210
Performance (Motherboard chipset)
Intel H610
Power (80 PLUS certification)
80 PLUS Bronze
Power (Power supply)
500 W
Display (Display included)
No
Processor (Efficient cores)
4
Processor (Efficient-core base frequency)
1.8 GHz
Processor (Efficient-core Max Turbo Frequency)
3.5 GHz
Storage (M.2 SSD size)
2280 (22 x 80 mm)
Performance (Market positioning)
Gaming
Weight & dimensions (Package depth)
242 mm
Weight & dimensions (Package height)
510 mm
Weight & dimensions (Package weight)
9030 g
Weight & dimensions (Package width)
565 mm
Design (Placement supported)
Vertical
Network (LAN controller)
Intel I219-V
Design (Volume)
18 L
Graphics (Discrete GPU manufacturer)
NVIDIA
Graphics (Discrete graphics card memory)
8 GB
Graphics (Discrete graphics memory type)
GDDR7
Performance (Audio output channels)
7.1 channels
Specific References
EAN13
4711377384681
MPN
1443874
