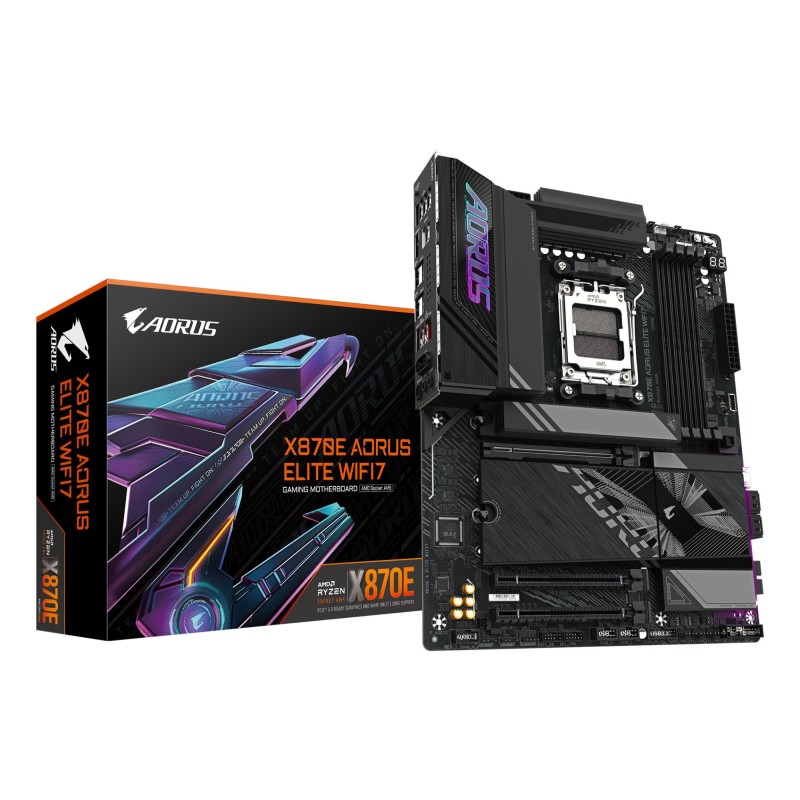

Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16

Reference X870E A ELITE WIFI7 1.2

Brand GIGABYTE

€284.81

VAT included

Quantity

Laos

In stock: 10 Items

Description
Product Details

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
Twin 16+2+2 Phases Digital VRM with DrMOS
Dual Channel DDR5：4DIMMs with AMD EXPO & Intel XMP Memory Module Support
PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
M.2 Gen5 with EZ-Latch Plus
Efficient Overall Thermal: Fully Covered MOSFET Heatsinks
Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna 2*USB-C DP
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna

Product Details

Brand GIGABYTE

Reference X870E A ELITE WIFI7 1.2

In stock 10 Items

Data sheet

Vendor Homepage: https://www.gigabyte.com/
Garantija: 36
Model: X870E AORUS ELITE WIFI7 1.2
Category Code: MBA
Unit Box Height: 0.334
Unit Box Length: 0.082
Unit Box Width: 0.272
Units per Shipping Box: 5
Unit Calculated Volume: 0.01065 cubm
Unit Calculated Weight: 2.63 kg
Summary: GIGABYTE X870E AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible proc
Mainboards for AMD CPUs | Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Mainboards for AMD CPUs | Processor (Processor manufacturer): AMD
Mainboards for AMD CPUs | Processor (Processor socket): Socket AM5
Mainboards for AMD CPUs | Memory (Maximum internal memory): 256 GB
Mainboards for AMD CPUs | Memory (Memory slots type): DIMM
Mainboards for AMD CPUs | Memory (Number of memory slots): 4
Mainboards for AMD CPUs | Memory (Supported memory clock speeds): 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
Mainboards for AMD CPUs | Memory (Supported memory types): DDR5-SDRAM
Mainboards for AMD CPUs | Storage controllers (Supported storage drive interfaces): M.2,SATA III
Mainboards for AMD CPUs | Internal I/O (USB 2.0 connectors): 2
Mainboards for AMD CPUs | Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Mainboards for AMD CPUs | Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Mainboards for AMD CPUs | Rear panel I/O ports (HDMI ports quantity): 1
Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 4
Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 2
Mainboards for AMD CPUs | Network (Bluetooth): Y
Mainboards for AMD CPUs | Network (Bluetooth version): 5.4
Mainboards for AMD CPUs | Network (Ethernet LAN): Y
Mainboards for AMD CPUs | Network (LAN controller): Realtek RTL8125
Mainboards for AMD CPUs | Features (Motherboard chipset): AMD X870E
Mainboards for AMD CPUs | Features (Motherboard chipset family): AMD
Mainboards for AMD CPUs | Features (Motherboard form factor): ATX
Mainboards for AMD CPUs | BIOS (BIOS memory size): 256 Mbit
Mainboards for AMD CPUs | BIOS (BIOS type): UEFI AMI
Mainboards for AMD CPUs | Processor (Supported processor sockets): Socket AM5
Mainboards for AMD CPUs | Memory (ECC ?ompatibility): non-ECC
Mainboards for AMD CPUs | Memory (Memory channels): Dual-channel
Mainboards for AMD CPUs | Memory (Unbuffered memory): Y
Mainboards for AMD CPUs | Storage controllers (Number of storage drives supported): 8
Mainboards for AMD CPUs | Storage controllers (RAID levels): 0/1/10
Mainboards for AMD CPUs | Storage controllers (RAID support): Y
Mainboards for AMD CPUs | Storage controllers (Supported storage drive types): HDD & SSD
Mainboards for AMD CPUs | Graphics (On-board graphics card): N
Mainboards for AMD CPUs | Graphics (Parallel processing technology support): Not supported
Mainboards for AMD CPUs | Internal I/O (ATX Power connector (24-pin)): Y
Mainboards for AMD CPUs | Internal I/O (CPU fan connector): Y
Mainboards for AMD CPUs | Internal I/O (EPS power connector (8-pin)): Y
Mainboards for AMD CPUs | Internal I/O (Front panel audio connector): Y
Mainboards for AMD CPUs | Internal I/O (Number of chassis fan connectors): 4
Mainboards for AMD CPUs | Internal I/O (Number of SATA III connectors): 4
Mainboards for AMD CPUs | Internal I/O (RGB LED pin header): Y
Mainboards for AMD CPUs | Internal I/O (TPM connector): Y
Mainboards for AMD CPUs | Rear panel I/O ports (HDMI version): 2.1
Mainboards for AMD CPUs | Rear panel I/O ports (Headphone outputs): 1
Mainboards for AMD CPUs | Rear panel I/O ports (Microphone in): Y
Mainboards for AMD CPUs | Rear panel I/O ports (WiFi-AP antenna jack): 2
Mainboards for AMD CPUs | Network (Ethernet interface type): 2.5 Gigabit Ethernet
Mainboards for AMD CPUs | Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Mainboards for AMD CPUs | Network (Wi-Fi): Y
Mainboards for AMD CPUs | Network (Wi-Fi standards): Wi-Fi 7 (802.11be)
Mainboards for AMD CPUs | Features (Audio output channels): 7.1 channels
Mainboards for AMD CPUs | Features (Component for): PC
Mainboards for AMD CPUs | Features (Product colour): Black
Mainboards for AMD CPUs | Features (Windows operating systems supported): Windows 11 x64
Mainboards for AMD CPUs | Expansion slots (Number of M.2 (M) slots): 4
Mainboards for AMD CPUs | Expansion slots (PCI Express x16 (Gen 3.x) slots): 1
Mainboards for AMD CPUs | Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
Mainboards for AMD CPUs | BIOS (Clear CMOS jumper): Y
Mainboards for AMD CPUs | Weight & dimensions (Depth): 244 mm
Mainboards for AMD CPUs | Weight & dimensions (Height): 35 mm
Mainboards for AMD CPUs | Weight & dimensions (Width): 305 mm
Mainboards for AMD CPUs | Other features (Weight): 2400 g
Mainboards for AMD CPUs | Memory (Supported memory clock speed (max)): 8200 MHz
Mainboards for AMD CPUs | Storage controllers (Number of HDDs supported): 4
Mainboards for AMD CPUs | Rear panel I/O ports (USB 2.0 ports quantity): 4
Mainboards for AMD CPUs | Packaging data (Package depth): 294 mm
Mainboards for AMD CPUs | Packaging data (Package height): 80 mm
Mainboards for AMD CPUs | Packaging data (Package weight): 2740 g
Mainboards for AMD CPUs | Packaging data (Package width): 345 mm
Mainboards for AMD CPUs | Internal I/O (Front panel connector): Y
Mainboards for AMD CPUs | Features (Audio chip): Realtek ALC1220
Mainboards for AMD CPUs | Expansion slots (1st M.2 highest PCI Express generation): 5.0
Mainboards for AMD CPUs | Expansion slots (1st M.2 largest key size): 25110
Mainboards for AMD CPUs | Expansion slots (2nd M.2 highest PCI Express generation): 5.0
Mainboards for AMD CPUs | Expansion slots (2nd M.2 largest key size): 22110
Mainboards for AMD CPUs | Expansion slots (3rd M.2 highest PCI Express generation): 5.0
Mainboards for AMD CPUs | Expansion slots (3rd M.2 largest key size): 22110
Mainboards for AMD CPUs | Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Mainboards for AMD CPUs | Packaging content (Antenna included): Y
Mainboards for AMD CPUs | Packaging content (Screws included): Y
Mainboards for AMD CPUs | Internal I/O (USB 3.2 Gen 2x2 connectors): 1
Mainboards for AMD CPUs | Rear panel I/O ports (S/PDIF out port): Y
Mainboards for AMD CPUs | Expansion slots (4th M.2 highest PCI Express generation): 4.0
Mainboards for AMD CPUs | Expansion slots (4th M.2 largest key size): 22110
Mainboards for AMD CPUs | Memory (Maximum internal memory per slot): 64 GB
Mainboards for AMD CPUs | Graphics (DirectX version): 12.0
Mainboards for AMD CPUs | Internal I/O (Number of CPU fan connectors): 2
Mainboards for AMD CPUs | Internal I/O (Number of EPS power connectors (8-pin)): 2
Mainboards for AMD CPUs | Internal I/O (Number of RGB LED pin headers): 4
Mainboards for AMD CPUs | Internal I/O (Number of water pump connectors): 2
Mainboards for AMD CPUs | Features (PC health monitoring): CPU/FAN/Temperature/Voltage
Mainboards for AMD CPUs | BIOS (ACPI version): 5.0
Mainboards for AMD CPUs | BIOS (Desktop Management Interface (DMI) version): 2.7
Mainboards for AMD CPUs | BIOS (System Management BIOS (SMBIOS) version): 2.7
Mainboards for AMD CPUs | Battery (Battery technology): Lithium-Manganese Dioxide (LiMnO2)
Mainboards for AMD CPUs | Battery (Battery type): CR2032
Mainboards for AMD CPUs | Battery (Battery weight): 3 g
Mainboards for AMD CPUs | Battery (Lithium weight per battery): 0.07 g
Mainboards for AMD CPUs | Battery (Number of battery cells): 1
Mainboards for AMD CPUs | Logistics data (Products per shipping (inner) case): 1 pc(s)
Mainboards for AMD CPUs | Packaging content (Batteries included): Y
Mainboards for AMD CPUs | Packaging content (Bundled software): Norton Internet Security (OEM version) LAN bandwidth management software
Mainboards for AMD CPUs | Technical details (Warranty period): 3 year(s)
Mainboards for AMD CPUs | Rear panel I/O ports (DisplayPort version): 1.4
Mainboards for AMD CPUs | Network (WLAN controller model): MediaTek MT7925
Mainboards for AMD CPUs | Logistics data (Country of origin): China
Mainboards for AMD CPUs | BIOS (Clear CMOS button): Y
Mainboards for AMD CPUs | Rear panel I/O ports (USB4 Gen 2x2 ports quantity): 2
Mainboards for AMD CPUs | Processor (Maximum internal memory supported by processor): 256 GB
Mainboards for AMD CPUs | Memory (Supported memory module capacities): 16GB/1GB/24GB/2GB/32GB/4GB/8GB
Mainboards for AMD CPUs | Expansion slots (PCI Express x4 slots): 2
