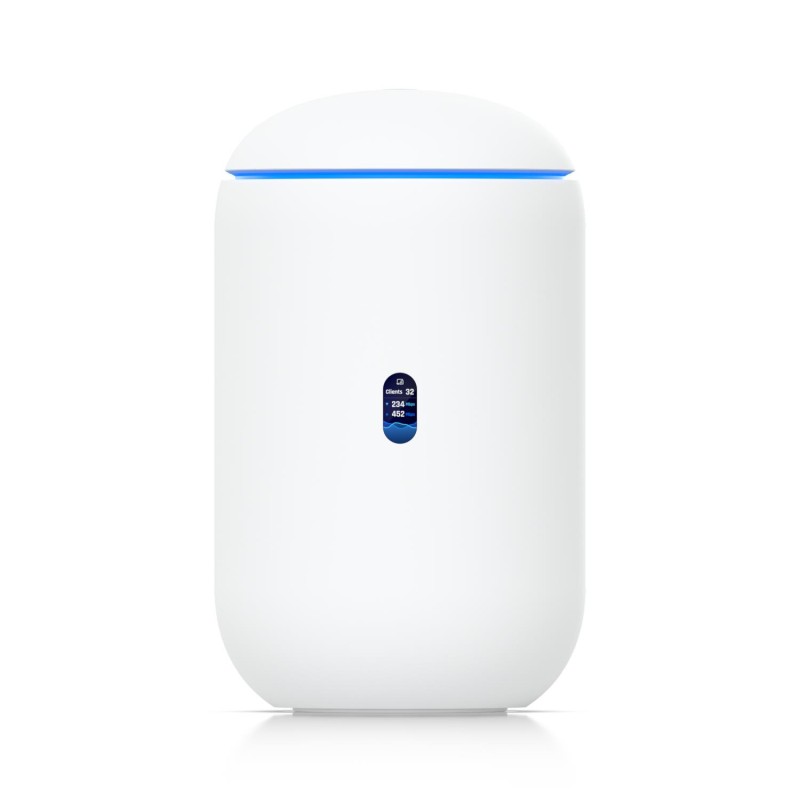

Wireless Router UBIQUITI Dream 7 Wi-Fi 7 (802.11be) Data speed 5700 Mbit s Ethernet WAN Yes Ethernet LAN Yes 4xLAN ports UDR7

Lisätiedot

Vendor Homepage

https://eu.store.ui.com/eu/en/category/cloud-gateways-wifi-integrated/products/udr7

Model name

Dream 7

Garantija

12

Model

Dream Router 7

Category Code

WRO

Unit Box Height

0.285

Unit Box Length

0.154

Unit Box Width

0.16

Units per Shipping Box

6

Unit Calculated Volume

0.0122 cubm

Unit Calculated Weight

1.96 kg

Summary

Ubiquiti Dream 7. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 5700 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 2500 Mbit/s, Networking stand

Weight & dimensions (Width)

110 mm

Weight & dimensions (Depth)

110 mm

Weight & dimensions (Height)

184.1 mm

Weight & dimensions (Weight)

1100 g

Packaging content (Cables included)

AC

Certificates (Compliance certificates)

CE/Federal Communications Commission (FCC)/Industry Canada (IC)

Operational conditions (Operating temperature (T-T))

-10 - 40 C

Ports & interfaces (USB port)

No

Network (Ethernet LAN)

Yes

Design (Product colour)

White

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (typical))

26 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

4

Design (Housing material)

Polycarbonate (PC)

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

5 - 95 %

Features (Bluetooth)

Yes

Design (LED indicators)

Status

Power (Power source type)

AC,PoE

Design (Built-in display)

Yes

Features (Internal memory)

3000 MB

Network (Ethernet LAN data rates)

2500 Mbit/s

Power (Power supply)

50 W

Design (Product type)

Tabletop router

Security (Security algorithms)

PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK

Management features (Reset button)

Yes

Power (Power over Ethernet (PoE))

Yes

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.1Q

Design (Display type)

LCM

Management features (Quality of Service (QoS) support)

Yes

Ports & interfaces (Fiber optic connector)

SFP+

Network (Policy-based routing)

Yes

Ports & interfaces (Compatible memory cards)

MicroSD (TransFlash)

Wireless LAN features (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Wireless LAN features (Wi-Fi band)

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Wireless LAN features (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Wireless LAN features (WLAN data transfer rate (max))

5700 Mbit/s

WAN connection (3G/4G USB modem compatibility)

No

WAN connection (DSL WAN)

No

WAN connection (Ethernet WAN)

Yes

WAN connection (SIM card slot)

No

Network (Ethernet LAN interface type)

2.5 Gigabit Ethernet

Security (Firewall)

Yes

Protocols (DHCP server)

Yes

Antenna (Antenna design)

Internal

Packaging data (Number of products included)

1 pc(s)

Wireless LAN features (WLAN data transfer rate (first band))

688 Mbit/s

Wireless LAN features (WLAN data transfer rate (second band))

4300 Mbit/s

Network (VPN server)

Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP

Management features (MU-MIMO technology)

Yes

Wireless LAN features (WLAN data transfer rate (third band))

5700 Mbit/s

Security (Filtering)

Yes

Features (Number of simultaneously connected devices (max))

300

Ports & interfaces (Memory card slot(s))

Yes

Antenna (Antenna gain level (max))

7 dBi

Features (Built-in processor)

Yes

Features (Processor cores)

4

Management features (MIMO)

Yes

Features (Processor frequency)

1500 MHz

Security (MAC address table)

2000 entries

Network (Load balancing system)

Yes

Network (Maximum coverage)

160 m

Network (Maximum Tx power (2.4 GHz))

23 dBmW

Network (Maximum Tx power (5 GHz))

26 dBmW

Network (Multicast support)

Yes

Protocols (Routing protocols)

OSPF

Features (Processor architecture)

ARM Cortex-A53

Power (Power over Ethernet (PoE) voltage)

57 V

Tilausviitteet

EAN13

810177160212

Valmistajan tuotenumero (MPN)

1435408
