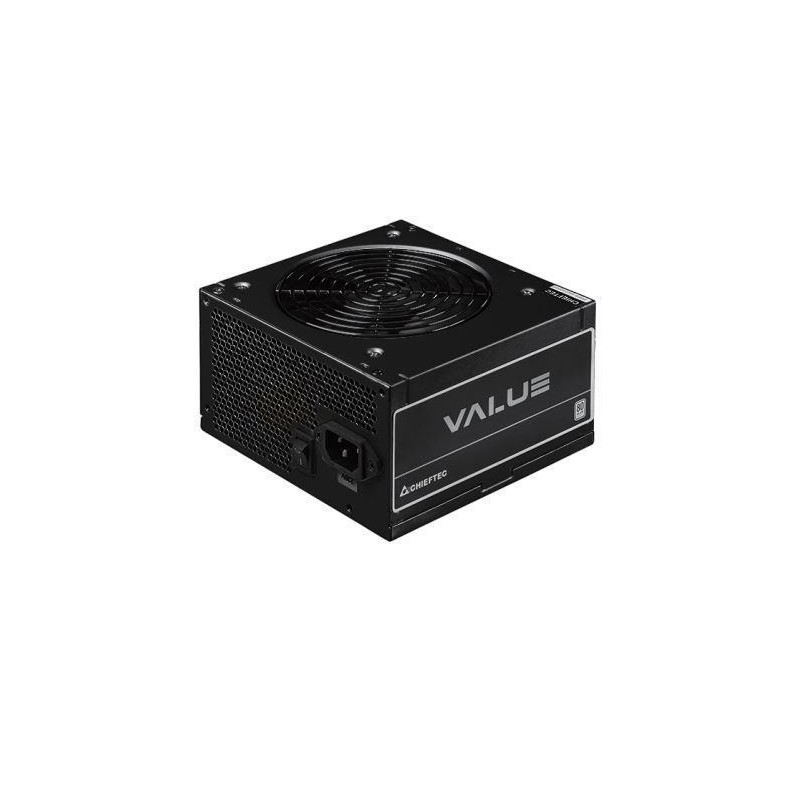

Power Supply|CHIEFTEC|APB-400B8|200 - 240 V|400 W|APB-400B8-BK

Lisätiedot

Vendor Homepage

www.chieftec.eu/products-detail/181/VALUE_SERIES/249/APB-400B8

Model name

APB-400B8

Garantija

24

Category Code

PSU

Unit Box Height

0.16

Unit Box Length

0.22

Unit Box Width

0.1

Units per Shipping Box

1

Unit Calculated Volume

0.00352 cubm

Unit Calculated Weight

1.17 kg

Weight & dimensions (Width)

140 mm

Weight & dimensions (Depth)

150 mm

Weight & dimensions (Height)

87 mm

Weight & dimensions (Weight)

1170 g

Design (Product colour)

Black

Power (AC input frequency)

47 - 63 Hz

Power (AC input voltage)

200 - 240 V

Power (Input current)

200-240V / 3.0A A

Design (Fan diameter)

120 mm

Power (Combined power (+5Vsb))

12.5 W

Power (Max output current (+3.3V))

17 A

Power (Max output current (+5V))

16 A

Power (Max output current (+5Vsb))

2.5 A

Power (Max output current (-12V))

0.3 A

Power (Total power)

400 W

Ports & interfaces (Motherboard power connector)

20+4 pin ATX

Performance (80 PLUS certification)

80 PLUS White

Performance (Supported motherboard form factors)

ATX

Power (Power Factor Correction (PFC) type)

Active

Performance (ATX version)

2.3

Power (Max output current (+12V1))

30 A

Tilausviitteet

EAN13

753263078506

Valmistajan tuotenumero (MPN)

1401199
