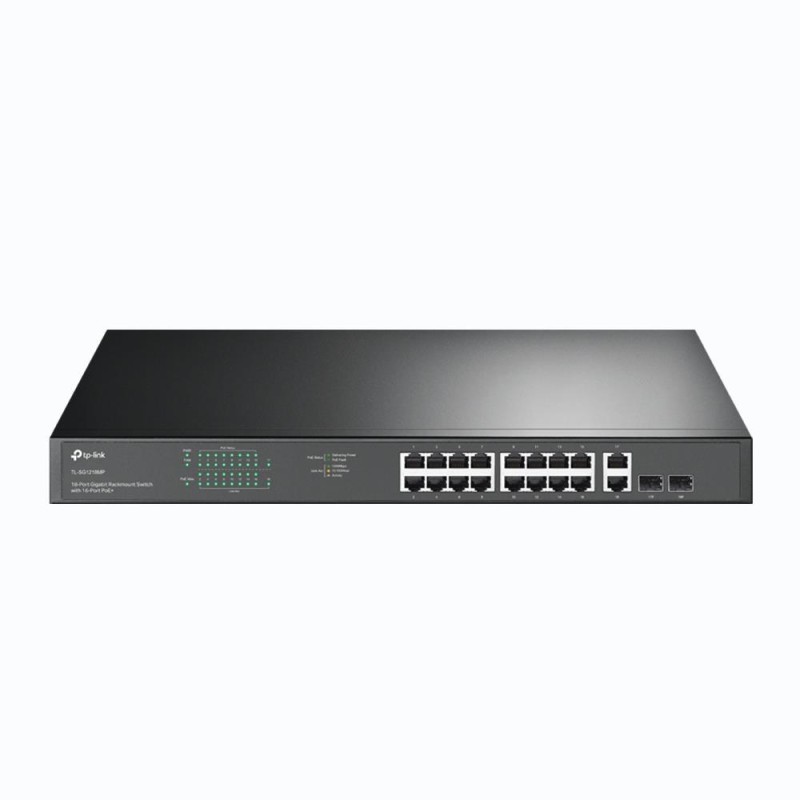

Switch|TP-LINK|TL-SG1218MP|Desktop/pedestal|Rack|16x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 16|250 Watts|TL-SG1218MP

Viite TL-SG1218MP

Tuotemerkki TP-LINK

179,79 €

Sisältää alv:n

Määrä

Viimeinen varastossa!

Varastossa: 1 Tuote

Kuvaus
Tuotetiedot

Kuvaus

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)

Tuotetiedot

Tuotemerkki TP-LINK

Viite TL-SG1218MP

Varastossa 1 Tuote

Lisätiedot

Vendor Homepage: https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1218mp/
Model name: TL-SG1218MP
Garantija: 60
Category Code: SWI
Unit Box Height: 0.25
Unit Box Length: 0.53
Unit Box Width: 0.08
Units per Shipping Box: 1
Unit Calculated Volume: 0.0106 cubm
Unit Calculated Weight: 3.03 kg
Summary: TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. Full duplex. MAC address table: 8000 entries, Swit
Weight & dimensions (Width): 440 mm
Weight & dimensions (Depth): 180 mm
Weight & dimensions (Height): 44 mm
Packaging data (Package width): 250 mm
Packaging data (Package depth): 528 mm
Packaging data (Package height): 80 mm
Packaging data (Package weight): 3050 g
Packaging content (Quick start guide): Yes
Packaging content (Cables included): AC
Power (Power source): AC
Logistics data (Harmonized System (HS) code): 85176990
Operational conditions (Operating temperature (T-T)): 0 - 50 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Design (Product colour): Black
Power (AC input frequency): 50 - 60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (max)): 286.64 W
Design (Housing material): Metal
Design (Number of fans): 2 fan(s)
Certificates (Certification): CE, FCC, RoHS
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Form factor): 1U
Design (LED indicators): Yes
Network (Ethernet LAN data rates): 10,100,1000 Mbit/s
Network (Networking standards): IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 18
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Data transmission (Forwarding rate): 26.78 Mpps
Data transmission (Switching capacity): 36 Gbit/s
Design (Rack mounting): Yes
Power (Power supply included): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Network (Flow control support): Yes
Network (Cable types supported): Cat3/Cat4/Cat5/Cat5e/Cat6
Data transmission (MAC address table): 8000 entries
Data transmission (Packet buffer memory): 4.1 MB
Network (Auto MDI/MDI-X): Yes
Network (Full duplex): Yes
Data transmission (Jumbo frames): 10000
Data transmission (Jumbo frames support): Yes
Network (Auto-negotiation): Yes
Network (Half duplex): Yes
Operational conditions (Heat dissipation): 977.44 BTU/h
Management features (Quality of Service (QoS) support): Yes
Ports & interfaces (Gigabit Ethernet (copper) ports quantity): 18
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 250 W
Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port): 30 W
Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity): 16
Management features (Traffic classification): Yes
Ports & interfaces (Combo SFP ports quantity): 2
Network (MAC address auto-aging supported): Yes
Network (MAC address auto-learning supported): Yes
