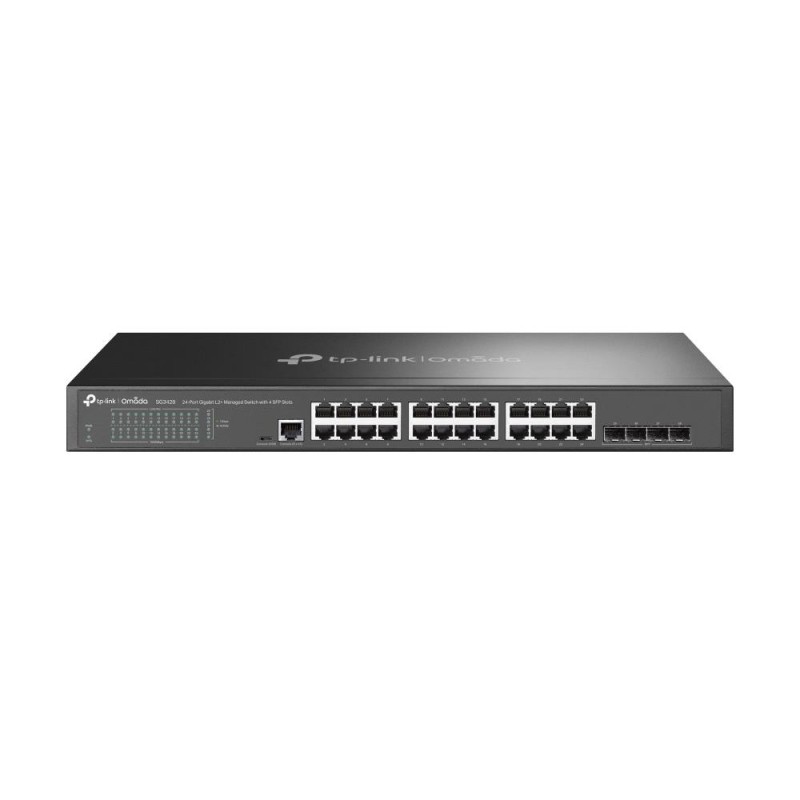

Switch TP-LINK Omada TL-SG3428 Type L2 Rack 4xSFP 1xConsole 1 TL-SG3428

Lisätiedot

Vendor Homepage

https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3428/ overview

Model name

TL-SG3428

Garantija

60

Series

Omada

Category Code

SWI

Unit Box Height

0.08

Unit Box Length

0.53

Unit Box Width

0.255

Units per Shipping Box

1

Unit Calculated Volume

0.01081 cubm

Unit Calculated Weight

2.85 kg

Summary

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45

Weight & dimensions (Width)

440 mm

Weight & dimensions (Depth)

180 mm

Weight & dimensions (Height)

44 mm

Packaging content (Quick start guide)

Yes

Packaging content (Cables included)

LAN (RJ-45)

Power (Power source)

AC

Operational conditions (Operating temperature (T-T))

0 - 45 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

20.6 W

Design (Number of fans)

0 fan(s)

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (Form factor)

1U

Design (LED indicators)

Yes

Network (Ethernet LAN data rates)

10,100,1000 Mbit/s

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z

Management features (Cloud-managed)

Yes

Management features (Switch layer)

L2/L3

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

24

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

41.66 Mpps

Data transmission (Switching capacity)

56 Gbit/s

Design (Rack mounting)

Yes

Power (Power supply included)

No

Power over Ethernet (PoE) (Power over Ethernet (PoE))

No

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (Spanning tree protocol)

Yes

Network (VLAN support)

Yes

Security (Authentication type)

AAA,RADIUS,TACACS+

Data transmission (Static route)

Yes

Security (DHCP features)

DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping

Data transmission (MAC address table)

16000 entries

Data transmission (Packet buffer memory)

12 MB

Ports & interfaces (Console port)

RJ-45/Micro-USB

Data transmission (Jumbo frames)

9000

Data transmission (Jumbo frames support)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

70.3 BTU/h

Security (MAC address filtering)

Yes

Management features (Quality of Service (QoS) support)

Yes

Ports & interfaces (Gigabit Ethernet (copper) ports quantity)

24

Network (Number of VLANs)

4000

Network (Virtual LAN features)

Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN

Ports & interfaces (SFP module slots quantity)

4

Security (Loop protection)

Yes

Network (Rate limiting)

Yes

Security (IGMP snooping)

Yes

Management features (ARP inspection)

Yes

Management features (Configuring Location Settings (CLI))

Yes

Management features (MIB support)

Yes

Management features (System event log)

Yes

Network (Head-of-line (HOL) blocking)

Yes

Network (IP routing)

Yes

Security (Access Control List (ACL))

Yes

Security (Authentication)

MAC-based authentication,Port-based authentication

Security (BPDU filtering/protection)

Yes

Security (IP-MAC-Port binding)

Yes

Security (SSH/SSL support)

Yes

Security (Static port security)

Yes

Multicast features (Multicast Listener Discovery (MLD) snooping)

Y

Multicast features (Multicast support)

Yes

Protocols (IPv4 & IPv6 features)

IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert

Protocols (Management protocols)

SNMPv1/v2c/v3, SNTP

Network (IPv4 routes)

48

Network (IPv6 routes)

48

Network (Policy-based routing)

Yes

Data transmission (Number of static routes)

48

Protocols (GARP VLAN Registration Protocol (GVRP))

Yes

Tilausviitteet

EAN13

6935364010713

Valmistajan tuotenumero (MPN)

1318868
