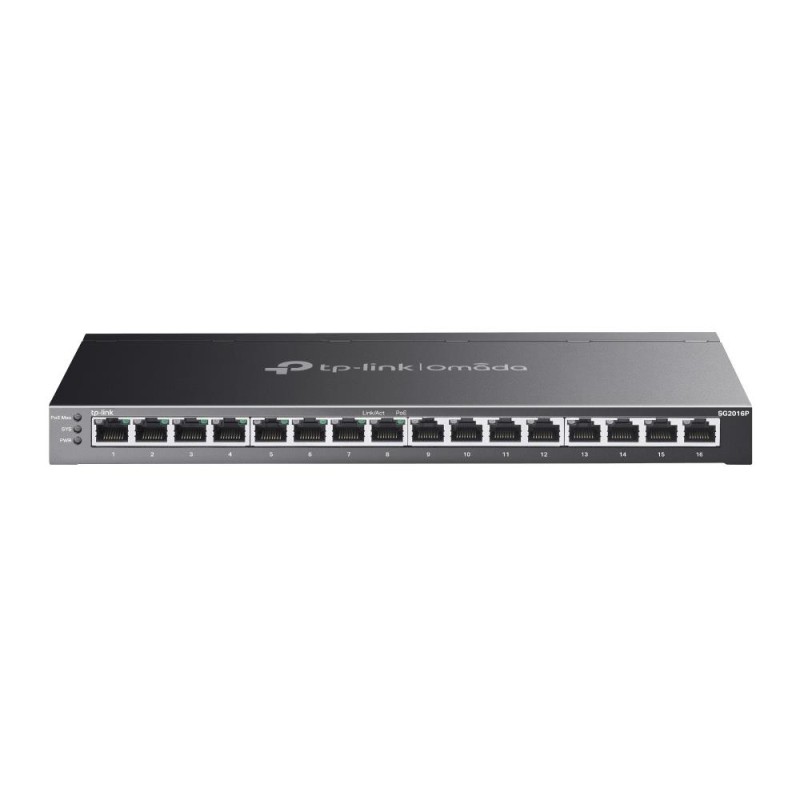

TP-LINK Omada PoE+ ports 8 120 Watts

Lisätiedot

Vendor Homepage

https://www.tp-link.com/en/business-networking/omada-switch-poe/sg2016p/

Model name

TL-SG2016P

Garantija

24

Series

Omada

Category Code

SWI

Unit Box Height

0.07

Unit Box Length

0.44

Unit Box Width

0.23

Units per Shipping Box

1

Unit Calculated Volume

0.007084 cubm

Unit Calculated Weight

2 kg

Summary

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000

Weight & dimensions (Width)

286 mm

Weight & dimensions (Depth)

111.7 mm

Weight & dimensions (Height)

25.4 mm

Packaging content (Cables included)

AC

Power (Power source)

DC/PoE

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (Power consumption (max))

146.5 W

Certificates (Certification)

CE, FCC, RoHS

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (LED indicators)

PoE/Power/System

Network (Ethernet LAN data rates)

10,100,1000 Mbit/s

Network (Copper ethernet cabling technology)

1000BASE-T/100BASE-TX/10BASE-T

Security (Security algorithms)

EAP-MD5/HTTPS/SNMP/SNMPv2/SNMPv3/SSH/SSL/TLS

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.11w/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x

Management features (Cloud-managed)

Yes

Management features (Switch layer)

L2/L2+

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

16

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

23.81 Mpps

Data transmission (Switching capacity)

32 Gbit/s

Design (Rack mounting)

Yes

Power (DC input voltage)

53.5 V

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (Spanning tree protocol)

Yes

Network (VLAN support)

Yes

Ports & interfaces (Power connector)

DC-in jack

Security (DHCP features)

DHCP relay/DHCP snooping/DHCPv6 client/DHCPv6 snooping

Data transmission (MAC address table)

8000 entries

Data transmission (Packet buffer memory)

4.1 MB

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

9000

Data transmission (Jumbo frames support)

Yes

Network (Auto-negotiation)

Yes

Operational conditions (Heat dissipation)

499.98 BTU/h

Security (MAC address filtering)

Yes

Protocols (Supported network protocols)

ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2

Performance (Fanless)

Yes

Management features (Quality of Service (QoS) support)

Yes

Network (Number of VLANs)

4000

Network (Virtual LAN features)

Multicast VLAN/Tagged VLAN/Voice VLAN

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

120 W

Network (Rate limiting)

Yes

Security (IGMP snooping)

Yes

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

8

Management features (ARP inspection)

Yes

Management features (Configuring Location Settings (CLI))

Yes

Management features (MIB support)

RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757

Management features (System event log)

Yes

Data transmission (Number of queues)

8

Security (Access Control List (ACL))

Yes

Security (Authentication)

Guest VLAN,MAC-based authentication,Port-based authentication

Security (BPDU filtering/protection)

Yes

Security (IP-MAC-Port binding)

Yes

Security (Queue scheduling algorithms)

SP/Weighted Round Robin (WRR)

Security (SSH/SSL support)

Yes

Multicast features (Multicast Listener Discovery (MLD) snooping)

MLD v1, MLD v2

Multicast features (Multicast support)

Yes

Protocols (IPv4 & IPv6 features)

Dual stack IPv4/IPv6

Protocols (GARP VLAN Registration Protocol (GVRP))

Yes

Security (MAC address entries)

Dynamic MAC address entries/Static MAC address entries

Performance (Firmware upgradeable)

Yes

Tilausviitteet

EAN13

4897098689493

Valmistajan tuotenumero (MPN)

1391346
