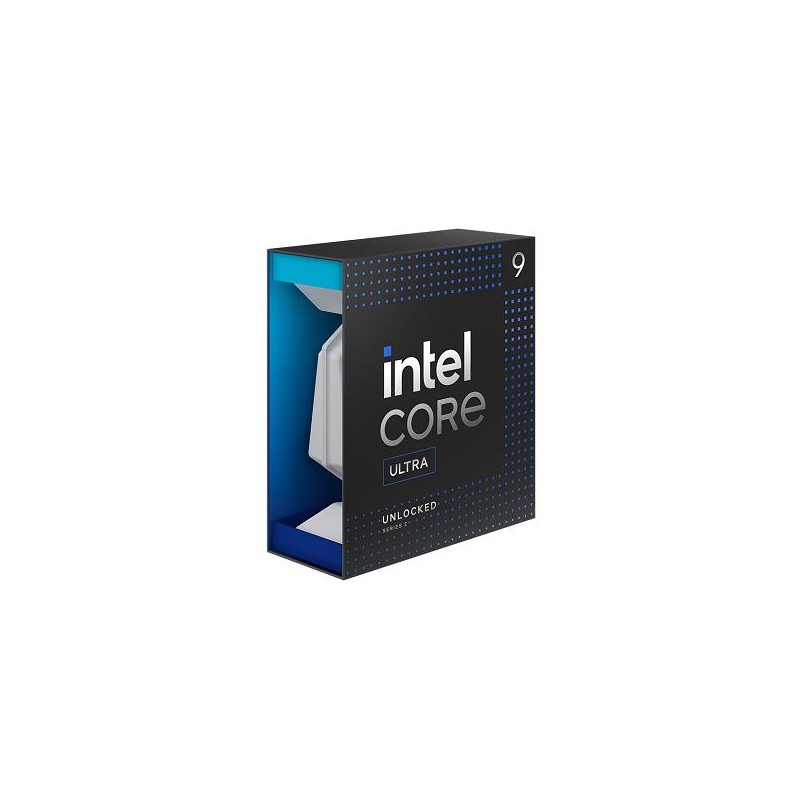

CPU|INTEL|Desktop|Intel Core Ultra|U9-285K|Arrow Lake|3700 MHz|Cores 24|36MB|Socket LGA1851|125 Watts|BOX|BX80768285KSRQD5

Lisätiedot

Vendor Homepage

https://ark.intel.com/content/www/us/en/ark/products/241060/intel-core-ultra-9-processor-285k-36m-cache-up-to-5-70-ghz.html

Model number

U9-285K

CPU Family name

Intel Core Ultra

Garantija

24

Category Code

CPU

Unit Box Height

0.065

Unit Box Length

0.165

Unit Box Width

0.15

Units per Shipping Box

5

Unit Calculated Volume

0.0020452 cubm

Unit Calculated Weight

0.37 kg

Summary

Intel Core Ultra 9 285K. Processor family: Intel Core Ultra 9, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN,

Logistics data (Harmonized System (HS) code)

8542310050

Processor (Processor family)

Intel Core Ultra 9

Processor (Processor manufacturer)

Intel

Processor (Processor model)

285K

Processor (Processor cores)

24

Processor (Processor boost frequency)

5.7 GHz

Processor (Maximum turbo power)

250 W

Processor (Performance cores)

8

Processor (Performance-core base frequency)

3.7 GHz

Processor (Processor base power)

125 W

Processor (Processor cache)

36 MB

Processor (Processor cache type)

Smart Cache

Processor (Processor generation)

Intel Core Ultra (Series 2)

Processor (Processor threads)

24

Memory (Memory channels)

Dual-channel

Graphics (Discrete graphics card)

No

Graphics (Discrete graphics card model)

Not available

Graphics (On-board graphics card)

Yes

Graphics (On-board graphics card model)

Intel Graphics

Processor (Efficient cores)

16

Processor (Efficient-core base frequency)

3.2 GHz

Neural processor unit (NPU) (AI software frameworks supported by NPU)

DirectML/ONNX RT/OpenVINO/WebNN/Windows ML

Neural processor unit (NPU) (GPU performance up to)

8 TOPs

Neural processor unit (NPU) (Neural processor unit (NPU))

Intel AI Boost

Neural processor unit (NPU) (NPU performance up to)

13 TOPs

Neural processor unit (NPU) (Sparsity support)

Yes

Neural processor unit (NPU) (Total processor performance up to)

36 TOPs

Neural processor unit (NPU) (Windows Studio effects support)

Yes

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Efficient-core boost frequency)

4.6 GHz

Processor (Performance-core boost frequency)

5.5 GHz

Operational conditions (Maximum operating temperature)

105 C

Features (Use conditions)

PC/Client/Tablet/Workstation

Features (Market segment)

Desktop

Memory (ECC)

Yes

Graphics (On-board graphics card DirectX version)

12.0

Graphics (On-board graphics card OpenGL version)

4.5

Processor special features (Intel Trusted Execution Technology)

Yes

Processor special features (Intel Virtualization Technology (VT-x))

Yes

Processor special features (Intel Virtualization Technology for Directed I/O (VT-d))

Yes

Processor special features (Intel VT-x with Extended Page Tables (EPT))

Yes

Processor special features (Intel Turbo Boost Technology)

2.0

Processor (Processor operating modes)

64-bit

Memory (Memory clock speeds supported by processor)

6400 MHz

Memory (Memory types supported by processor)

DDR5-SDRAM

Memory (Maximum internal memory supported by processor)

192 GB

Features (Maximum number of PCI Express lanes)

24

Features (PCI Express slots version)

4.0/5.0

Features (Supported instruction sets)

AVX 2.0/SSE4.1/SSE4.2

Processor (Cooler included)

No

Processor (Package type)

Box

Graphics (On-board graphics card base frequency)

300 MHz

Processor (Processor codename)

Arrow Lake

Processor (AI software frameworks supported by CPU)

DirectML/ONNX RT/OpenVINO/WebNN/Windows ML

Processor (Maximum number of DMI lanes)

8

Processor (Processor ARK ID)

241060

Processor (Stepping)

B0

Graphics (Number of displays supported (on-board graphics))

4

Graphics (On-board graphics card dynamic frequency (max))

2000 MHz

Graphics (On-board graphics card ID)

0x7D67

Graphics (On-board graphics card outputs supported)

DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1

Graphics (On-board graphics card refresh rate at maximum resolution (DisplayPort))

60 Hz

Graphics (On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel))

60 Hz

Graphics (On-board graphics card refresh rate at maximum resolution (HDMI))

60 Hz

Graphics (Xe-cores)

4

Features (Commodity Classification Automated Tracking System (CCATS))

740.17B1

Features (Direct Media Interface (DMI) Revision)

4.0

Features (Embedded options available)

No

Features (Execute Disable Bit)

Yes

Features (Export Control Classification Number (ECCN))

5A992C

Features (Idle States)

Yes

Features (Scalability)

1S

Features (Thermal Monitoring Technologies)

Yes

Features (Thermal solution specification)

PCG 2020A

Processor special features (Enhanced Intel SpeedStep Technology)

Yes

Processor special features (Intel 64)

Yes

Processor special features (Intel Turbo Boost Max Technology 3.0)

Yes

Processor special features (Intel vPro Enterprise Platform Eligibility)

Yes

Processor special features (Intel Active Management Technology (Intel AMT))

Yes

Processor special features (Intel AES New Instructions (Intel AES-NI))

Yes

Processor special features (Intel Boot Guard)

Yes

Processor special features (Intel Control-flow Enforcement Technology (CET))

Yes

Processor special features (Intel Deep Learning Boost (Intel DL Boost) on CPU)

Yes

Processor special features (Intel Deep Learning Boost (Intel DL Boost) on GPU)

Yes

Processor special features (Intel Hardware Shield Eligibility)

Yes

Processor special features (Intel One-Click Recovery)

Yes

Processor special features (Intel OS Guard)

Yes

Processor special features (Intel Quick Sync Video Technology)

Yes

Processor special features (Intel Remote Platform Erase (RPE))

Yes

Processor special features (Intel Secure Key)

Yes

Processor special features (Intel Speed Shift Technology)

Yes

Processor special features (Intel Stable IT Platform Program (SIPP))

Yes

Processor special features (Intel Standard Manageability (ISM))

Yes

Processor special features (Intel Thread Director)

Yes

Processor special features (Intel Threat Detection Technology (TDT))

Yes

Processor special features (Intel Thunderbolt 4)

Yes

Processor special features (Intel Total Memory Encryption - Multi Key)

Yes

Processor special features (Intel Turbo Boost Max Technology 3.0 frequency)

5.6 GHz

Processor special features (Intel Virtualization Technology with Redirect Protection (VT-rp))

Yes

Processor special features (Intel Volume Management Device (VMD))

Yes

Processor special features (Mode-based Execute Control (MBE))

Yes

Technical details (Launch date)

Q4'24

Technical details (Memory speed (max))

6400 MHz

Technical details (OpenCL version)

3.0

Technical details (Status)

Launched

Other features (Graphics output)

DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Other features (L2 cache)

40960 KB

Other features (Maximum internal memory)

192 GB

Processor special features (Intel Thermal Velocity Boost)

Yes

Processor special features (Intel Thermal Velocity Boost Frequency)

5.7 GHz

Tilausviitteet

EAN13

5032037281928

Valmistajan tuotenumero (MPN)

1451308
