| Standard: |
IP |
| Resolution: |
2304 x 1296 - 3 Mpx ,
1920 x 1080 1080p ,
1280 x 720 - 720p |
| Sensor: |
1/2.8 " Progressive Scan CMOS |
| Lens: |
4 mm |
| View angle: |
87 ° |
| Optical zoom: |
 |
| Digital zoom: |
|
| Range of IR illumination: |
30 m |
| White light LED illuminator range: |
30 m |
| Video output: |
|
| Rotation speed (manual control): |
0.1 °/s ... 74 °/s (horizontal) 0.1 °/s ... 36 °/s (vertical) |
| Preset rotation speed: |
max. 62 °/s (horizontal)
max. 36 °/s (vertical) |
| Horizontal rotation range: |
0 ° ... 345 ° - Rotation of the head is limited by stops |
| Vertical rotation range: |
0 ° ... 80 ° |
| RS-485 interface: |
|
| Number of presets: |
300 |
| Horizontal scan: |
|
| Route settings: |
|
| Image compression method: |
H.265+ / H.264 / H.265 / MJPEG / H.264+ |
| Alarm inputs / outputs: |
|
| Main stream frame rate: |
25 fps - 5 Mpx |
| Memory card slot: |
Micro SD card support up to 256GB |
| Interface: |
Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n, 10/100 Base-T (RJ-45) |
| WEB Server: |
Built-in, NVR compliance |
| Max. number of on-line users: |
20 |
| ONVIF: |
|
| Audio: |
Microphone built-in Speaker built-in Audio detection Bi-directional audio streaming support |
| Mobile phones support: |
37777 port Android: DMSS free application iOS (iPhone): DMSS free application |
| Default admin user / password: |
admin / -
The administrator password should be set at the first start |
| Default IP address: |
192.168.1.108 |
| Web browser access ports: |
80, 37777 |
| PC client access ports: |
37777 |
| Mobile client access ports: |
37777 |
| ONVIF port: |
|
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Intelligent Image Analysis: |
intrusion linkage tracking crossing the line (tripwire) |
| Main features: |
When Smart Dual Light is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves the image quality Active deterrence function - Light and sound alarm Intelligent Object Tracking Wi-Fi Module - IEEE 802.11 b/g/n, D-WDR - Wide Dynamic Range Day/night mode BLC - Back Light Compensation HLC - High Light Compensation (spot) ICR - Movable InfraRed filter motion detection based on human detection SMD 3.0 - searching for an object classified as: human, motor vehicle |
| Power supply: |
12 V DC / 1 A |
| Power consumption: |
≤ 11 W |
| Housing: |
Speed Dome, Plastic |
| Color: |
White |
| "Index of Protection": |
IP66 |
| Operation temp: |
-30 °C ... 55 °C |
| Weight: |
0.44 kg |

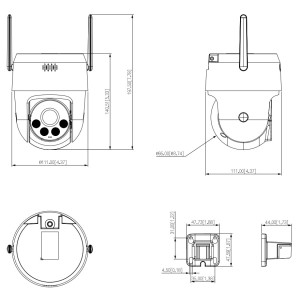

| Dimensions: |
Ø 111 x 141 mm (without bracket) |
| Supported languages: |
English |
| Manufacturer / Brand: |
DAHUA |
| Guarantee: |
3 years |
