8719214472115NB ACC DOCKING STATION USB-C 120W CLUB3D
  • 8719214472115NB ACC DOCKING STATION USB-C 120W CLUB3D

NB ACC DOCKING STATION USB-C 120W CLUB3D

CSV-1568
CLUB3D
Docking, Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery (USB PD) Yes, 2xHDMI ports quantity, 1xDisplayPorts quantity, DC-in jack Yes, Ethernet LAN Yes, Card reader integrated Yes, Colour Metallic, Weight 563 g
238,99 €
Sisältää alv:n
Monthly payment from 11.99€
Määrä
Viimeinen varastossa!
1 Tuote

Kuvaus

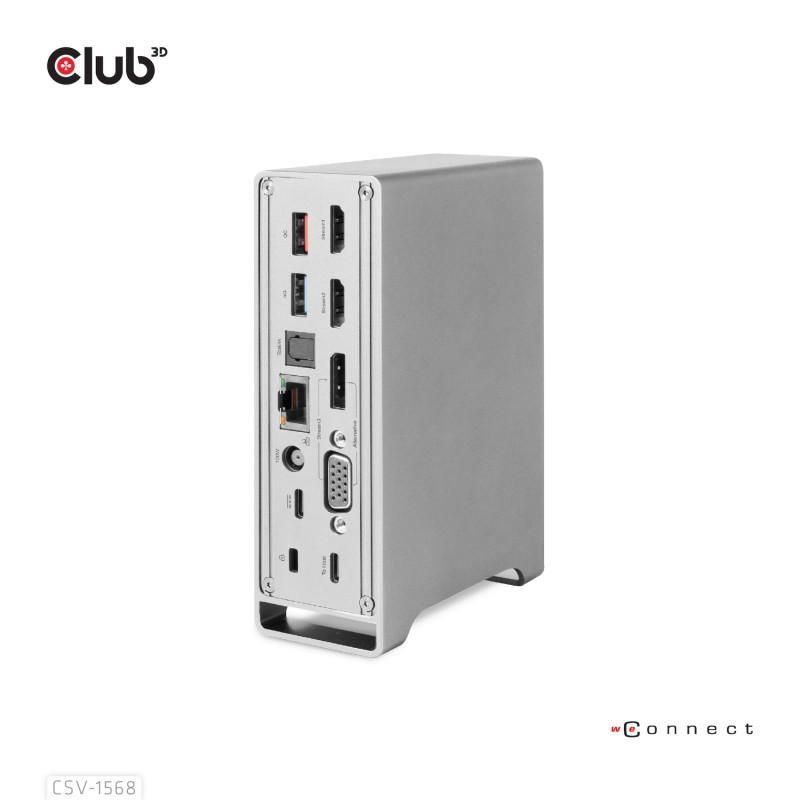

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).

It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

  • Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)
  • Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
  • When 3 Displays are connected - 16.2Gbps bandwidth will be shared
  • Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
  • DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
  • DP and HDMI support deep color 8/10 bit
  • DP and HDMI support HDR
  • DP and HDMI support HDCP2.2 & 1.4
  • DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
  • Support Gigabit Ethernet 10/100/1000M
  • Support USB3.2 Gen2 with max 10Gbps data transfer
  • Support smart charging
  • Support Digital audio with max 96KHz/24bit sampling rate
  • Support dual power supplies: Type-C PD charging or DC Jack
  • Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
  • Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
Tuotetiedot
CLUB3D
CSV-1568
1 Tuote

Lisätiedot

Vendor Homepage
https://www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/
Garantija
24
Model
CSV-1568
Category Code
NBK
Unit Box Height
0.095
Unit Box Length
0.225
Unit Box Width
0.16
Units per Shipping Box
1
Unit Calculated Volume
0.00342 cubm
Unit Calculated Weight
1.39 kg
Summary
CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. 2x HDMI (DP Alt Mode) 1x DP (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connec
Performance (Product colour)
Metallic
Performance (Country of origin)
China
Ports & interfaces (Connectivity technology)
Docking
Weight & dimensions (Width)
139 mm
Weight & dimensions (Depth)
90 mm
Weight & dimensions (Height)
44 mm
Weight & dimensions (Weight)
563 g
Packaging data (Package width)
225 mm
Packaging data (Package depth)
155 mm
Packaging data (Package height)
97 mm
Packaging data (Package weight)
1359 g
Packaging content (AC adapter included)
Yes
Packaging content (Quick start guide)
Yes
Performance (Certification)
Meets ROHS, FCC, and CE EMI requirements
Logistics data (Harmonized System (HS) code)
8473 3020
Performance (Plug and Play)
Yes
Packaging data (Quantity per pack)
1 pc(s)
Ports & interfaces (HDMI ports quantity)
2
Network (Ethernet LAN)
Yes
Performance (High Dynamic Range (HDR) supported)
Yes
Power (AC input voltage)
100 - 240 V
Power (Power consumption (max))
120 W
Ports & interfaces (DisplayPort version)
1.4
Ports & interfaces (DisplayPorts quantity)
1
Ports & interfaces (HDCP)
Yes
Ports & interfaces (HDCP version)
1.4/2.2
Ports & interfaces (Headphone connectivity)
3.5 mm
Packaging content (Stand included)
Yes
Ports & interfaces (USB Power Delivery (USB PD))
Yes
Ports & interfaces (USB Power Delivery up to)
100 W
Ports & interfaces (USB Type-C DisplayPort Alternate Mode)
Yes
Ports & interfaces (VGA (D-Sub) ports quantity)
1
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
1
Ports & interfaces (DC-in jack)
Yes
Power (Power source type)
DC
Software (Mac operating systems supported)
Yes
Software (Windows operating systems supported)
Yes
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
2
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
1
Ports & interfaces (Combo headphone/mic port)
Yes
Power (Power supply)
120 W
Performance (Card reader integrated)
Yes
Network (Ethernet LAN (RJ-45) ports)
1
Ports & interfaces (Host interface)
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces (USB Power Delivery revision)
3.0
Performance (Brand compatibility)
Apple
Performance (Data transfer rate)
16.2 Gbit/s
Performance (Maximum refresh rate)
60 Hz
Power (Power connector)
USB Type-C
Packaging composition (Paper/cardboard packaging weight)
168 g
Packaging composition (Plastic packaging weight)
5 g
Packaging composition (Total paper/cardboard packaging weight)
0 g
Packaging composition (Total plastic packaging weight)
0 g
Performance (Compatibility)
Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer
Power (Power cable length)
1 m
Ports & interfaces (Thunderbolt 3 Power Delivery)
Yes
Performance (Key lock)
Yes
Other features (Special features)
In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide
Other features (Voltage)
20.5 V

Tilausviitteet

EAN13
8719214472115
Valmistajan tuotenumero (MPN)
1448481
