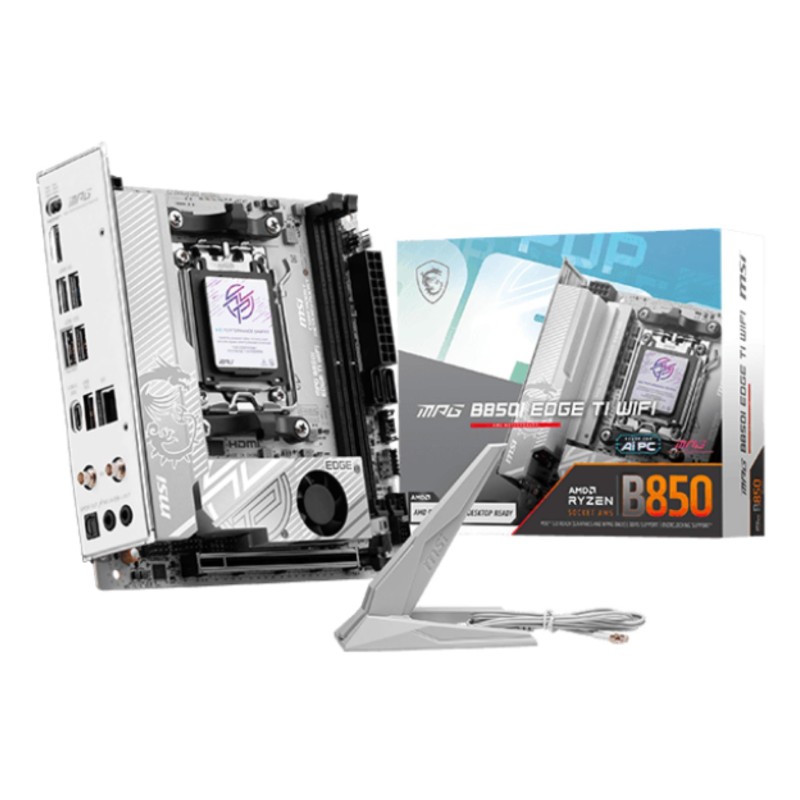

Emolevy MSI AMD B850 SAM5 Mini-ITX Memory DDR5 Memory slots 2 MPGB850IEDGETIWIFI

Lisätiedot

Vendor Homepage

https://www.msi.com/Motherboard/MPG-B850I-EDGE-TI-WIFI/Specification

Garantija

36

Model

MPG B850I EDGE TI WIFI

Category Code

MBA

Unit Box Height

0.06

Unit Box Length

0.225

Unit Box Width

0.275

Units per Shipping Box

10

Unit Calculated Volume

0.004394 cubm

Unit Calculated Weight

1.28 kg

CnCode

84733020

Summary

MSI B850I EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memor

Weight & dimensions (Width)

170 mm

Weight & dimensions (Depth)

170 mm

Packaging content (Cables included)

SATA

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.4

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Features (Product colour)

Grey

Packaging content (Screws included)

Yes

Processor (Processor manufacturer)

AMD

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Features (Component for)

PC

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Graphics (On-board graphics card)

No

Network (LAN controller)

Realtek RTL8126

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

8200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,NVMe,SATA III

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (Number of chassis fan connectors)

6

Internal I/O (Number of SATA III connectors)

2

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

3

Network (Ethernet interface type)

5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD B850

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

mini ITX

Expansion slots (Number of M.2 (M) slots)

2

Storage controllers (RAID levels)

0/1

Storage controllers (RAID support)

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Other features (Quick installation guide)

Yes

Memory (ECC сompatibility)

Non-ECC

Internal I/O (Number of CPU fan connectors)

1

Packaging content (Antenna included)

Yes

Rear panel I/O ports (USB connector type)

USB Type-A/USB Type-C

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Tilausviitteet

EAN13

4711377360906

Valmistajan tuotenumero (MPN)

1443625
