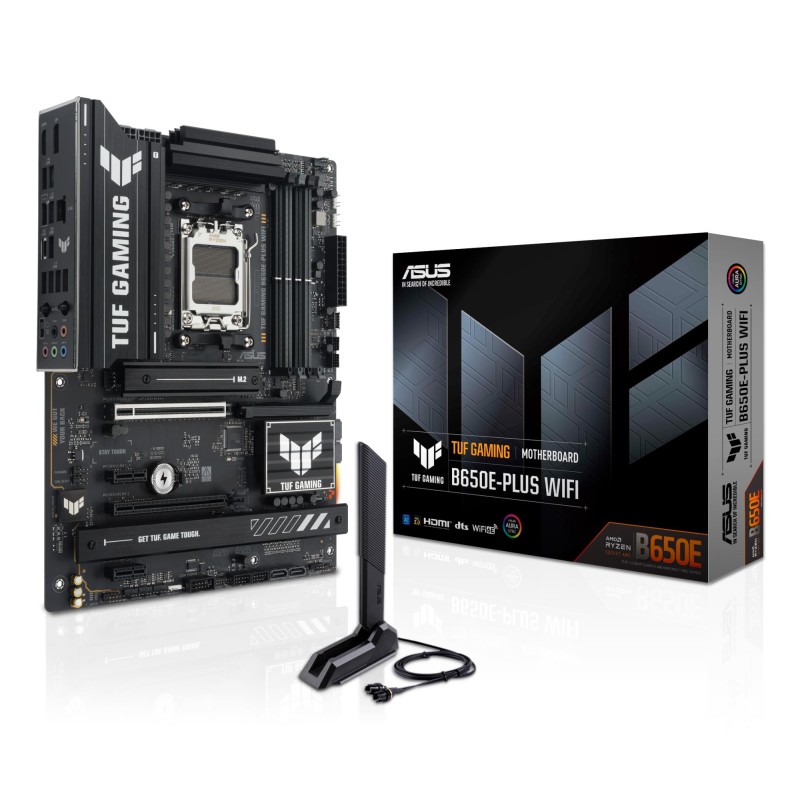

Emolevy ASUS AMD B650 SAM5 ATX Memory DDR5 Memory slots 4 4.0 1x 4.0 16x

Lisätiedot

Vendor Homepage

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650e-plus-wifi/

Garantija

36

Model

TUF GAMING B650E-PLUS WIFI

Category Code

MBA

Unit Box Height

0.275

Unit Box Length

0.36

Unit Box Width

0.07

Units per Shipping Box

4

Unit Calculated Volume

0.008048 cubm

Unit Calculated Weight

2.1 kg

CnCode

84733020

Summary

ASUS TUF GAMING B650E-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Packaging data (Package width)

353 mm

Packaging data (Package depth)

273 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

1393 g

Packaging content (Cables included)

SATA

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

Wi-Fi 6E (802.11ax)

Features (Product colour)

Black

Processor (Processor manufacturer)

AMD

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Features (Component for)

PC

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Graphics (On-board graphics card)

No

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Cooling type)

Passive

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

7

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of COM connectors)

1

Internal I/O (Number of SATA III connectors)

4

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

6

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

3

Rear panel I/O ports (WiFi-AP antenna jack)

1

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD B650

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11

Expansion slots (Number of M.2 (M) slots)

3

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (Thunderbolt headers)

1

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Features (Audio chip)

Realtek ALC1220P

Memory (ECC сompatibility)

ECC & Non-ECC

Internal I/O (Number of CPU fan connectors)

1

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Expansion slots (3rd M.2 largest key size)

2280

Packaging content (Antenna included)

Yes

Expansion slots (PCI Express x1 (Gen 4.x) slots)

2

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Tilausviitteet

EAN13

4711387995488

Valmistajan tuotenumero (MPN)

1437635
