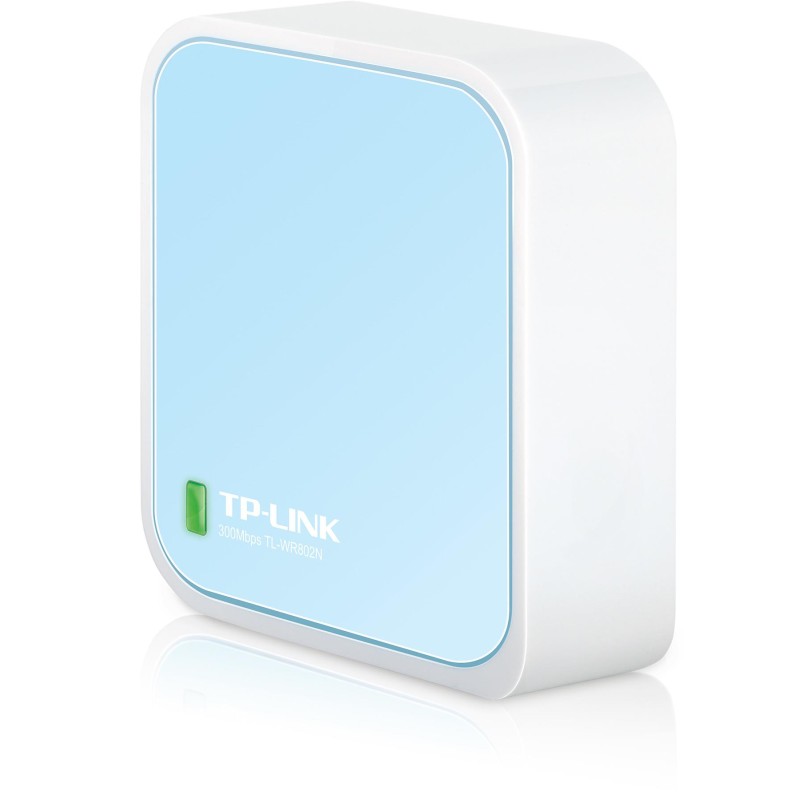

Wireless Router | Available bandwidth 300 Mbps | Included Accessories TL-WR802NPower AdapterUSB CableEthernet cableQuick Installation GuideResource CD | Dimensions 57 x 57 x18 mm
Multiple Operating Modes Ideal for Home and Travel Use To meet the wireless needs of almost any situation you might encounter, the TL-WR802N supports Router, Hotspot, Range Extender, Client and Access Point Modes.
During Travel Router Mode Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for setup in most hotels.
Hotspot Mode Enjoy wireless Internet access by connecting to an outdoor WISP Access Point.
At Home Range Extender Mode Extend existing Wi-Fi to improve signal strength and maximize coverage.
Client Mode Allow devices that require a wired connection to access an existing Wi-Fi network.
Access Point Mode Create a wireless network for Wi-Fi devices.
Portable and Compact - Suitable for Home and Travel The TL-WR802N is the smallest wireless router in the world. It is very easy to use and is a perfect choice for travelers, students, and anyone else who lives life on the go.
Flexible Power Supply - Find Power Wherever You Are The TL-WR802N can be powered using the included power adapter or using a smartphone /USB charger.
300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling*
Pocket-size – Ideal for home and travel use
Supports Router, Repeater, Client, AP and hotspot operation modes
Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
TP-Link TL-WR802N. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling
Weight & dimensions (Width)
57 mm
Weight & dimensions (Depth)
57 mm
Weight & dimensions (Height)
18 mm
Packaging data (Package width)
110 mm
Packaging data (Package depth)
109 mm
Packaging data (Package height)
73.5 mm
Packaging data (Package weight)
240 g
Packaging content (AC adapter included)
Yes
Packaging content (Cables included)
LAN (RJ-45)/USB
System requirements (Windows operating systems supported)
Windows 2000/Windows 7/Windows 7 Enterprise/Windows 7 Enterprise x64/Windows 7 Home Basic/Windows 7 Home Basic x64/Windows 7 Home Premium/Windows 7 Home Premium x64/Windows 7 Professional/Windows 7 Professional x64/Windows 7 Starter/Windows 7 Starter x64
System requirements (Mac operating systems supported)
MacOS
Logistics data (Harmonized System (HS) code)
85176990
Certificates (Compliance certificates)
Federal Communications Commission (FCC)
Operational conditions (Operating temperature (T-T))
System requirements (Linux operating systems supported)
Yes
Design (LED indicators)
Activity,LAN,Power,WLAN
Power (Power source type)
USB
Power (Output current)
1 A
Power (Output voltage)
5 V
Network (Cabling technology)
10/100Base-T(X)
Network (Ethernet LAN data rates)
10/100 Mbit/s
Design (Product type)
Portable router
Security (Security algorithms)
WEP/WPA/WPA2/WPA2-Enterprise/WPA-Enterprise
Management features (Reset button)
Yes
Management features (Web-based management)
Yes
Security (IP address filtering)
Yes
Network (Networking standards)
IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Security (MAC address filtering)
Yes
Protocols (Supported network protocols)
IPv4, IPv6
Management features (Quality of Service (QoS) support)
Yes
Wireless LAN features (Top Wi-Fi standard)
Wi-Fi 4 (802.11n)
Wireless LAN features (Wi-Fi band)
Single-band (2.4 GHz)
Wireless LAN features (Wi-Fi standards)
802.11b/802.11g/Wi-Fi 4 (802.11n)
Wireless LAN features (WLAN data transfer rate (max))
300 Mbit/s
WAN connection (3G/4G USB modem compatibility)
No
WAN connection (DSL WAN)
No
WAN connection (Ethernet WAN)
Yes
WAN connection (SIM card slot)
No
WAN connection (WAN connection type)
RJ-45
Network (Dynamic DNS (DDNS))
Yes
Network (Ethernet LAN interface type)
Fast Ethernet
Network (Port forwarding)
Yes
Network (Port triggering)
Yes
Security (DMZ support)
Yes
Security (Firewall)
Yes
Protocols (DHCP server)
Yes
Protocols (Universal Plug and Play (UPnP))
Yes
Antenna (Antenna design)
Internal
Protocols (DHCP client)
Yes
Network (Number of guest networks (2.4 GHz))
1
Antenna (Antennas quantity)
2
Security (DoS attack prevention)
Yes
Security (Filtering)
Yes
Security (Stateful Packet Inspection (SPI))
Yes
Ports & interfaces (Memory card slot(s))
No
Antenna (Transmit power)
CE: , 20dBm(2.4GHz) , FCC: , 30dBm dBmW
Security (Firewall security)
SPI
Features (Built-in processor)
Yes
Features (Processor cores)
1
Network (VPN Passthrough)
Yes
Antenna (Receive power)
270M: -65dBm@10% PER , 130M: -70dBm@10% PER , 108M: -82dBm@10% PER , 54M: -73dBm@10% PER , 11M: -82dBm@8% PER , 6M: -86dBm@10% PER , 1M: -90dBm@8% PER dBmW
