1xNumber of displays supported, Maximum weight capacity 10 kg, Maximum screen size 109.2 cm (43"), Suitable for TV Yes, Mounting type Desk, Minimum VESA mount 75 x 75 mm, Maximum VESA mount 100 x 100 mm, Height adjustment Yes, Tilt adjustment Yes, Rotating Yes, Colour Black, Weight 3.5 kg
Range Extender, Data transmission speed 1200 Mbps, Number of antennas 2, Wireless Frequency Range 2.4, 5 GHz (11ac), Wireless Transmit Power 17 dBm, Dimensions 80 x 78 x 77 mm

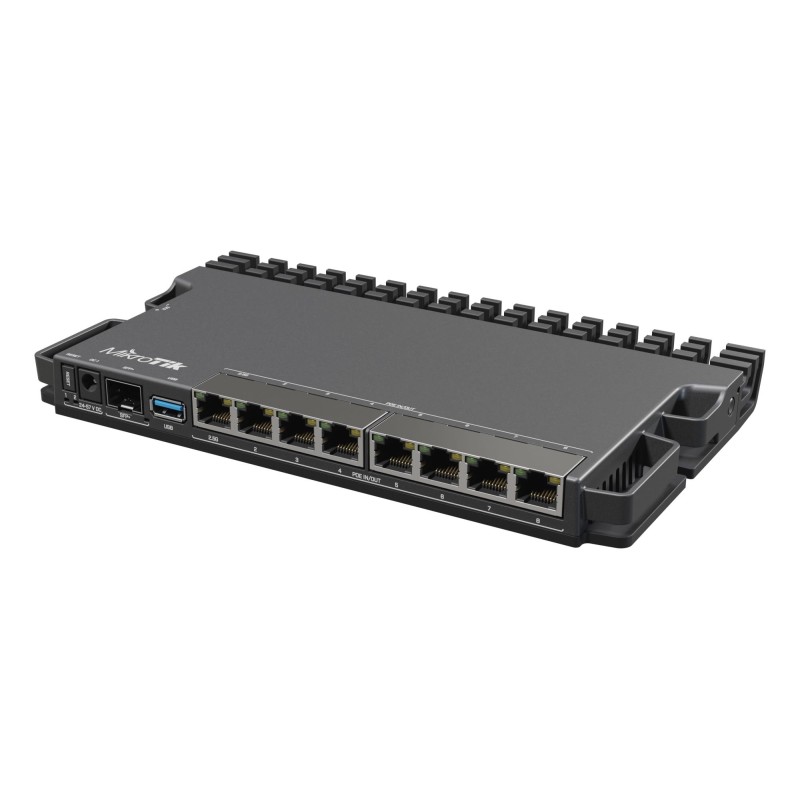

RB5009UG+S+IN, Ethernet WAN Yes, 1xEthernet LAN (RJ-45) ports, 1xPower over Ethernet (PoE) ports quantity, MTBF 200000 h, Colour Black, Power consumption (typical) 20 W, Power over Ethernet (PoE) Yes
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
Mikrotik RB5009UG+S+IN. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. USB version: 3.2 Gen 1 (3.1 Gen 1). Compliance certificates: RoHS. Mean time between fail
Logistics data (Harmonized System (HS) code)
85176990
Certificates (Compliance certificates)
RoHS
Operational conditions (Storage temperature (T-T))
MR60X, Dual-band (2.4 GHz, 5 GHz), Wi-Fi 6 (802.11ax), WLAN data transfer rate (max) 1500 Mbit/s, Ethernet WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type Gigabit Ethernet, 3xEthernet LAN (RJ-45) ports, AC adapter included Yes, Antenna design External, Power source type DC, Operating temperature (T-T) 0 - 40 °C
TL-WR841N, Single-band (2.4 GHz), Wi-Fi 4 (802.11n), WLAN data transfer rate (max) 300 Mbit/s, Ethernet WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type Fast Ethernet, 4xEthernet LAN (RJ-45) ports, AC adapter included Yes, Antenna design External, Power source type DC
Ethernet WAN Yes, SIM card slot Yes, 2xEthernet LAN (RJ-45) ports, 2xPower over Ethernet (PoE) ports quantity, DHCP server Yes, Security algorithms HTTPS/DES/IPSec/SSH/AES/CAST/SSL/TLS/TLS, Internal memory 256 MB, Colour White, Power consumption (typical) 2.5 W, Power over Ethernet (PoE) Yes, Operating temperature (T-T) -40 - 55 °C, Weight 385 g
Wireless Router, Available bandwidth 3600 Mbps, Data transmission speed 2402 Mbps, Mesh, Number of antennas 2, Wireless Frequency Range 2.4 GHz and 5 GHz, Wireless Transmit Power 29 dBm, 5G, Nano-SIM card tray 1, Power supply requirements 12VDC 2A, Colour White, Dimensions 99 × 99 × 190 mm
AC1200 Wireless Dual Band Gigabit Router, Dual-band (2.4 GHz, 5 GHz), Wi-Fi 5 (802.11ac), WLAN data transfer rate (max) 1167 Mbit/s, Ethernet WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type Gigabit Ethernet, 4xEthernet LAN (RJ-45) ports, AC adapter included Yes, Antenna design External, Power source type DC, Operating temperature (T-T)...
Range Extender, Data transmission speed 1500 Mbps, Antenna Type Built-in, Number of antennas 2, Wireless Frequency Range 2.4GHz and 5GHz, Colour White, Dimensions 78×36×149 mm
MR47BE, Tri-band (2.4 GHz, 5 GHz, 6 GHz), Wi-Fi 7 (802.11be), WLAN data transfer rate (max) 9300 Mbit/s, Ethernet WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type 2.5 Gigabit Ethernet, 3xEthernet LAN (RJ-45) ports, Antenna design External, Power source type DC, Operating temperature (T-T) 0 - 40 °C
GS-BE18000, Wireless Router, Available bandwidth 18000 Mbps, Mesh, Number of antennas 8, Wireless Frequency Range 2.4GHz-6GHz, Included Accessories RJ-45 cablePower adapterQuick Start GuideWarranty card, Colour Black, Dimensions Dimensions 225 x 90 x 225 mm
Archer AX17, Dual-band (2.4 GHz, 5 GHz), Wi-Fi 6 (802.11ax), WLAN data transfer rate (max) 1501 Mbit/s, Ethernet WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type Gigabit Ethernet, 4xEthernet LAN (RJ-45) ports, AC adapter included Yes, Antenna design External, Power source type DC, Operating temperature (T-T) 0 - 40 °C
TP-Link Archer AX1500 Dual-Band Wi-Fi 6 Router, Black, Dual-band (2.4 GHz, 5 GHz), Wi-Fi 6 (802.11ax), WLAN data transfer rate (max) 1500 Mbit/s, Ethernet WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type Gigabit Ethernet, 4xEthernet LAN (RJ-45) ports, AC adapter included Yes, Antenna design External, Power source type AC, Weight 370 g
Archer C50, Dual-band (2.4 GHz / 5 GHz), Wi-Fi 5 (802.11ac), WLAN data transfer rate (max) 867 Mbit/s, Ethernet WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type Fast Ethernet, 4xEthernet LAN (RJ-45) ports, USB port Yes, AC adapter included Yes, Antenna design External, Power source type AC, Operating temperature (T-T) 0 - 40 °C
Dual-band (2.4 GHz, 5 GHz), Wi-Fi 6 (802.11ax), Ethernet WAN Yes, 3G/4G USB modem compatibility Yes, Ethernet LAN Yes, Ethernet LAN interface type Gigabit Ethernet, 4G Yes, 3G Yes, 1xEthernet LAN (RJ-45) ports, USB port Yes, Antenna design External, Power source type AC,DC, Weight 346 g
Archer AX72, Dual-band (2.4 GHz, 5 GHz), Wi-Fi 6 (802.11ax), WLAN data transfer rate (max) 5400 Mbit/s, Ethernet WAN Yes, DSL WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type Gigabit Ethernet, 4xEthernet LAN (RJ-45) ports, USB port Yes, Antenna design External, Power source type DC, Operating temperature (T-T) 0 - 40 °C
Archer MR400, Router, Modem, Available bandwidth 1200 Mbps, Number of antennas 2, Wireless Frequency Range 2.4GHz and 5GHz, Wireless Transmit Power 23 dBm, 4G, Power supply requirements 12V, 1A, Colour Black, Dimensions 202 x 141 x 33.6 mm
Single-band (2.4 GHz), Wi-Fi 4 (802.11n), WLAN data transfer rate (max) 300 Mbit/s, Ethernet WAN Yes, Ethernet LAN Yes, Ethernet LAN interface type Fast Ethernet, 5xEthernet LAN (RJ-45) ports, AC adapter included Yes, Antenna design External, Power source type AC, Operating temperature (T-T) 0 - 40 °C
RB5009UG+S+IN, Ethernet WAN Yes, 1xEthernet LAN (RJ-45) ports, 1xPower over Ethernet (PoE) ports quantity, MTBF 200000 h, Colour Black, Power consumption (typical) 20 W, Power over Ethernet (PoE) Yes
