1xNumber of displays supported, Maximum weight capacity 10 kg, Maximum screen size 109.2 cm (43"), Suitable for TV Yes, Mounting type Desk, Minimum VESA mount 75 x 75 mm, Maximum VESA mount 100 x 100 mm, Height adjustment Yes, Tilt adjustment Yes, Rotating Yes, Colour Black, Weight 3.5 kg
Range Extender, Data transmission speed 1200 Mbps, Number of antennas 2, Wireless Frequency Range 2.4, 5 GHz (11ac), Wireless Transmit Power 17 dBm, Dimensions 80 x 78 x 77 mm
Type Unmanaged, 9xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10, 100), Half duplex Yes, Full duplex Yes, Switching capacity 1.6 Gbit, s, Forwarding rate 1.3392 Mpps, Product colour Black, Power source DC, PoE, Power over Ethernet (PoE) Yes, 8xPower over Ethernet plus (PoE+) ports quantity, Power over Ethernet (PoE) power per port 30 W, Total Power over Ethernet (PoE) budget 65 W, Width 171 mm, Depth 98 mm, Height 27 mm

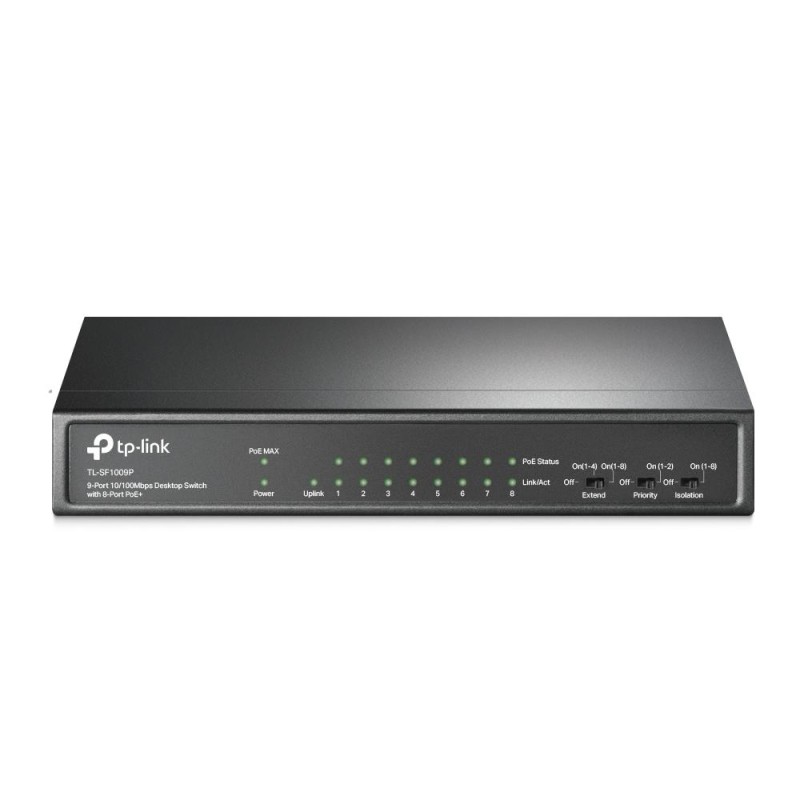

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance —Up to 250 m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Ideal for IP Surveillance —Higher Performance and Security Priority Mode and Isolation Mode make surveillance smoother and safer.
Intelligent Power Management When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
9× 10/100 Mbps RJ45 ports
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Type Unmanaged, 9xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10, 100), Half duplex Yes, Full duplex Yes, Switching capacity 1.6 Gbit, s, Forwarding rate 1.3392 Mpps, Product colour Black, Power source DC, PoE, Power over Ethernet (PoE) Yes, 8xPower over Ethernet plus (PoE+) ports quantity, Power over Ethernet (PoE) power per port 30 W, Total Power over Ethernet (PoE) budget 65 W, Width 171 mm, Depth 98 mm, Height 27 mm
