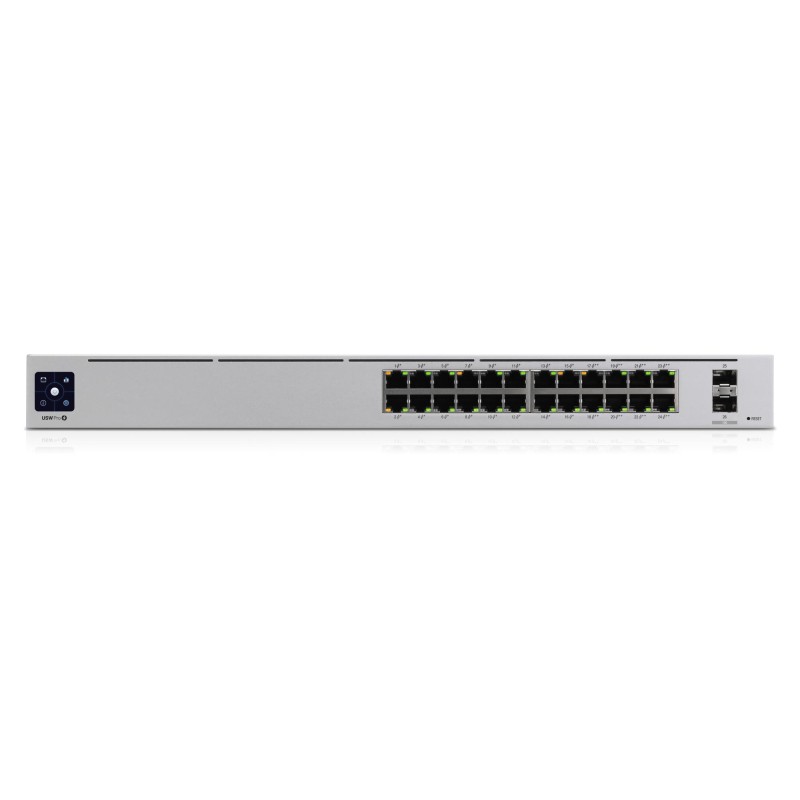

Võrgulüliti UBIQUITI USW-Pro-24-PoE Type L3 Desktop pedestal Rack 24x10Base-T 100Base-TX 1000Base-T 2xSFP+ PoE ports 24 PoE+

Lisainfo

Müüja koduleht

https://switch.ui.com/gen2/

Mudeli nimi

USW-Pro-24-PoE

Garantija

12

Category Code

SWI

Unit Box Height

0.38

Unit Box Length

0.51

Unit Box Width

0.125

Units per Shipping Box

2

Unit Calculated Volume

0.03005 cubm

Unit Calculated Weight

6.5 kg

Summary

Ubiquiti UniFi Pro 24-Port PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switchi

Weight & dimensions (Width)

442.4 mm

Weight & dimensions (Depth)

285.4 mm

Weight & dimensions (Height)

43.7 mm

Weight & dimensions (Weight)

4300 g

Power (Power source)

AC

Logistics data (Harmonized System (HS) code)

85176990

Operational conditions (Operating temperature (T-T))

-5 - 40 C

Design (Product colour)

Silver

Power (AC input frequency)

50 - 60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

450 W

Certificates (Certification)

CE, FCC, IC

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (Form factor)

1U

Design (LED indicators)

Activity/Link/PoE/Speed/System

Design (Reset button)

Yes

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.3af/IEEE 802.3at

Power (Number of power supply units)

1

Design (Display type)

LCM

Management features (Switch layer)

L2/L3

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

24

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

Yes

Data transmission (Forwarding rate)

65.472 Mpps

Data transmission (Switching capacity)

88 Gbit/s

Data transmission (Throughput)

44000 Mpps

Design (Rack mounting)

Yes

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Ports & interfaces (SFP+ module slots quantity)

2

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (VLAN support)

Yes

Security (Authentication type)

IEEE 802.1x,RADIUS

Ports & interfaces (Power connector)

AC-in jack

Data transmission (Static route)

Yes

Security (DHCP features)

DHCP relay/DHCP server/DHCP snooping

Data transmission (MAC address table)

16000 entries

Data transmission (Packet buffer memory)

2 MB

Network (Full duplex)

Yes

Data transmission (Jumbo frames support)

Yes

Management features (Quality of Service (QoS) support)

Yes

Network (Number of VLANs)

1000

Power (Redundant power supply (RPS) support)

Yes

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

400 W

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

64 W

Network (Rate limiting)

Yes

Security (IGMP snooping)

Yes

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

16

Management features (System event log)

Yes

Network (IPv4 routes)

64

Power over Ethernet (PoE) (Power over Ethernet 4PPoE (PoE++) ports quantity)

8

Eriviited

ean13

817882027649

MPN

1282411
