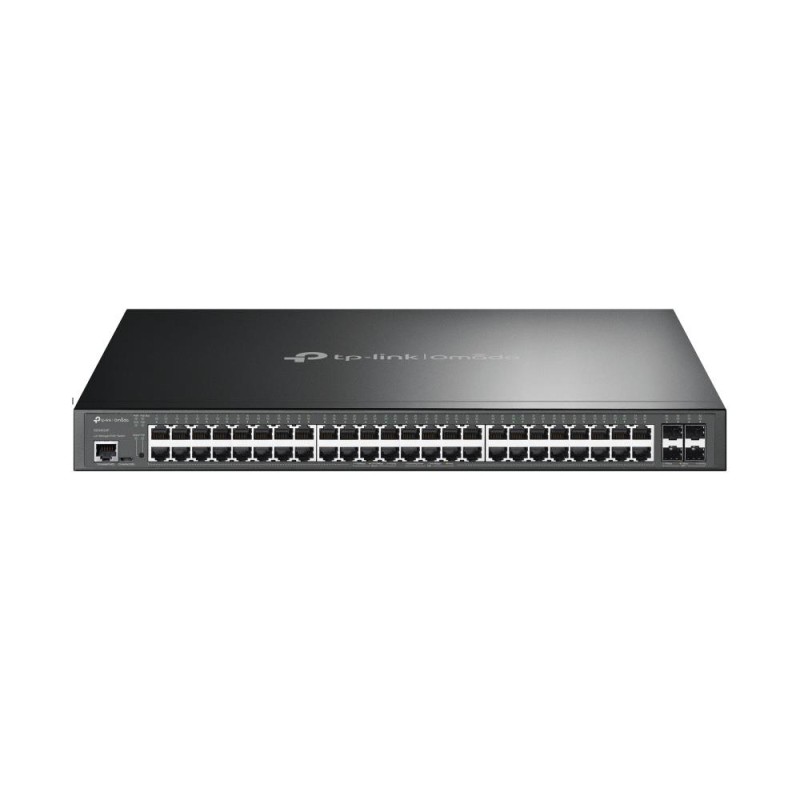

Switch|TP-LINK|Omada|TL-SG3452XP|Type L2+|Rack|48x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|1|1|PoE+ ports 48|500 Watts|TL-SG345

Tootekood TL-SG3452XP

Kaubamärk TP-LINK

735,32 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Viimane laos!

Tarneaeg 2-5 tööpäeva. : 1 Ühik

Kirjeldus
Üldine informatsioon

Kirjeldus

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

4× 10 Gbps SFP+ slots
48× Gigabit 802.3af/at PoE+ ports
500 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

Üldine informatsioon

Kaubamärk TP-LINK

Tootekood TL-SG3452XP

Tarneaeg 2-5 tööpäeva. 1 Ühik

Lisainfo

Müüja koduleht: https://www.tp-link.com/en/business-networking/omada-switch-poe/sg3452xp/
Mudeli nimi: TL-SG3452XP
Garantija: 60
Seeria: Omada
Category Code: SWI
Unit Box Height: 0.1
Unit Box Length: 0.53
Unit Box Width: 0.44
Units per Shipping Box: 1
Unit Calculated Volume: 0.02332 cubm
Unit Calculated Weight: 6.6 kg
Summary: TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48,
Weight & dimensions (Width): 440 mm
Weight & dimensions (Depth): 330 mm
Weight & dimensions (Height): 44 mm
Packaging content (Quick start guide): Yes
Packaging content (Cables included): AC
Power (Power source): AC
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Design (Product colour): Black
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (max)): 635.7 W
Design (Number of fans): 3 fan(s)
Certificates (Certification): CE, FCC, RoHS
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Form factor): 1U
Design (LED indicators): Yes
Design (Reset button): Yes
Management features (Web-based management): Yes
Network (Networking standards): IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
Management features (Cloud-managed): Yes
Management features (Switch layer): L2+
Management features (Switch type): Managed
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 48
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): Yes
Data transmission (Forwarding rate): 130.9 Mpps
Data transmission (Switching capacity): 176 Gbit/s
Design (Rack mounting): Yes
Power (Power supply included): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Ports & interfaces (SFP+ module slots quantity): 4
Network (Broadcast storm control): Yes
Network (Flow control support): Yes
Network (Link aggregation): Yes
Network (Port mirroring): Yes
Network (Spanning tree protocol): Yes
Network (VLAN support): Yes
Ports & interfaces (Power connector): AC-in jack
Security (DHCP features): DHCP client/DHCP relay/DHCP server
Data transmission (MAC address table): 16000 entries
Data transmission (Packet buffer memory): 12 MB
Ports & interfaces (Console port): RJ-45/micro-USB
Data transmission (Jumbo frames): 9000
Data transmission (Jumbo frames support): Yes
Data transmission (Store-and-forward): Yes
Operational conditions (Heat dissipation): 2169.2 BTU/h
Security (MAC address filtering): Yes
Management features (Quality of Service (QoS) support): Yes
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 500 W
Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port): 30 W
Network (Rate limiting): Yes
Security (IGMP snooping): Yes
Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity): 48
Management features (ARP inspection): Yes
Management features (Configuring Location Settings (CLI)): Yes
Management features (System event log): Yes
Network (Head-of-line (HOL) blocking): Yes
Security (Access Control List (ACL)): Yes
Security (Authentication): Auto VLAN,Guest VLAN
Security (BPDU filtering/protection): Yes
Security (IP-MAC-Port binding): Yes
Security (SSH/SSL support): Yes
Security (Static port security): Yes
Multicast features (Multicast support): Yes
