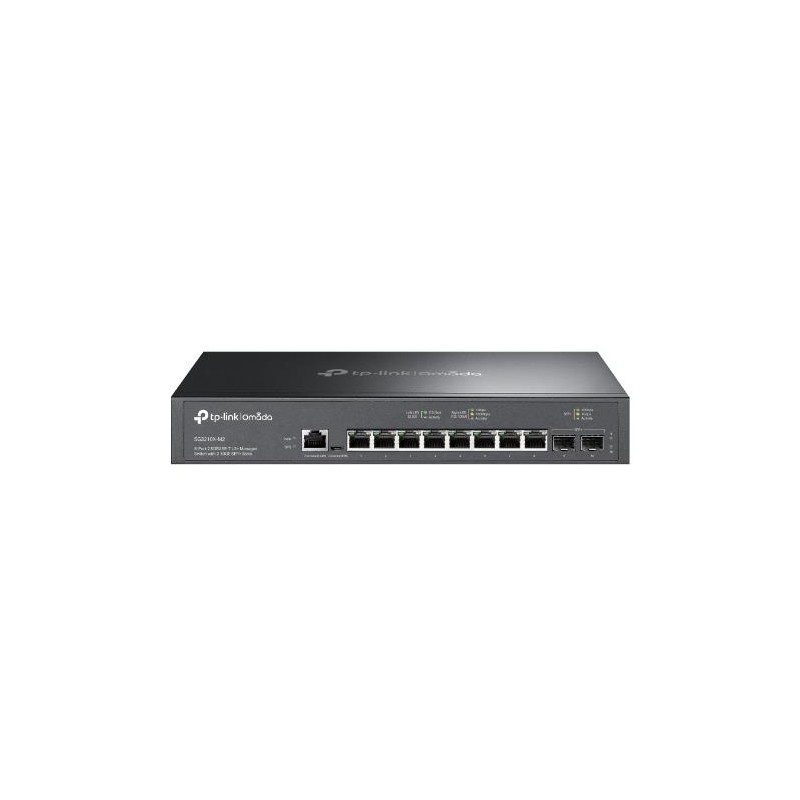

Switch|TP-LINK|Omada|SG3210X-M2|Type L2+|Desktop/pedestal|Rack|8x2.5GbE|2xSFP+|1xConsole|1|SG3210X-M2

Tootekood SG3210X-M2

Kaubamärk TP-LINK

234,51 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Viimane laos!

Tarneaeg 2-5 tööpäeva. : 1 Ühik

Kirjeldus
Üldine informatsioon

Kirjeldus

Ultrafast 2.5G Managed Switch with 10G Uplink for Futuristic Network
SG3210X-M2

10G Lightning-Fast
Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

2.5G Ports
for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs

Centralized Cloud
Management
SDN Solutions Integration for a Highly Efficient Network

Advanced L2+
Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More

Enterprise Switch
with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices
10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Static Routing: Helps route internal traffic for more efficient use of network resources
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Üldine informatsioon

Kaubamärk TP-LINK

Tootekood SG3210X-M2

Tarneaeg 2-5 tööpäeva. 1 Ühik

Lisainfo

Müüja koduleht: https://www.tp-link.com/uk/business-networking/managed-switch/sg3210x-m2/
Mudeli nimi: SG3210X-M2
Garantija: 60
Seeria: Omada
Category Code: SWI
Unit Box Height: 0.082
Unit Box Length: 0.405
Unit Box Width: 0.25
Units per Shipping Box: 1
Unit Calculated Volume: 0.008303 cubm
Unit Calculated Weight: 2.1 kg
Summary: TP-Link Omada 8-Port 2.5G L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address t
Weight & dimensions (Width): 294 mm
Weight & dimensions (Depth): 180 mm
Weight & dimensions (Height): 44 mm
Packaging data (Package width): 528 mm
Packaging data (Package depth): 250 mm
Packaging data (Package height): 80 mm
Packaging data (Package weight): 2840 g
Packaging content (Quick start guide): Yes
Packaging content (Cables included): AC
Power (Power source): AC
Packaging data (Package type): Box
Logistics data (Harmonized System (HS) code): 85176990
Operational conditions (Operating temperature (T-T)): 0 - 50 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Design (Product colour): Black
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (typical)): 15 W
Design (Number of fans): 2 fan(s)
Certificates (Certification): CE, FCC, RoHS
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Form factor): 1U
Design (LED indicators): Yes
Network (Ethernet LAN data rates): 100,1000,2500 Mbit/s
Security (Password protection): Yes
Security (Security algorithms): HTTPS/SSH/SSH-2/SSL/TLS
Management features (Web-based management): Yes
Network (Networking standards): IEEE 802.1D/IEEE 802.1s/IEEE 802.1w
Management features (Cloud-managed): Yes
Management features (Switch layer): L2+
Management features (Switch type): Managed
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 8
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): 2.5G Ethernet (100/1000/2500)
Network (10G support): Yes
Data transmission (Forwarding rate): 59.52 Mpps
Data transmission (Switching capacity): 80 Gbit/s
Design (Rack mounting): Yes
Power (Power supply included): Yes
Ports & interfaces (SFP+ module slots quantity): 2
Network (Broadcast storm control): Yes
Network (Flow control support): Yes
Network (Link aggregation): Yes
Network (Port mirroring): Yes
Network (Spanning tree protocol): Yes
Network (VLAN support): Yes
Security (Authentication type): AAA,TACACS+
Ports & interfaces (Power connector): AC-in jack
Data transmission (Static route): Yes
Security (DHCP features): DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
Data transmission (MAC address table): 16000 entries
Data transmission (Packet buffer memory): 12 MB
Ports & interfaces (Console port): RJ-45/micro-USB
Data transmission (Jumbo frames): 9000
Data transmission (Jumbo frames support): Yes
Operational conditions (Heat dissipation): 51.18 BTU/h
Security (MAC address filtering): Yes
Performance (Fanless): Yes
Management features (Quality of Service (QoS) support): Yes
Network (Number of VLANs): 4000
Network (Virtual LAN features): MAC address-based VLAN/Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
Security (Loop protection): Yes
Ports & interfaces (2.5G Ethernet (copper) ports quantity): 8
Network (Rate limiting): Yes
Security (IGMP snooping): Yes
Management features (ARP inspection): Yes
Management features (Configuring Location Settings (CLI)): Yes
Management features (MIB support): RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Management features (System event log): Yes
Management features (Traffic classification): Yes
Network (Head-of-line (HOL) blocking): Yes
Network (IP routing): Yes
Security (Access Control List (ACL)): Yes
Security (Authentication): MAC-based authentication,Port-based authentication
Security (BPDU filtering/protection): Yes
Security (IP-MAC-Port binding): Yes
Security (Queue scheduling algorithms): SP/Weighted Round Robin (WRR)/WRR+SP
Security (SSH/SSL support): Yes
Security (Static port security): Yes
Multicast features (Multicast Listener Discovery (MLD) snooping): Y
Multicast features (Multicast support): Yes
Protocols (Management protocols): SNMPv1/v2c/v3, SNTP
Data transmission (Number of static routes): 48
Protocols (GARP VLAN Registration Protocol (GVRP)): Yes
Data transmission (Number of IP interfaces): 16
