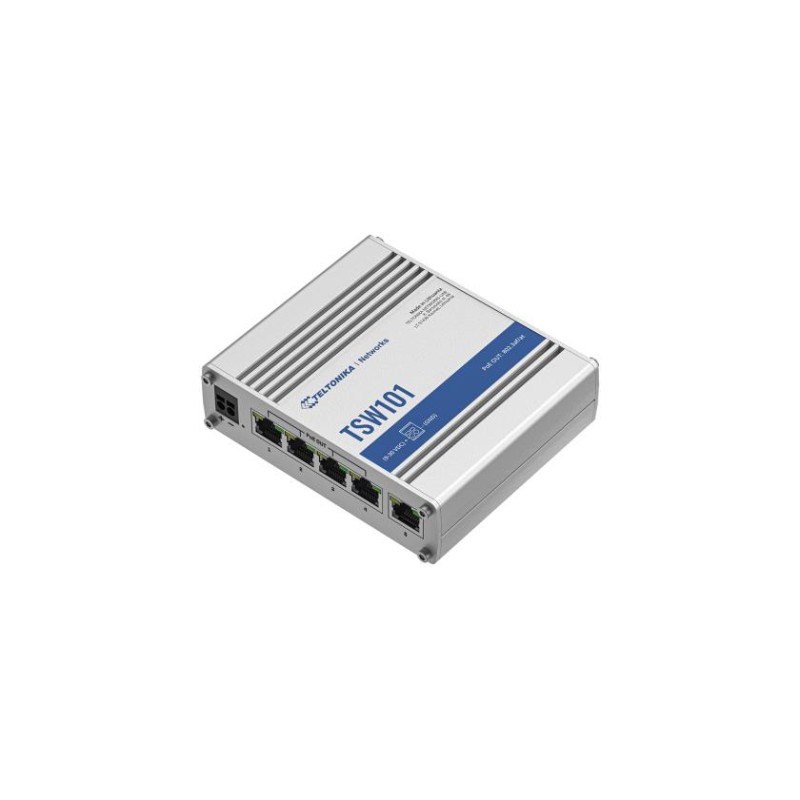

Võrgulüliti TELTONIKA TSW101000000 PoE ports 4 60 Watts TSW101

Lisainfo

Müüja koduleht

https://teltonika-networks.com/products/switches/tsw101

Mudeli nimi

TSW101000000

Garantija

24

Mudel

TSW101

Category Code

SWI

Unit Box Height

0.15

Unit Box Length

0.17

Unit Box Width

0.035

Units per Shipping Box

1

Unit Calculated Volume

0.0008925 cubm

Unit Calculated Weight

0.44 kg

Summary

Teltonika TSW101. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az,

Weight & dimensions (Width)

115 mm

Weight & dimensions (Depth)

32 mm

Weight & dimensions (Height)

95 mm

Weight & dimensions (Weight)

354 g

Power (Power source)

DC

Logistics data (Harmonized System (HS) code)

851762

Operational conditions (Operating temperature (T-T))

-40 - 75 C

Design (Product colour)

Metallic

Power (Power consumption (max))

2.31 W

Power (Power consumption (typical))

0.64 W

Design (Housing material)

Aluminium

Certificates (Certification)

CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (LED indicators)

Power/Status

Network (Ethernet LAN data rates)

10,100,1000 Mbit/s

Design (International Protection (IP) code)

IP30

Network (Networking standards)

IEEE 802.3/IEEE 802.3az/IEEE 802.3u

Power (Input voltage)

9 - 30 V

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

5

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Switching capacity)

10 Gbit/s

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Ports & interfaces (Power connector)

Terminal block (2-pin)

Data transmission (MAC address table)

2000 entries

Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity)

4

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

9216

Data transmission (Jumbo frames support)

Yes

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

120 W

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

30 W

Power over Ethernet (PoE) (Power over Ethernet (PoE) type supported)

Passive PoE

Eriviited

ean13

4779051840113

MPN

1435098
