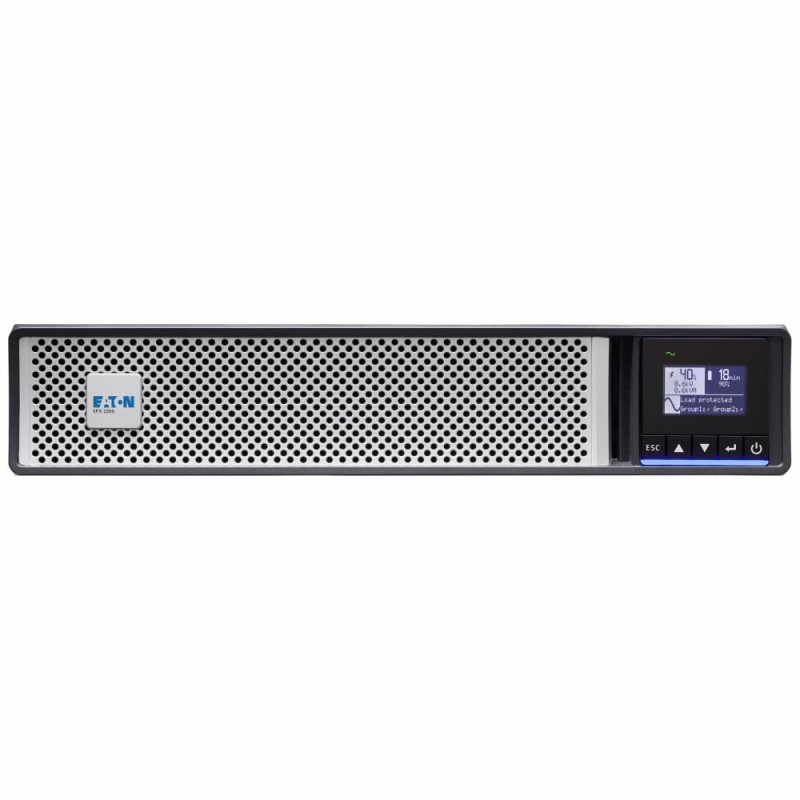

UPS topology Line-Interactive, Output power capacity 2.2 kVA, Output power 2200 W, Waveform Pure sine, Input operation voltage (min) 160 V, Input operation voltage (max) 294 V, Input frequency 47/70 Hz, AC outlet types C13 coupler/C19 coupler, Power plug C20 coupler, USB port Yes, Serial interface Yes, Form factor Rackmount/Tower, Colour Black, Display type LCD, LED indicators Yes, Operating temperature (T-T) 0 - 40 °C, Weight 28.2 kg
Exceptional efficiency, manageability and energy metering capabilities for IT managers
Performance and efficiency
- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers. - Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs. - When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers. - Each 5PX Gen2 battery configuration provides the best size /runtime ratio.
Management and Cybersecurity
- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities. - 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions. - Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost. - 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software. - Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Availability and flexibility
- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models. - 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups). - Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%. - Up to 4 external hot-swappable battery modules can be added for longer power availability.
