1xNumber of displays supported, Maximum weight capacity (per display) 45 kg, Maximum weight capacity 45 kg, Minimum screen size 40 ", Maximum screen size 70 ", Minimum VESA mount 200 x 100 mm, Maximum VESA mount 600 x 400 mm, Mounting type Pole, Tilt adjustment Yes, Tilt angle range -2 - 12 °, Swivelling Yes, Rotating Yes, Distance to the wall (min) 82 mm, Housing material Steel, Colour Black, Weight 9.5 kg

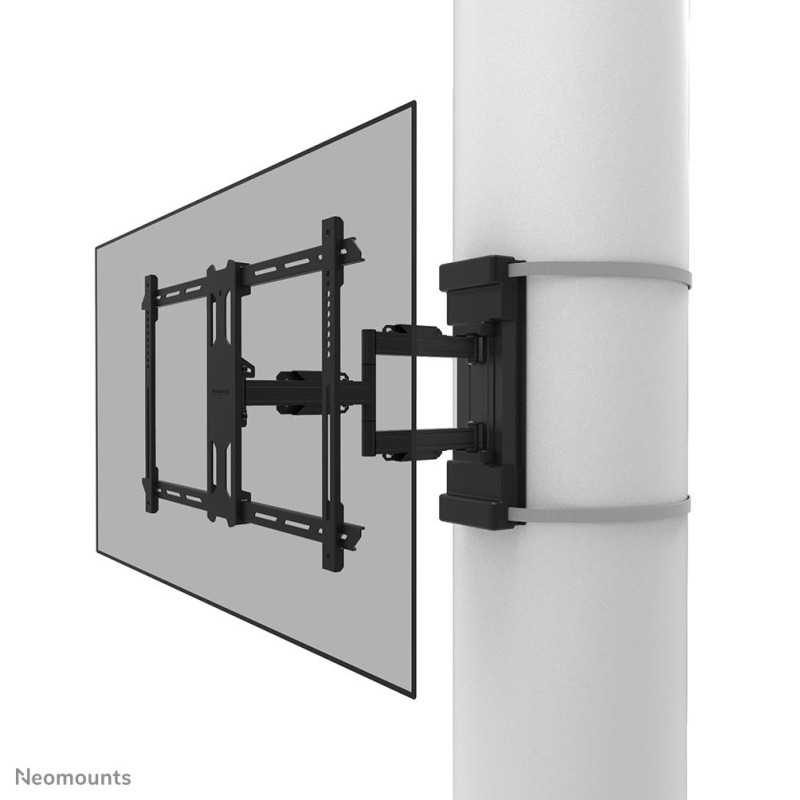

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.
The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.
The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm. Maximum weight capacity: 45 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. T
Weight & dimensions (Width)
710 mm
Weight & dimensions (Depth)
590 mm
Weight & dimensions (Height)
520 mm
Weight & dimensions (Weight)
9500 g
Packaging data (Package width)
386 mm
Packaging data (Package depth)
95 mm
Packaging data (Package height)
744 mm
Packaging data (Package weight)
11100 g
Logistics data (Harmonized System (HS) code)
7326909890
Logistics data (Master (outer) case gross weight)
22800 g
Logistics data (Master (outer) case height)
764 mm
Logistics data (Master (outer) case length)
406 mm
Logistics data (Master (outer) case width)
205 mm
Logistics data (Products per master (outer) case)
2 pc(s)
Technical details (Warranty period)
5 year(s)
Design (Product colour)
Black
Design (Housing material)
Steel
Ergonomics (Tilt adjustment)
Yes
Ergonomics (Tilt angle range)
-2 - 12
Ergonomics (Pivot angle)
-3 - 3
Ergonomics (Swivel angle range)
-45 - 45
Ergonomics (Swivelling)
Yes
Packaging content (Mounting kit)
Yes
Ergonomics (Cable management)
Yes
Logistics data (Products per pallet (EU))
34 pc(s)
Logistics data (Master (outer) case net weight)
19000 g
Mounting (Maximum screen size)
70 "
Mounting (Maximum VESA mount)
600 x 400 mm
Mounting (Maximum weight capacity)
45 kg
Mounting (Maximum weight capacity (per display))
45 kg
Mounting (Minimum screen size)
40 "
Mounting (Minimum VESA mount)
200 x 100 mm
Mounting (Mounting type)
Pole
Mounting (Number of displays supported)
1
Mounting (Panel mounting interface)
200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/600 x 200/600 x 300/600 x 400 mm
Ergonomics (Angle of rotation)
6
Ergonomics (Rotating)
Yes
Ergonomics (Adjustable depth)
Yes
Ergonomics (Distance to the wall (max))
590 mm
Ergonomics (Type)
Full motion
Technical details (Country of origin)
China
Technical details (Package net weight)
11100 g
Weight & dimensions (Depth (max))
590 mm
Weight & dimensions (Depth (min))
82 mm
Technical details (Lockable)
Not lockable
Other features (Depth adjustment range)
82 - 590 mm
Ergonomics (Distance to the wall (min))
82 mm
Technical details (Compatible pole diameter (max))
1000 mm
Technical details (Compatible pole diameter (min))
1xNumber of displays supported, Maximum weight capacity (per display) 8 kg, Maximum weight capacity 8 kg, Minimum screen size 17 ", Maximum screen size 32 ", Minimum VESA mount 75 x 75 mm, Maximum VESA mount 100 x 100 mm, Mounting type Pole, Tilt adjustment Yes, Tilt angle range -30 - 30 °, Swivelling Yes, Rotating Yes, Distance to the wall...
1xNumber of displays supported, Maximum weight capacity (per display) 45.5 kg, Maximum weight capacity 55.5 kg, Minimum screen size 40 ", Maximum screen size 70 ", Minimum VESA mount 100 x 100 mm, Maximum VESA mount 600 x 400 mm, Mounting type Floor, Height adjustment Yes, Wheels Yes, Colour Black, Housing material Steel, Plastic
1xNumber of displays supported, Maximum weight capacity (per display) 25 kg, Maximum weight capacity 25 kg, Minimum screen size 23 ", Maximum screen size 42 ", Minimum VESA mount 75 x 75 mm, Maximum VESA mount 200 x 200 mm, Mounting type Pole, Tilt adjustment Yes, Tilt angle range -15 - 10 °, Swivelling Yes, Rotating Yes, Distance to the wall...
1xNumber of displays supported, Maximum weight capacity (per display) 40 kg, Maximum weight capacity 40 kg, Minimum screen size 40 ", Maximum screen size 65 ", Minimum VESA mount 200 x 100 mm, Maximum VESA mount 600 x 400 mm, Mounting type Wall, Tilt adjustment Yes, Tilt angle range -2 - 12 °, Swivelling Yes, Rotating Yes, Distance to the wall...

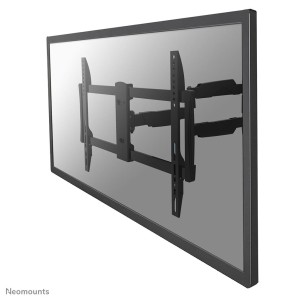

1xNumber of displays supported, Maximum weight capacity (per display) 30 kg, Maximum weight capacity 30 kg, Minimum screen size 32 ", Maximum screen size 60 ", Minimum VESA mount 200 x 200 mm, Maximum VESA mount 600 x 400 mm, Mounting type Wall, Tilt adjustment Yes, Tilt angle range 0 - 25 °, Swivelling Yes, Rotating Yes, Distance to the wall...
1xNumber of displays supported, Maximum weight capacity (per display) 35 kg, Maximum weight capacity 35 kg, Minimum screen size 32 ", Maximum screen size 65 ", Minimum VESA mount 100 x 100 mm, Maximum VESA mount 400 x 400 mm, Mounting type Wall, Tilt adjustment Yes, Tilt angle range -5 - 8 °, Swivelling Yes, Distance to the wall (min) 55 mm,...

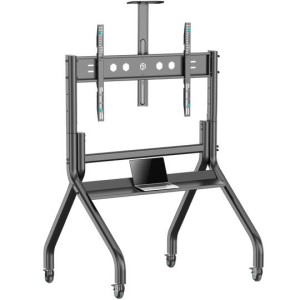

1xNumber of displays supported, Maximum weight capacity (per display) 120 kg, Maximum weight capacity 150 kg, Minimum screen size 60 ", Maximum screen size 120 ", Minimum VESA mount 200 x 200 mm, Maximum VESA mount 1000 x 600 mm, Mounting type Floor, Height adjustment Yes, Wheels Yes, Colour Black, Housing material Steel, Plastic
1xNumber of displays supported, Maximum weight capacity (per display) 60 kg, Maximum weight capacity 60 kg, Minimum screen size 45 ", Maximum screen size 90 ", Minimum VESA mount 200 x 200 mm, Maximum VESA mount 800 x 400 mm, Mounting type Desk, Height adjustment Yes, Housing material Steel, Colour Black
1xNumber of displays supported, Maximum weight capacity (per display) 150 kg, Maximum weight capacity 150 kg, Minimum screen size 60 ", Maximum screen size 100 ", Minimum VESA mount 200 x 200 mm, Maximum VESA mount 1200 x 800 mm, Mounting type Wall, Distance to the wall (min) 30 mm, Housing material Steel, Colour Black, Weight 8.2 kg
1xNumber of displays supported, Maximum weight capacity (per display) 75 kg, Maximum weight capacity 75 kg, Minimum screen size 37 ", Maximum screen size 75 ", Minimum VESA mount 200 x 200 mm, Maximum VESA mount 400 x 600 mm, Mounting type Wall, Tilt adjustment Yes, Tilt angle range -10 - 5 °, Housing material Steel, Colour Black, Anti-theft...

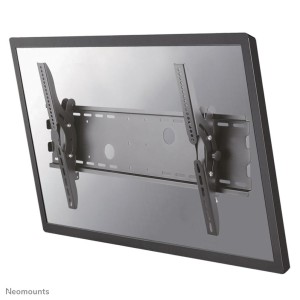

1xNumber of displays supported, Maximum weight capacity (per display) 100 kg, Maximum weight capacity 100 kg, Minimum screen size 37 ", Maximum screen size 85 ", Minimum VESA mount 200 x 200 mm, Maximum VESA mount 865 x 480 mm, Mounting type Wall, Tilt adjustment Yes, Tilt angle range 0 - 30 °, Housing material Steel, Colour Black, Weight 5.39 kg
