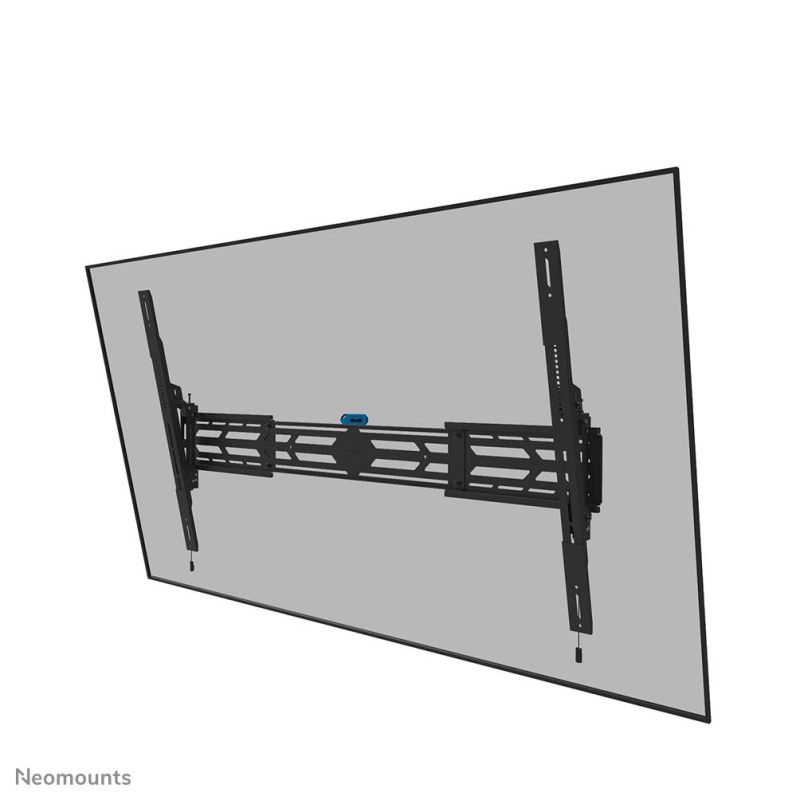

The Neomounts WL35S-950BL19 is a tiltable heavy-duty wall mount for flat screens up to 115" with a maximum weight capacity of 160 kg. The versatile tilt technology, with 3 lockable tilt presets (4°, 8° and 12°), allows you to create the optimum viewing angle. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.
The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 115". It is possible to lock the mount using a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Neomounts WL35S-950BL19 Heavy duty wall mount 55-115" - tiltable - lockable - landscape and portrait. Maximum weight capacity: 160 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.92 m (115"), Minimum VESA mount: 100 x 100 mm, Maximum VESA
Weight & dimensions (Width)
1600 mm
Weight & dimensions (Depth)
90 mm
Weight & dimensions (Height)
936 mm
Weight & dimensions (Weight)
11050 g
Packaging data (Package width)
222 mm
Packaging data (Package depth)
98 mm
Packaging data (Package height)
918 mm
Packaging data (Package weight)
12500 g
Logistics data (Harmonized System (HS) code)
7326909890
Logistics data (Master (outer) case gross weight)
25700 g
Logistics data (Master (outer) case height)
938 mm
Logistics data (Master (outer) case length)
242 mm
Logistics data (Master (outer) case width)
211 mm
Logistics data (Products per master (outer) case)
2 pc(s)
Technical details (Warranty period)
5 year(s)
Design (Product colour)
Black
Design (Housing material)
Steel
Ergonomics (Height adjustment)
Yes
Ergonomics (Tilt adjustment)
Yes
Ergonomics (Tilt angle range)
0 - 12
Ergonomics (Pivot angle)
-3 - 3
Logistics data (Products per pallet (EU))
36 pc(s)
Logistics data (Master (outer) case net weight)
22100 g
Mounting (Maximum screen size)
115 "
Mounting (Maximum VESA mount)
1500 x 900 mm
Mounting (Maximum weight capacity)
160 kg
Mounting (Maximum weight capacity (per display))
160 kg
Mounting (Minimum screen size)
55 "
Mounting (Minimum VESA mount)
100 x 100 mm
Mounting (Mounting type)
Wall
Mounting (Number of displays supported)
1
Mounting (Panel mounting interface)
100 x 100/100 x 150/100 x 200/1000 x 400/1000 x 600/1000 x 700/1000 x 800/1200 x 600/1200 x 800/1200 x 900/1400 x 800/1500 x 600/1500 x 900/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 900/350 x 350/400 x/400 x 200/400 x 300
