1xNumber of displays supported, Maximum weight capacity (per display) 125 kg, Maximum weight capacity 125 kg, Minimum screen size 42 ", Maximum screen size 86 ", Minimum VESA mount 100 x 100 mm, Maximum VESA mount 600 x 400 mm, Mounting type Wall, Height adjustment Yes, Colour Black, Housing material Steel, Weight 4.9 kg

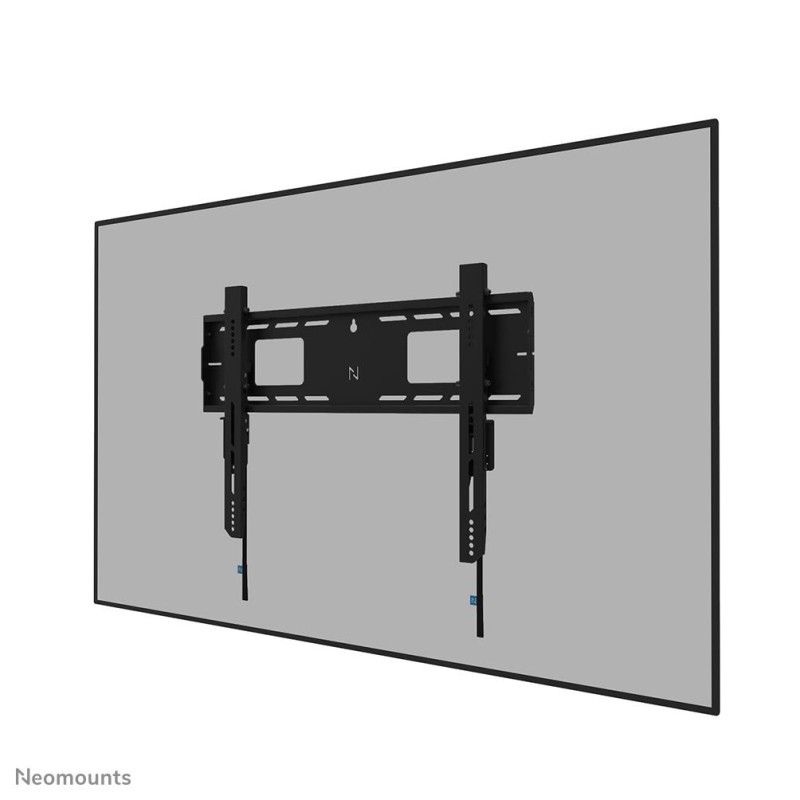

The Neomounts WL30-750BL16 LEVEL is the ultimate solution for securely mounting an interactive or heavy weight display up to 86" with a maximum capacity of 125 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL16 feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.
The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.
The WL30-750BL16 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.
For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.
Neomounts WL30-750BL16 Heavy duty wall mount 42-86" - fixed - lockable - fast installation - T V. Maximum weight capacity: 125 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount
Weight & dimensions (Width)
686 mm
Weight & dimensions (Depth)
42 mm
Weight & dimensions (Height)
484 mm
Weight & dimensions (Weight)
4900 g
Packaging data (Package width)
728 mm
Packaging data (Package depth)
53 mm
Packaging data (Package height)
209 mm
Packaging data (Package weight)
6000 g
Logistics data (Harmonized System (HS) code)
7326909890
Logistics data (Master (outer) case gross weight)
24400 g
Logistics data (Master (outer) case height)
231 mm
Logistics data (Master (outer) case length)
227 mm
Logistics data (Master (outer) case width)
746 mm
Logistics data (Products per master (outer) case)
4 pc(s)
Design (Product colour)
Black
Design (Housing material)
Steel
Ergonomics (Height adjustment)
Yes
Ergonomics (Cable management)
Yes
Logistics data (Products per pallet (EU))
100 pc(s)
Logistics data (Master (outer) case net weight)
19600 g
Mounting (Maximum screen size)
86 "
Mounting (Maximum VESA mount)
600 x 400 mm
Mounting (Maximum weight capacity)
125 kg
Mounting (Maximum weight capacity (per display))
125 kg
Mounting (Minimum screen size)
42 "
Mounting (Minimum VESA mount)
100 x 100 mm
Mounting (Mounting type)
Wall
Mounting (Number of displays supported)
1
Mounting (Panel mounting interface)
100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm
