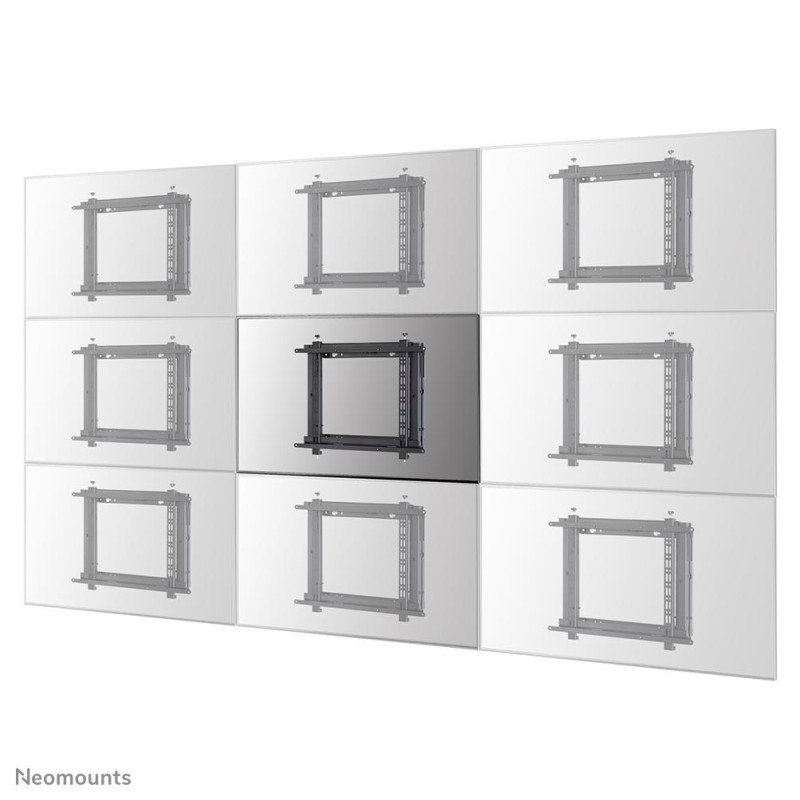

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.
The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg. Maximum weight capacity: 35 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height a
Weight & dimensions (Width)
620 mm
Weight & dimensions (Depth)
84 mm
Weight & dimensions (Height)
510 mm
Weight & dimensions (Weight)
7720 g
Packaging data (Package width)
570 mm
Packaging data (Package depth)
110 mm
Packaging data (Package height)
620 mm
Packaging data (Package weight)
9800 g
Packaging data (Package type)
Box
Logistics data (Harmonized System (HS) code)
7326909890
Logistics data (Master (outer) case gross weight)
9800 g
Logistics data (Master (outer) case height)
620 mm
Logistics data (Master (outer) case length)
110 mm
Logistics data (Master (outer) case width)
570 mm
Logistics data (Products per master (outer) case)
1 pc(s)
Technical details (Warranty period)
5 year(s)
Design (Product colour)
Black
Design (Housing material)
Steel
Ergonomics (Height adjustment)
Yes
Ergonomics (Tilt adjustment)
Yes
Ergonomics (Swivelling)
Yes
Other features (Country of origin)
China
Ergonomics (Cable management)
No
Logistics data (Products per pallet (EU))
24 pc(s)
Logistics data (Master (outer) case net weight)
8500 g
Mounting (Maximum screen size)
70 "
Mounting (Maximum VESA mount)
600 x 400 mm
Mounting (Maximum weight capacity)
35 kg
Mounting (Maximum weight capacity (per display))
35 kg
Mounting (Minimum screen size)
42 "
Mounting (Minimum VESA mount)
200 x 200 mm
Mounting (Mounting type)
Wall
Mounting (Number of displays supported)
1
Mounting (Panel mounting interface)
200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/600 x 200/600 x 300/600 x 400 mm
Ergonomics (Height adjustment range)
0 - 13 mm
Ergonomics (Width adjustment)
40 mm
Ergonomics (Height adjustment type)
Manual
Design (Accepts padlock)
No
Ergonomics (Distance to the wall (max))
266 mm
Technical details (Package net weight)
9800 g
Technical details (Easy to install)
Yes
Other features (Depth adjustment range)
0 - 4 mm
Ergonomics (Distance to the wall (min))
78 mm
Technical details (Orientation)
Landscape/Portrait
Logistics data (Quantity per master (outer) case)
1 pc(s)
Ergonomics (Depth adjustment)
4 mm
Weight & dimensions (Width adjustment range)
0 - 40 mm
Eriviited
ean13
8717371440541
MPN
1403399
1xNumber of displays supported, Maximum weight capacity (per display) 35 kg, Maximum weight capacity 35 kg, Minimum screen size 42 ", Maximum screen size 70 ", Mounting type Wall, Minimum VESA mount 200 x 200 mm, Maximum VESA mount 600 x 400 mm, Height adjustment Yes, Swivelling Yes, Tilt adjustment Yes, Colour Black, Weight 7.72 kg
