Kirjeldus
High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Üldine informatsioon
Tootekood
GPB-500S
Tarneaeg 2-5 tööpäeva.
50 Tooted
Lisainfo
Müüja koduleht
https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
Garantija
24
Category Code
PSU
Unit Box Height
0.155
Unit Box Length
0.2
Unit Box Width
0.09
Units per Shipping Box
10
Unit Calculated Volume
0.004481 cubm
Unit Calculated Weight
1.37 kg
Summary

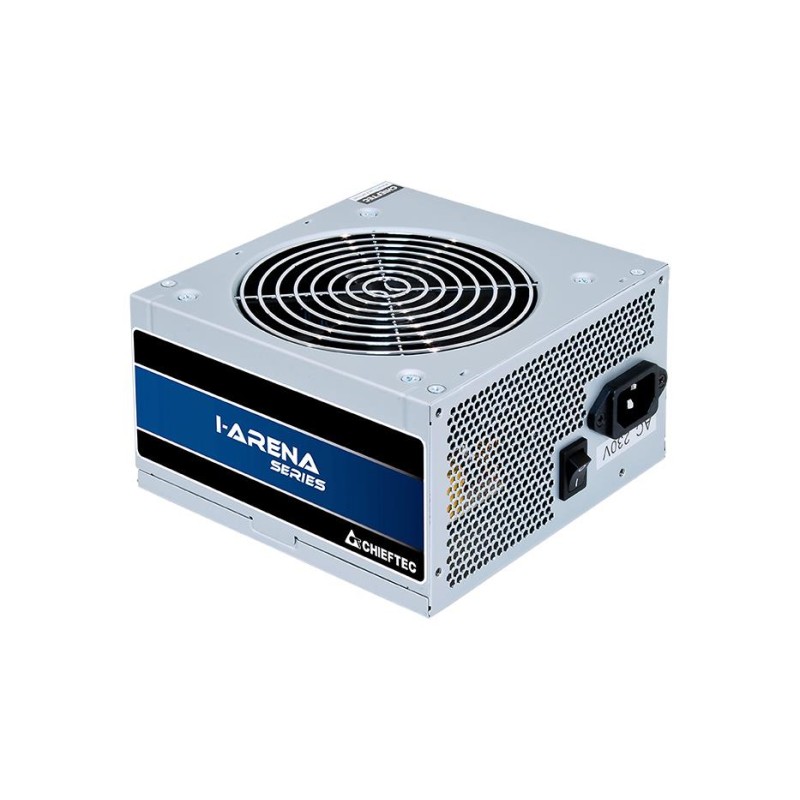

Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Coo
Weight & dimensions (Width)
140 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
87 mm
Packaging data (Package type)
Box
Logistics data (Harmonized System (HS) code)
84733020
Certificates (Compliance certificates)
RoHS
Design (Product colour)
Silver
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
200 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Packaging data (Manual)
Yes
Power (Input current)
4 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
456 W
Power (Combined power (+3.3V))
110 W
Power (Combined power (+5V))
110 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+3.3V))
18 A
Power (Max output current (+5V))
17 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over voltage/Overload/Short circuit/Under voltage
Power (Total power)
500 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
5
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Performance (Power supply unit (PSU) form factor)
PS/2
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Power (Efficiency)
85 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
1
Design (Fan location)
Top
Power (Power factor)
0.9
Power (Max output current (+12V1))
38 A
Other features (Warranty card)
Yes
Eriviited
ean13
4710713233645
MPN
1207580
