Kirjeldus

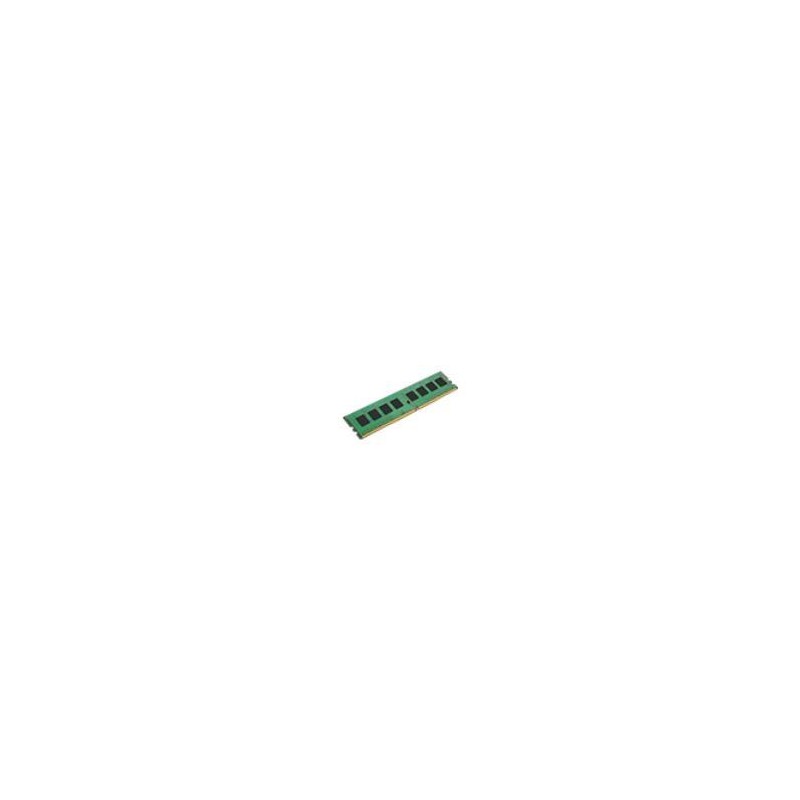

This document describes ValueRAM's KVR32N22S6/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Üldine informatsioon
Tootekood
KVR32N22S6/8
Tarneaeg 2-5 tööpäeva.
15 Tooted
Lisainfo
Müüja koduleht
https://www.kingston.com/en
Garantija
X
Category Code
MEM
Unit Box Height
0.008
Unit Box Length
0.16
Unit Box Width
0.045
Units per Shipping Box
1
Unit Calculated Volume
5.76E-05 cubm
Unit Calculated Weight
0.03 kg
Summary
Kingston Technology ValueRAM . Component for: PC/Server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22
Weight & dimensions (Width)
133.35 mm
Weight & dimensions (Height)
31.25 mm
Logistics data (Harmonized System (HS) code)
84733020
Operational conditions (Operating temperature (T-T))
0 - 85 C
Operational conditions (Storage temperature (T-T))
-55 - 100 C
Technical details (Compliance certificates)
RoHS
Sustainability (Doesn't contain)
Halogen
Features (Buffered memory type)
Unregistered (unbuffered)
Features (CAS latency)
22
Features (Component for)
PC/Server
Features (ECC)
No
Features (Internal memory)
8 GB
Features (Internal memory type)
DDR4
Features (Memory form factor)
288-pin DIMM
Features (Memory layout (modules x size))
1 x 8 GB
Features (Memory voltage)
1.2 V
Features (JEDEC standard)
Yes
Features (Memory data transfer rate)
3200 MT/s
Features (SPD profile)
Yes
Features (Refresh row cycle time)
350 ns
Features (Row active time)
32 ns
Features (Row cycle time)
45.75 ns
Eriviited
ean13
740617310870
MPN
1314147
