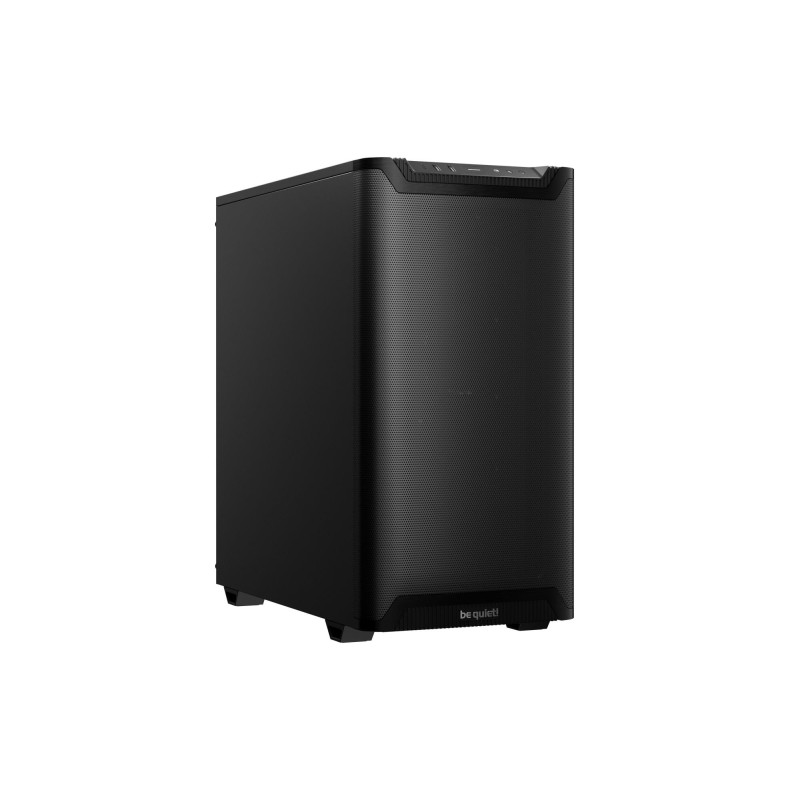

Comfortably compact Pure Base 501 Airflow Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
REDUCED TO THE MAX Classic appearance Without any distractions, Pure Base 501 Airflow Black is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
PERFECT CASE FAN Fan blades optimized for high airflow With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE Generous space for high-end hardware Despite its compact dimensions, Pure Base 501 Airflow Black offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
WAY UP! With rotatable PCIe slots Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT With smart cable routing options As a compact PC case, Pure Base 501 Airflow Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME State-of-the-art technology for your system A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
High airflow intake front panel and top cover for maximum performance
2 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
Generous space for high-end graphics cards and large coolers, despite compact footprint
Optional vertical graphics card installation
Water cooling ready for radiators up to 360mm
USB 3.2 Gen. 2 Type C for best connectivity
Comfortable cable management with clever cable routing design
front 1x Pure Wings 3 140mm PWM White rear 1x Pure Wings 3 140mm PWM White
Garantija
24
Mudel
BG074
Category Code
CAS
Unit Box Height
0.51
Unit Box Length
0.52
Unit Box Width
0.29
Units per Shipping Box
1
Unit Calculated Volume
0.07691 cubm
Unit Calculated Weight
8.45 kg
CnCode
84733080
Summary
be quiet! PURE BASE 501 Airflow Black. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Su
Weight & dimensions (Width)
231 mm
Weight & dimensions (Depth)
450 mm
Weight & dimensions (Height)
463 mm
Weight & dimensions (Weight)
6800 g
Packaging data (Package width)
292 mm
Packaging data (Package depth)
518 mm
Packaging data (Package height)
503 mm
Packaging data (Package weight)
8000 g
Design (Product colour)
Black
Ports & interfaces (Audio input)
Yes
Technical details (Compliance certificates)
CE/REACH/RoHS
Ports & interfaces (Audio output)
Yes
Design (Form factor)
Midi Tower
Design (Type)
PC
Design (Anti-dust filter)
Yes
Design (Material)
Acrylonitrile butadiene styrene (ABS)/Steel
Design (Maximum CPU cooler height)
178 mm
Design (Maximum PSU length)
180 mm
Design (Number of 2.5" bays)
5
Design (Number of 3.5" bays)
2
Design (Number of expansion slots)
7
Design (On/off button)
Yes
Design (Reset button)
Yes
Design (Supported motherboard form factors)
ATX/micro ATX/Mini-ITX
Power supply (Power supply included)
No
Power supply (Supported power supply form factors)
ATX/PS2
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
2
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
