1xNumber of displays supported | Maximum weight capacity (per display) 125 kg | Maximum weight capacity 125 kg | Minimum screen size 42 " | Maximum screen size 86 " | Minimum VESA mount 100 x 100 mm | Maximum VESA mount 600 x 400 mm | Mounting type Wall | Height adjustment Yes | Tilt adjustment Yes | Tilt angle range -15 - 15 ° | Housing material Steel | Colour Black | Weight 5.5 kg

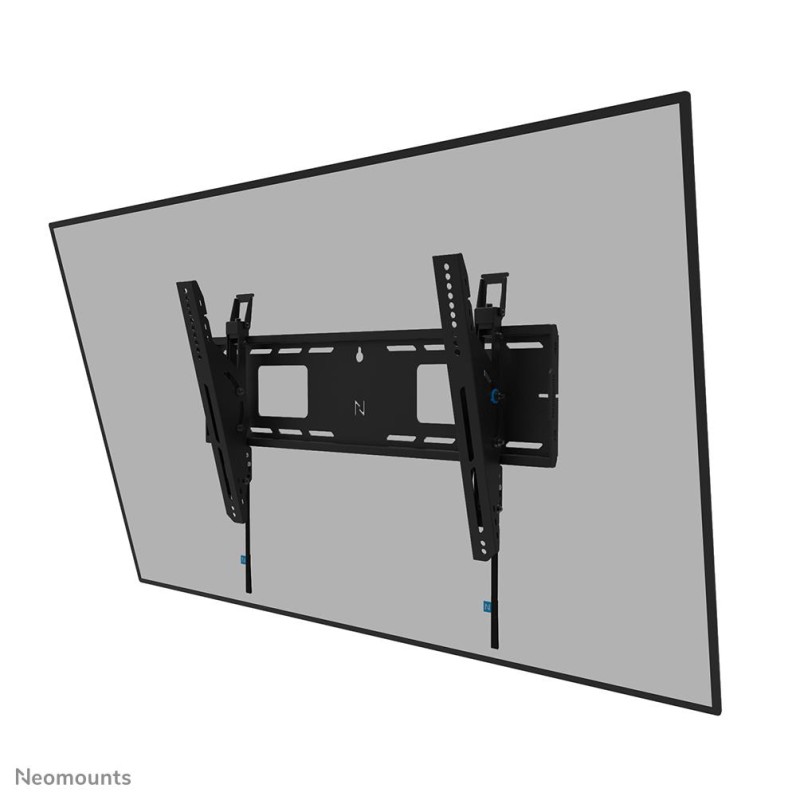

The Neomounts WL35-750BL16 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 86" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.
The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.
The WL35-750BL16 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.
For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
Neomounts WL35-750BL16 Heavy duty wall mount 42-86" - tilt - lockable - fast installation - T V. Maximum weight capacity: 125 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount:
Weight & dimensions (Width)
686 mm
Weight & dimensions (Depth)
93 mm
Weight & dimensions (Height)
430 mm
Weight & dimensions (Weight)
5500 g
Packaging data (Package width)
728 mm
Packaging data (Package depth)
102 mm
Packaging data (Package height)
209 mm
Packaging data (Package weight)
6900 g
Logistics data (Harmonized System (HS) code)
7326909890
Logistics data (Master (outer) case gross weight)
21500 g
Logistics data (Master (outer) case height)
324 mm
Logistics data (Master (outer) case length)
227 mm
Logistics data (Master (outer) case width)
746 mm
Logistics data (Products per master (outer) case)
3 pc(s)
Design (Product colour)
Black
Design (Housing material)
Steel
Ergonomics (Height adjustment)
Yes
Ergonomics (Tilt adjustment)
Yes
Ergonomics (Tilt angle range)
-15 - 15
Ergonomics (Cable management)
Yes
Logistics data (Products per pallet (EU))
60 pc(s)
Logistics data (Master (outer) case net weight)
16500 g
Mounting (Maximum screen size)
86 "
Mounting (Maximum VESA mount)
600 x 400 mm
Mounting (Maximum weight capacity)
125 kg
Mounting (Maximum weight capacity (per display))
125 kg
Mounting (Minimum screen size)
42 "
Mounting (Minimum VESA mount)
100 x 100 mm
Mounting (Mounting type)
Wall
Mounting (Number of displays supported)
1
Mounting (Panel mounting interface)
100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm
