Kirjeldus

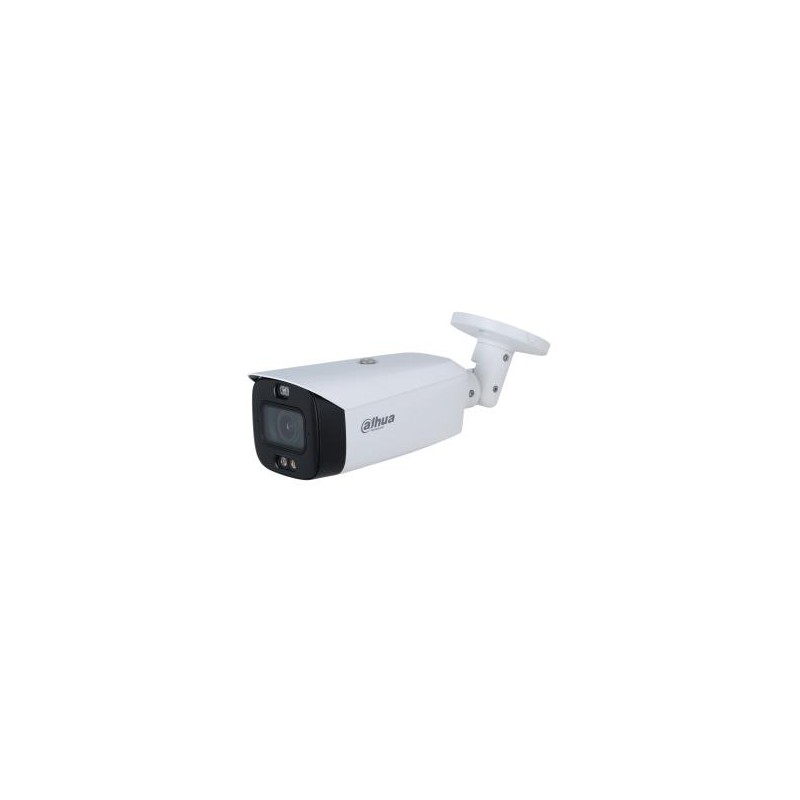

8MP Smart Dual Light Active Deterrence Vari-focal Bullet WizSense Network Camera
8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image Outputs max. 8 MP (3840 × 2160)@25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker 12 VDC/PoE power supply IP67 protection Sound and light alarm (red and blue lights) SMD 3.0 One-click arming/disarming through alarm input
Üldine informatsioon
Tootekood
IPC-HFW3849T1ZASPV27135S5
Tarneaeg 2-5 tööpäeva.
6 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HFW3849T1-ZAS-PV S5
Garantija
36
Mudel
IPC-HFW3849T1ZASPV27135S5
Category Code
FNC
Unit Box Height
0.14
Unit Box Length
0.34
Unit Box Width
0.15
Units per Shipping Box
1
Unit Calculated Volume
0.00714 cubm
Unit Calculated Weight
1.3 kg
Summary
Dahua Technology WizSense IPC-HFW3849T1-ZAS-PV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.004 lx, Angle of rotat
Weight & dimensions (Width)
94.4 mm
Weight & dimensions (Height)
84.7 mm
Weight & dimensions (Weight)
1050 g
Packaging data (Package weight)
1350 g
Performance (Certification)
CE-LVD: EN 62368-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC B UL/CUL:UL62368-1 CAN/CSA C22.2 62368-1-14
Operational conditions (Operating temperature (T-T))
-30 - 60 C
Operational conditions (Storage relative humidity (H-H))
0 - 95 %
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
7.9 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal/Plastic
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Bullet
Weight & dimensions (Length)
288.4 mm
Camera (Camera shutter speed)
1/3 - 1/100,000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/wall
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
130
Camera (Lens viewing angle, horizontal)
108
Camera (Lens viewing angle, vertical)
56
Image sensor (Optical sensor size)
1/2.8 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
50 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
3840 x 2160 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
8 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Intrusion/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Focal length range)
2.7 mm
Audio (Audio input channels)
1.0 channels
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0.004 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1.2
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264+/H.264B/H.265/H.265+/M-JPEG
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 90
Camera (White balance)
Auto/Manual/Natural/Outdoor/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Video (Video streaming)
Yes
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP
Storage (Internal memory)
1000 MB
Storage (ROM capacity)
128 MB
Management features (Web browser)
Yes
Lens system (Closest focusing distance)
1.5 m
Night vision (Number of illumination LEDs)
2
Network (Number of users)
20 user(s)
Security (Mirror)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
9.8 W
Lens system (Detect distance (tele))
257.4 m
Lens system (Detect distance (wide))
89.9 m
Lens system (Identify distance (tele))
25.7 m
Lens system (Identify distance (wide))
19 m
Lens system (Observe distance (tele))
103 m
Lens system (Observe distance (wide))
36 m
Lens system (Recognize distance (tele))
51.5 m
Lens system (Recognize distance (wide))
18 m
Video (Bit rate)
3 kbps-8192
Network (Networking standards)
IEEE 802.1x/IEEE 802.3af
Eriviited
ean13
6923172502766
MPN
1430664
