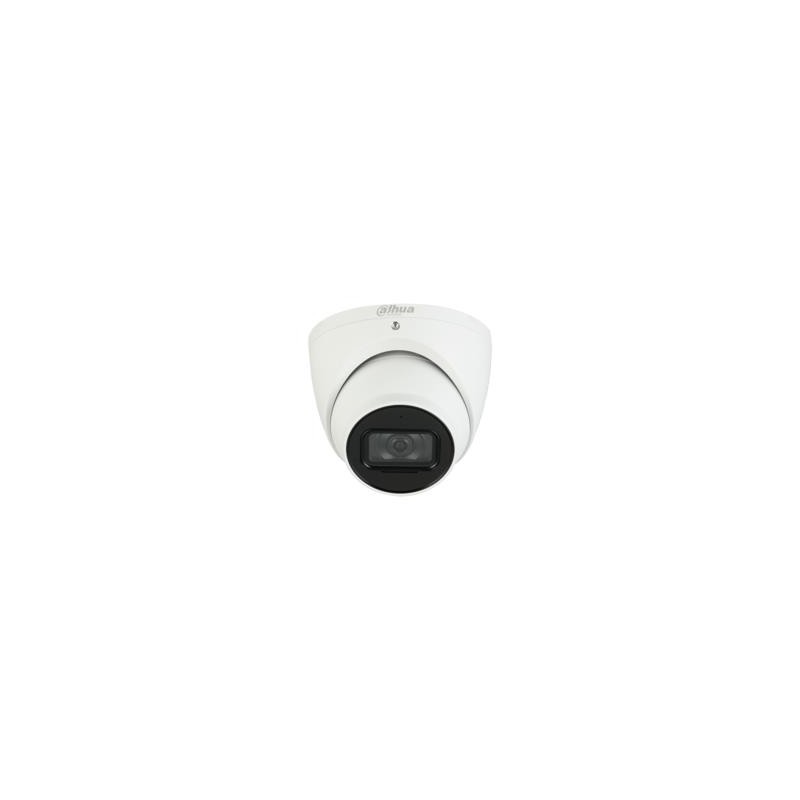

Valvekaamera 5MP IR EYEBALL HDW5541TM-ASE-0280B-S3 DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/products/productDetail/32947

Garantija

36

Mudel

IPC-HDW5541TM-ASE-0280B-S3

Category Code

FNC

Unit Box Height

0.13

Unit Box Length

0.14

Unit Box Width

0.15

Units per Shipping Box

24

Unit Calculated Volume

0.00348 cubm

Unit Calculated Weight

0.8 kg

Summary

Dahua Technology IPC-HDW5541TM-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 360 ,

Weight & dimensions (Height)

93.6 mm

Weight & dimensions (Weight)

550 g

Packaging data (Package weight)

710 g

Performance (Certification)

CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage temperature (T-T))

-30 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

106 mm

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (typical))

7.2 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Dome

Camera (Camera shutter speed)

1/3 s-1/100000 s s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, horizontal)

102

Camera (Lens viewing angle, vertical)

71

Image sensor (Optical sensor size)

1/2.7 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

50 m

Video (Frame rate)

60 fps

Video (Maximum resolution)

2592 x 1944 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

5 MP

Security (Intelligent Video Surveillance (IVS) system features)

Crossing line/Heat map/Intrusion/People counting/Tripwire

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Number of effective pixels (H x V))

2592 x 1944 pixels

Image sensor (Sensor type)

CMOS

Lens system (Fixed focal length)

2.8 mm

Camera (Minimum illumination)

0.005 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.6

Video (Flip & mirror)

Yes

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264

Image sensor (Number of sensors)

1

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 78

Camera (White balance)

Auto/Lamp/Manual/Natural/Outdoor

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2592 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576

Video (Video streaming)

Yes

Network (Quality of Service (QoS) support)

Yes

Network (Streaming method)

Multicast/Unicast

Network (Supported network protocols)

IPv4 IPv6 HTTP HTTPS TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE 802.1x SNMP

Storage (Internal memory)

512 MB

Storage (ROM capacity)

128 MB

Management features (Web browser)

Yes

Night vision (Number of illumination LEDs)

2

Network (Number of users)

20 user(s)

Video (Bit rate)

32 Kbps-8192 Kbps

Audio (Voice codecs)

AAC/G.711a/G.711Mu/G.723/G.726

Network (Networking standards)

IEEE 802.3af

Eriviited

ean13

6923172583468

MPN

1399563
