Kirjeldus

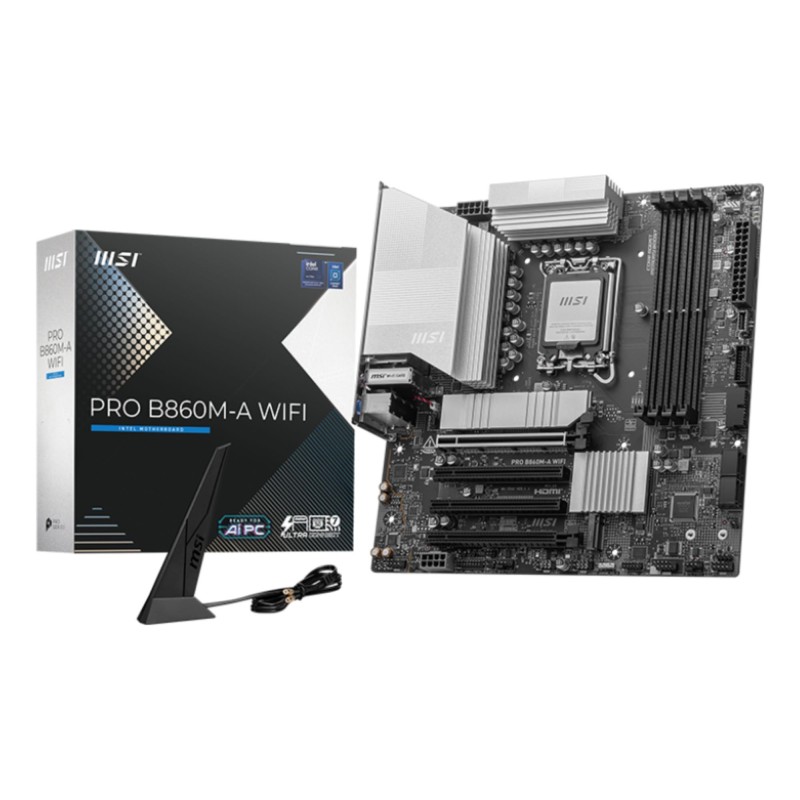

PRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC) Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2 Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Üldine informatsioon
Tootekood
PRO B860M-A WIFI
Tarneaeg 2-5 tööpäeva.
3 Tooted
Lisainfo
Müüja koduleht
https://www.msi.com/Motherboard/PRO-B860M-A-WIFI
Garantija
36
Mudel
PRO B860M-A WIFI
Category Code
MBI
Unit Box Height
0.07
Unit Box Length
0.285
Unit Box Width
0.275
Units per Shipping Box
10
Unit Calculated Volume
0.006715 cubm
Unit Calculated Weight
1.51 kg
CnCode
84733020
Summary
MSI PRO B860M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported
Weight & dimensions (Width)
243.84 mm
Weight & dimensions (Depth)
243.84 mm
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.4
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour)
Black
Processor (Processor manufacturer)
Intel
Network (Top Wi-Fi standard)
Wi-Fi 7 (802.11be)
Features (Component for)
PC
Memory (Maximum internal memory)
256 GB
Memory (Memory channels)
Dual-channel
Graphics (On-board graphics card)
No
Expansion slots (PCI Express x16 (Gen 5.x) slots)
1
Processor (Compatible processor series)
Intel Core Ultra (Series 2)
Processor (Processor socket)
LGA 1851 (Socket V1)
Processor (Supported processor sockets)
LGA 1851
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speed (max))
8800 MHz
Memory (Supported memory clock speeds)
4800/6400/8800 MHz
Memory (Supported memory types)
DDR5-SDRAM
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
7
Storage controllers (Supported storage drive interfaces)
M.2,Micro SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Internal I/O (CPU fan connector)
Yes
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (USB 2.0 connectors)
4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
4
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
1
Network (Ethernet interface type)
5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel B860
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
3
Expansion slots (PCI Express x16 (Gen 4.x) slots)
3
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
1
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
2
Features (Audio chip)
Realtek ALC897
Processor (Maximum internal memory supported by processor)
256 GB
Internal I/O (Total number of SATA connectors)
4
BIOS (ACPI version)
6.5
BIOS (System Management BIOS (SMBIOS) version)
3.7
Memory (ECC сompatibility)
Non-ECC
Internal I/O (Number of CPU fan connectors)
1
Internal I/O (Number of RGB LED pin headers)
3
Internal I/O (Number of water pump connectors)
1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)
1
Expansion slots (1st M.2 highest PCI Express generation)
5.0
Expansion slots (1st M.2 largest key size)
2280
Expansion slots (2nd M.2 highest PCI Express generation)
4.0
Expansion slots (2nd M.2 largest key size)
2280
Expansion slots (3rd M.2 highest PCI Express generation)
4.0
Expansion slots (3rd M.2 largest key size)
2280
Eriviited
ean13
4711377286565
MPN
1431773
