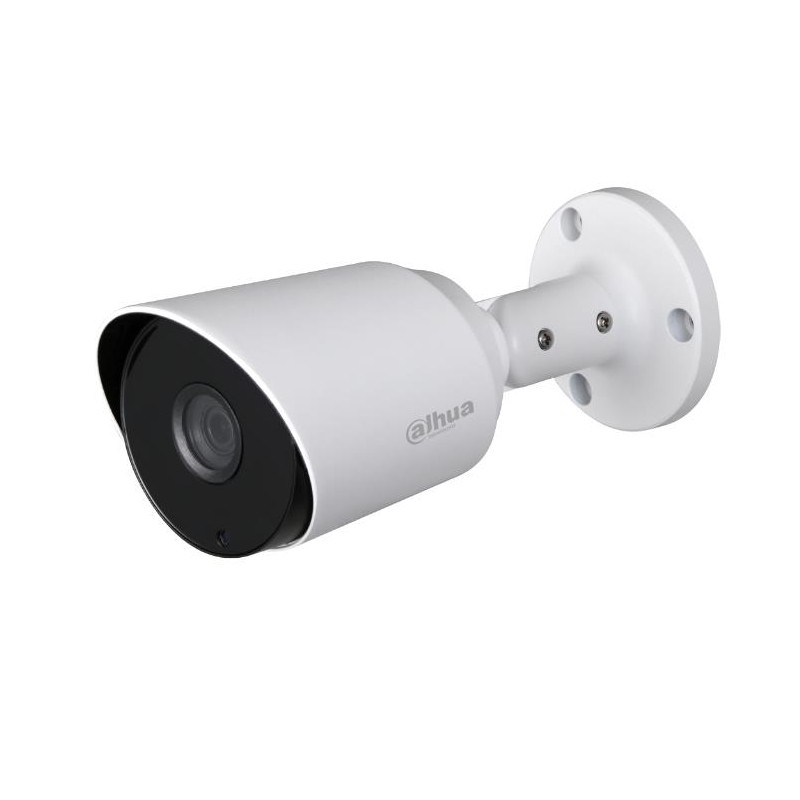

Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
Max 30fps@1080P HD and SD output switchable 3.6mm fixed lens (2.8mm, 6mm optional) Max. IR length 20m, Smart IR IP67, DC12V
Üldine informatsioon
Tootekood
HAC-HFW1200T-0280B-S6
Tarneaeg 2-5 tööpäeva.
2 Tooted
Lisainfo
Müüja koduleht
https://www.dahuatech.com/
Garantija
36
Mudel
HAC-HFW1200T-0280B-S6DAHUA
Category Code
HSC
Unit Box Height
0.092
Unit Box Length
0.205
Unit Box Width
0.092
Units per Shipping Box
20
Unit Calculated Volume
0.002125 cubm
Unit Calculated Weight
0.52 kg
Summary
Dahua Technology HD-CVI HAC-HFW1200T. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360 , Lens viewing angle,
Weight & dimensions (Width)
72.4 mm
Weight & dimensions (Depth)
176 mm
Weight & dimensions (Height)
72.5 mm
Weight & dimensions (Weight)
340 g
Packaging data (Package weight)
420 g
Performance (Certification)
CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
Network (Bluetooth)
No
Network (Ethernet LAN)
No
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
3.2 W
Design (Housing material)
Aluminium
Design (Form factor)
Bullet
Camera (Camera shutter speed)
1/30 - 1/100000 s
Power (Power source type)
DC
Performance (Languages support)
English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish
Performance (Wide Dynamic Range (WDR))
Yes
Design (Protection features)
Dust resistant/Waterproof
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/wall
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Infrared (IR) cut-off filter)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
CCTV security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, horizontal)
103
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
20 m
Video (Maximum resolution)
1920 x 1080 pixels
Video (Noise reduction)
Yes
Video (Privacy masking)
Yes
Video (Total megapixels)
2 MP
Storage (Built-in HDD)
No
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Number of effective pixels (H x V))
1920 x 1080 pixels
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
2.8 mm
Camera (Minimum illumination)
0 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Fixed focus)
Yes
Lens system (Maximum aperture number)
1.85
Video (Gain control type)
Auto
Security (Video motion detection)
Yes
Image sensor (Number of sensors)
1
Video (Digital Wide Dynamic Range (DWDR))
Yes
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 90
Camera (White balance)
Auto/Manual
Audio (Signal-to-Noise Ratio (SNR))
65 dB
Video (Smart IR)
Yes
Lens system (Closest focusing distance)
0.6 m
Night vision (Number of illumination LEDs)
12
Video (Supported video modes)
1080p/720p
Performance (Number of languages)
11
Ports & interfaces (BNC output ports)
1
Eriviited
ean13
6923172593061
MPN
1418124
